Driver Memory Seat Module C341c

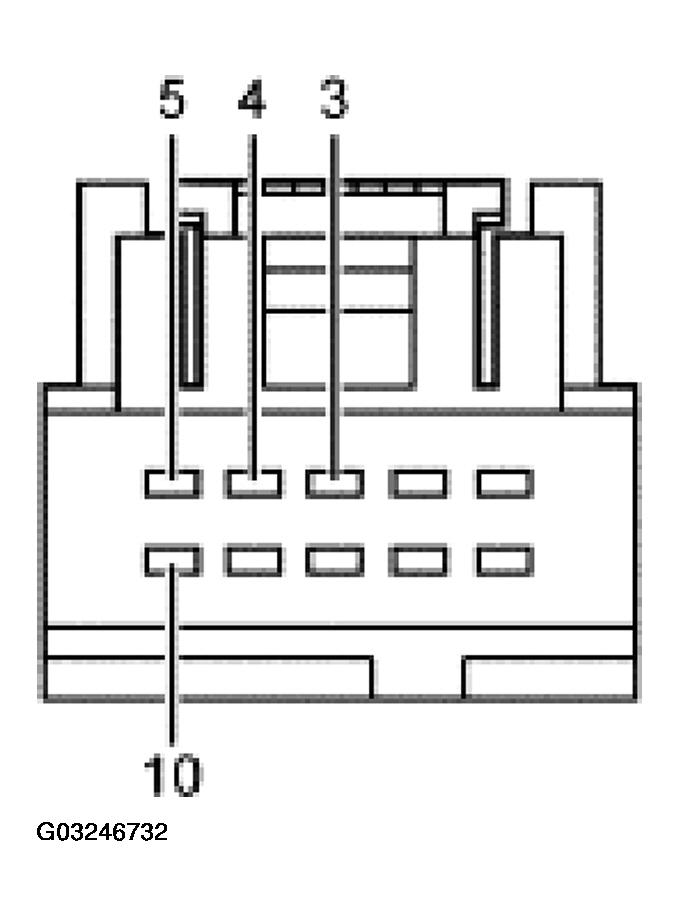

DRIVER MEMORY SEAT MODULE C341C PIN CIRCUIT REFERENCE
| Pin Number(s) | Circuit Designation/Description | Normal Condition/Measurement |
|---|---|---|
| 3 | CKT 268 (BK/OG) Position 2 input circuit from memory set switch | Continuity to memory set switch, less than 5 ohms. |
| 4 | CKT 267 (BN/LG) Position 1 input circuit from memory set switch | Continuity to memory set switch, less than 5 ohms. |
| 5 | CKT 270 (BN/OG) Memory set input circuit from memory set switch | Continuity to memory set switch, less than 5 ohms. |
| 10 | CKT 272 (WH/OG) Illumination output circuit from driver seat module (DSM) to memory set switch | Voltage from DSM to memory set switch |
