Transaxle Support Insulator: Installation

  1. Install the engine and transaxle support insulator and bolts.

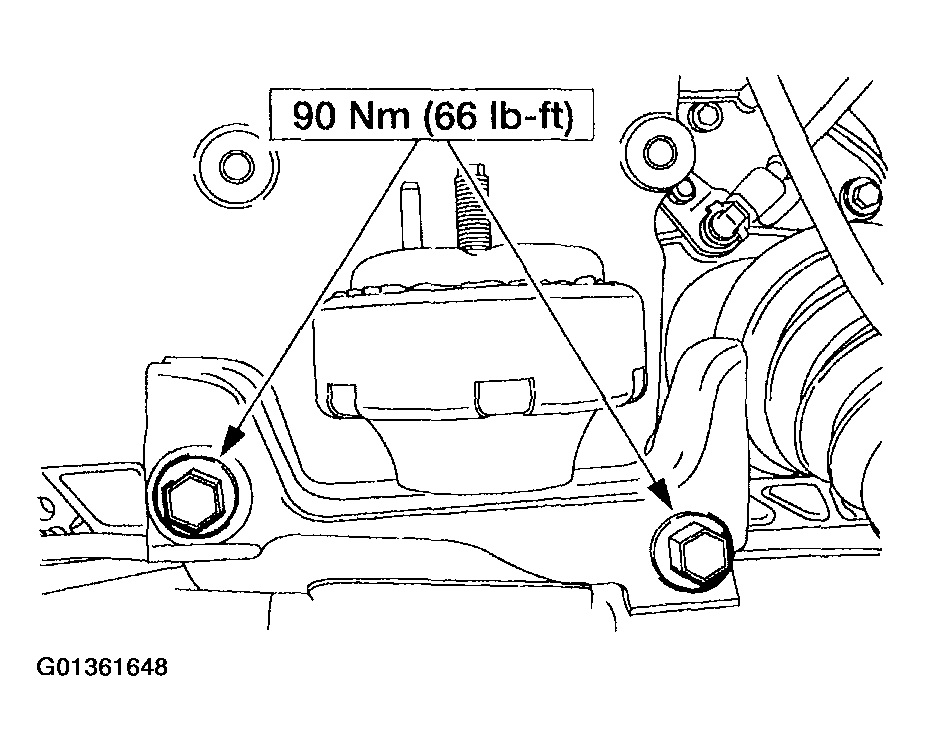

    Fig 1: Installing Engine And Transaxle Support Insulator And Bolts
    G01361648Courtesy of FORD MOTOR CO.
  2. Install the engine and transaxle upper support bracket bolts and bracket.

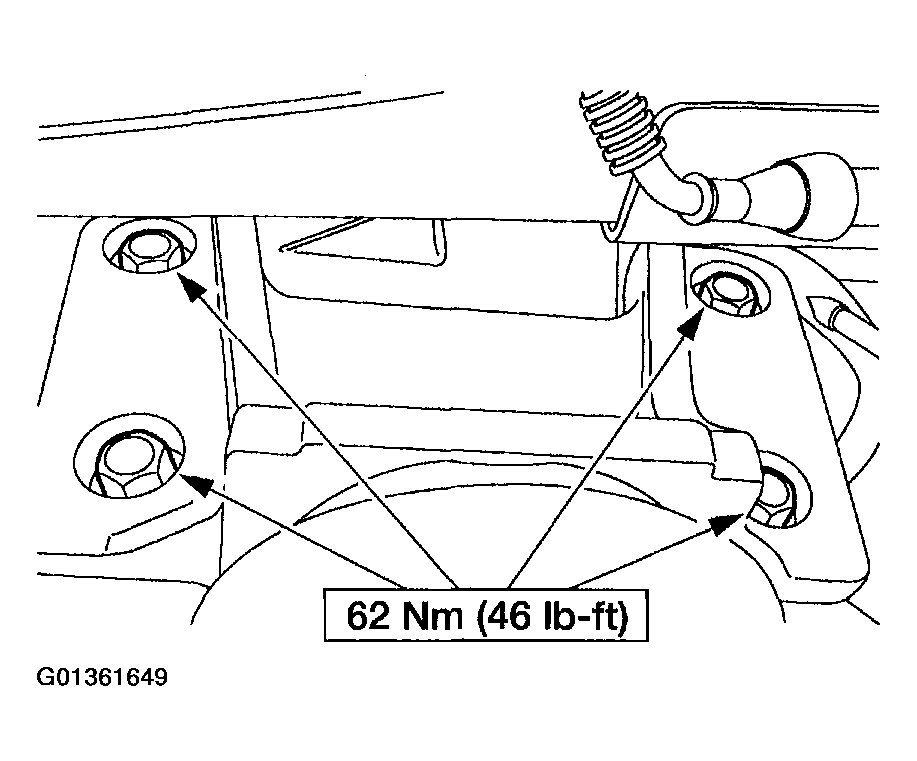

    Fig 2: Installing Engine And Transaxle Upper Support Bracket Bolts And Bracket
    G01361649Courtesy of FORD MOTOR CO.
  3. Install the engine and transaxle upper support insulator nut.
    Fig 3: Installing Engine And Transaxle Upper Support Insulator Nut
    G01361650Courtesy of FORD MOTOR CO.
  4. Remove the high-lift transmission jack.
  5. Install the LH wheel and tire.
  6. Lower the vehicle.
