Ignition Lock: Service and Repair

IGNITION LOCK CYLINDER







Removal and Installation
1. Disconnect the battery.
2. Remove the steering column cover.

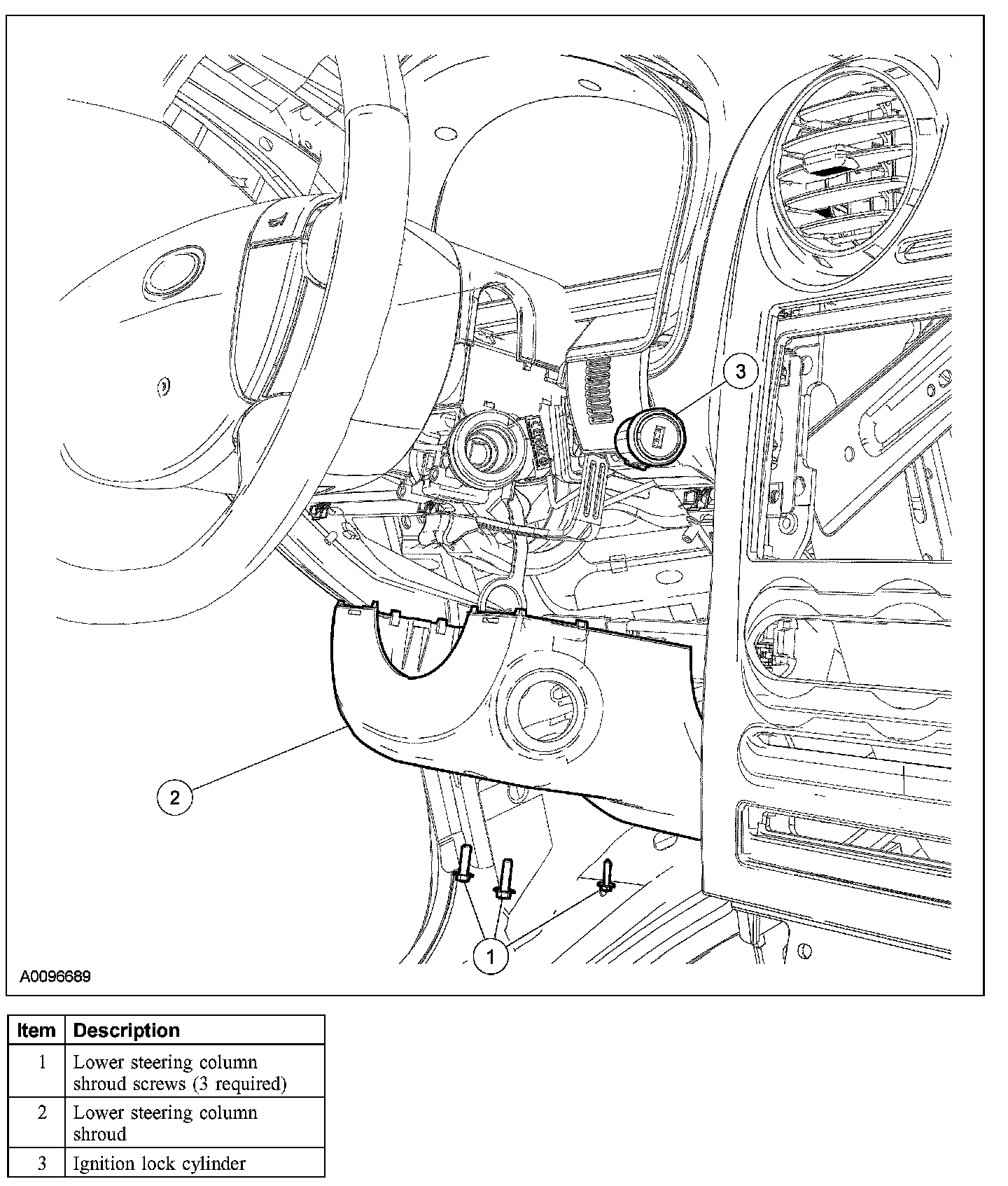

3. Remove the 3 lower steering column shroud screws.
4. Remove the lower steering column shroud.
5. Insert the ignition key and turn it to the ACC position.
6. Using a suitable tool, press the release pin and remove the ignition cylinder.
7. To install, reverse the removal procedure.
