Connector Circuit Reference

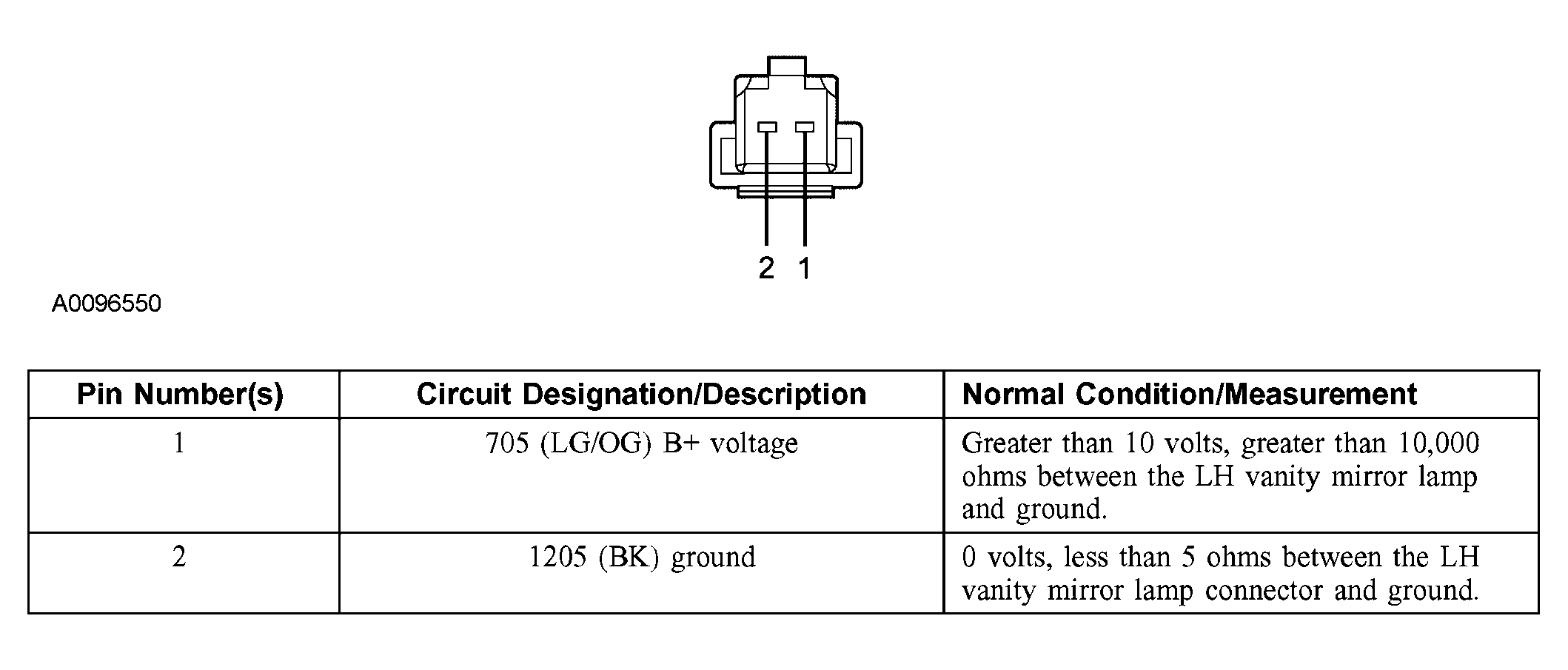

Fig 1: LH Vanity Mirror Lamp C907 Connector Circuit
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
