Seat - Exploded View, Front

Front Seat Backrest

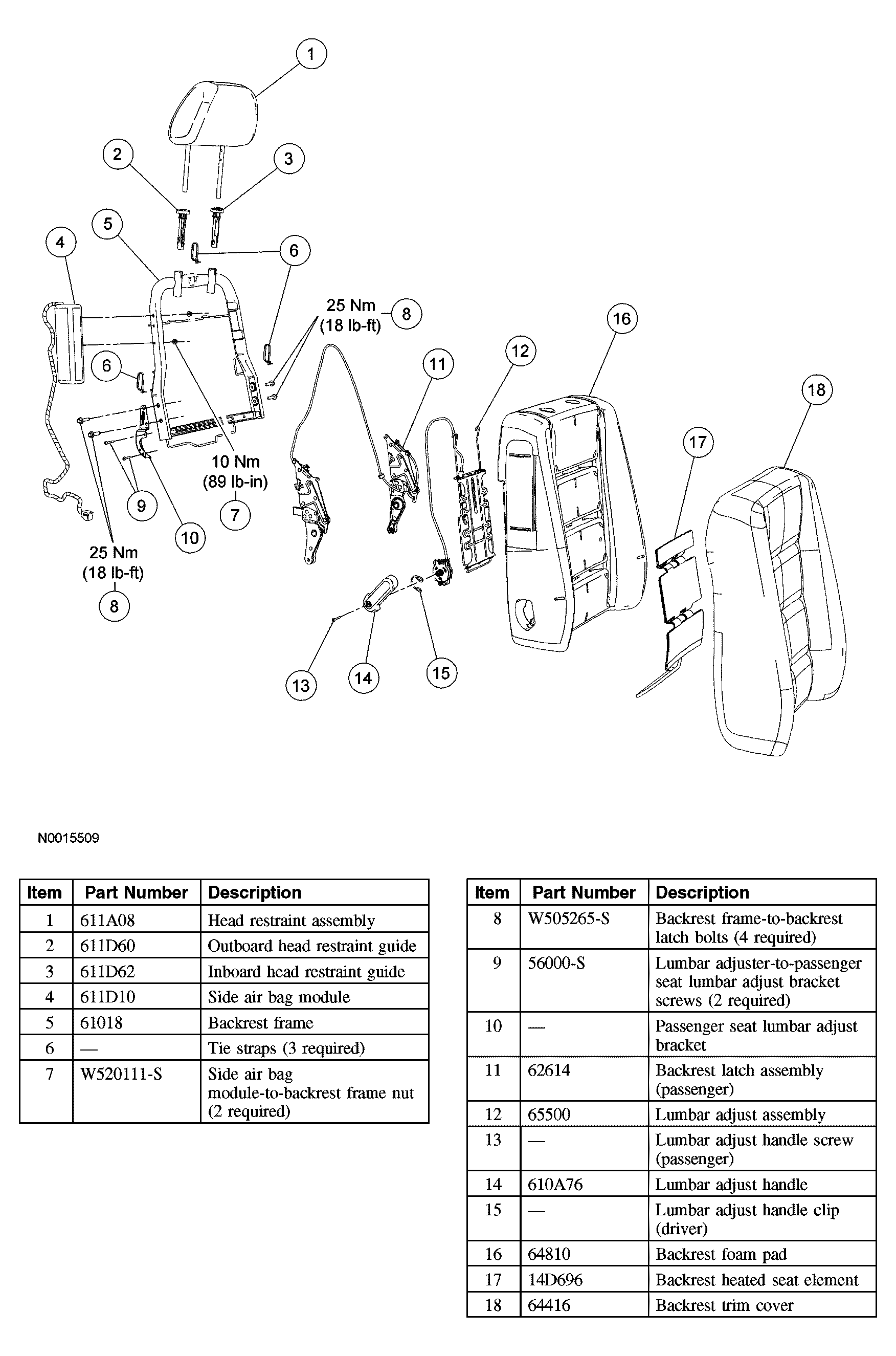

Fig 1: Identifying Passenger Seat Shown, Driver Seat Components Similar

Courtesy of FORD MOTOR CO.

Driver Front Seat Cushion

Fig 2: Identifying Driver Front Seat Cushion Components

Courtesy of FORD MOTOR CO.

Passenger Front Seat Cushion

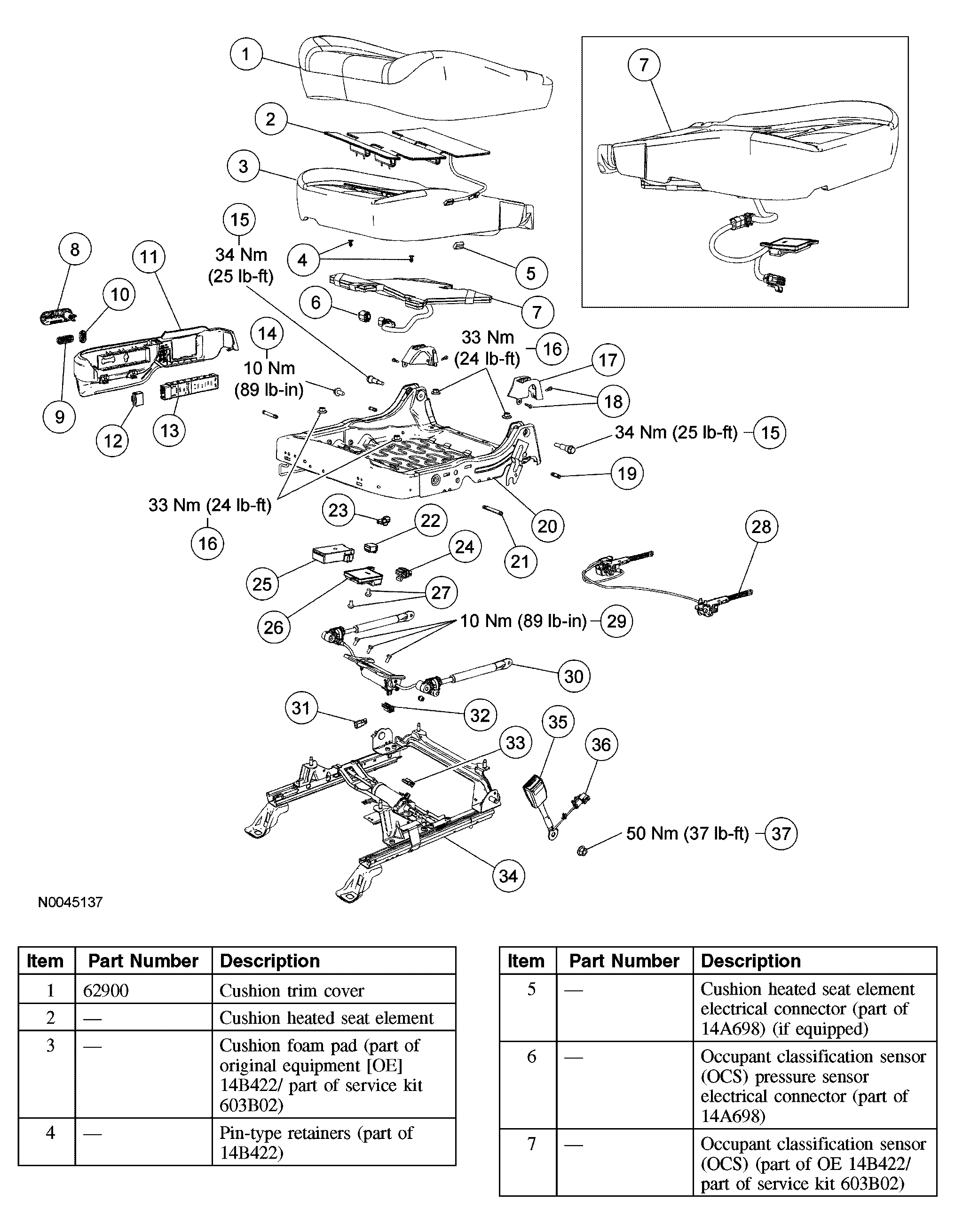

Fig 3: Identifying Passenger Front Seat Cushion Components (1 Of 2)

Courtesy of FORD MOTOR CO.

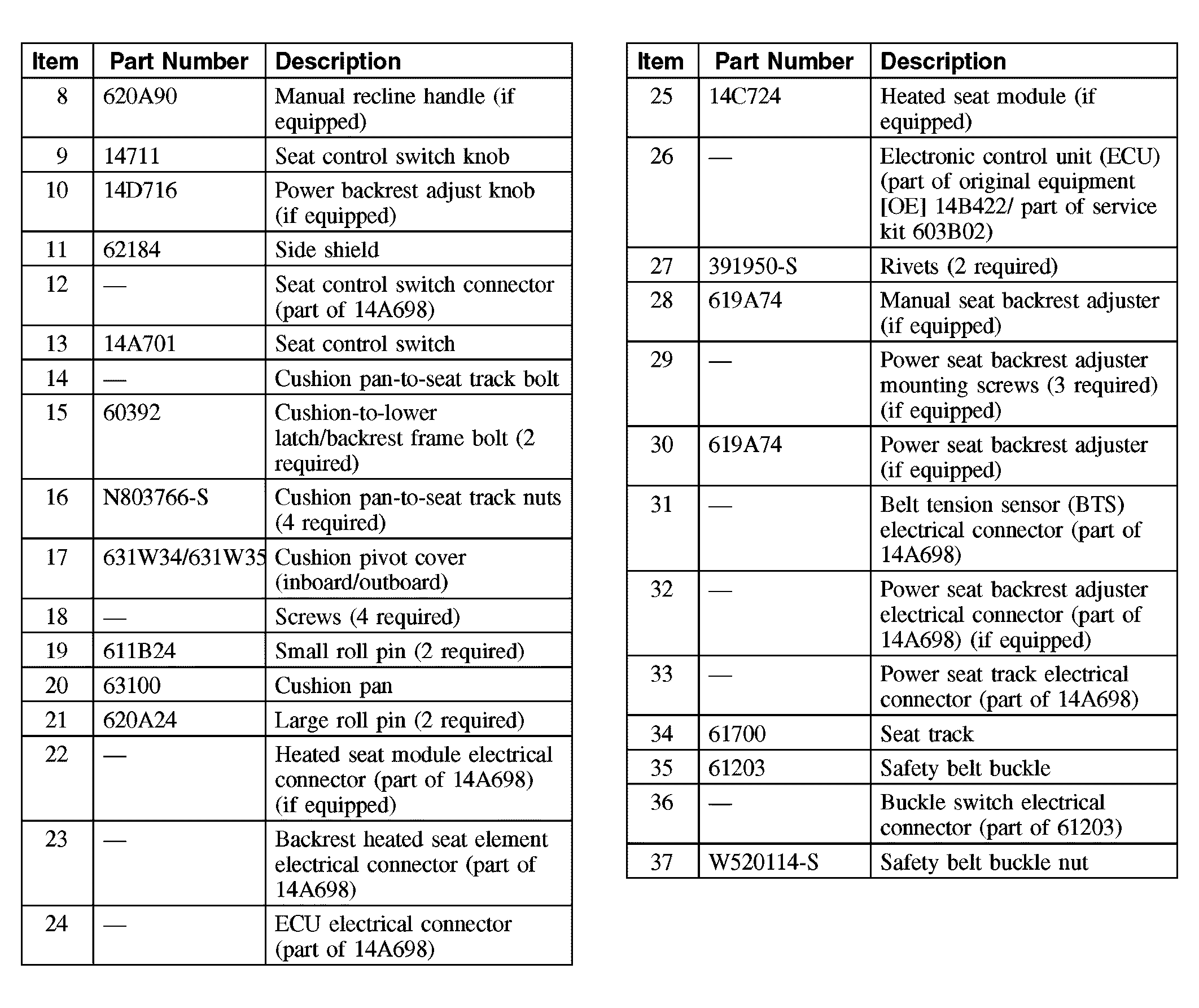

Fig 4: Identifying Passenger Front Seat Cushion Components (2 Of 2)

Courtesy of FORD MOTOR CO.

1. For additional information, refer to the procedures in this article.
