Seat - Exploded View, Third Row
50 Percent Backrest

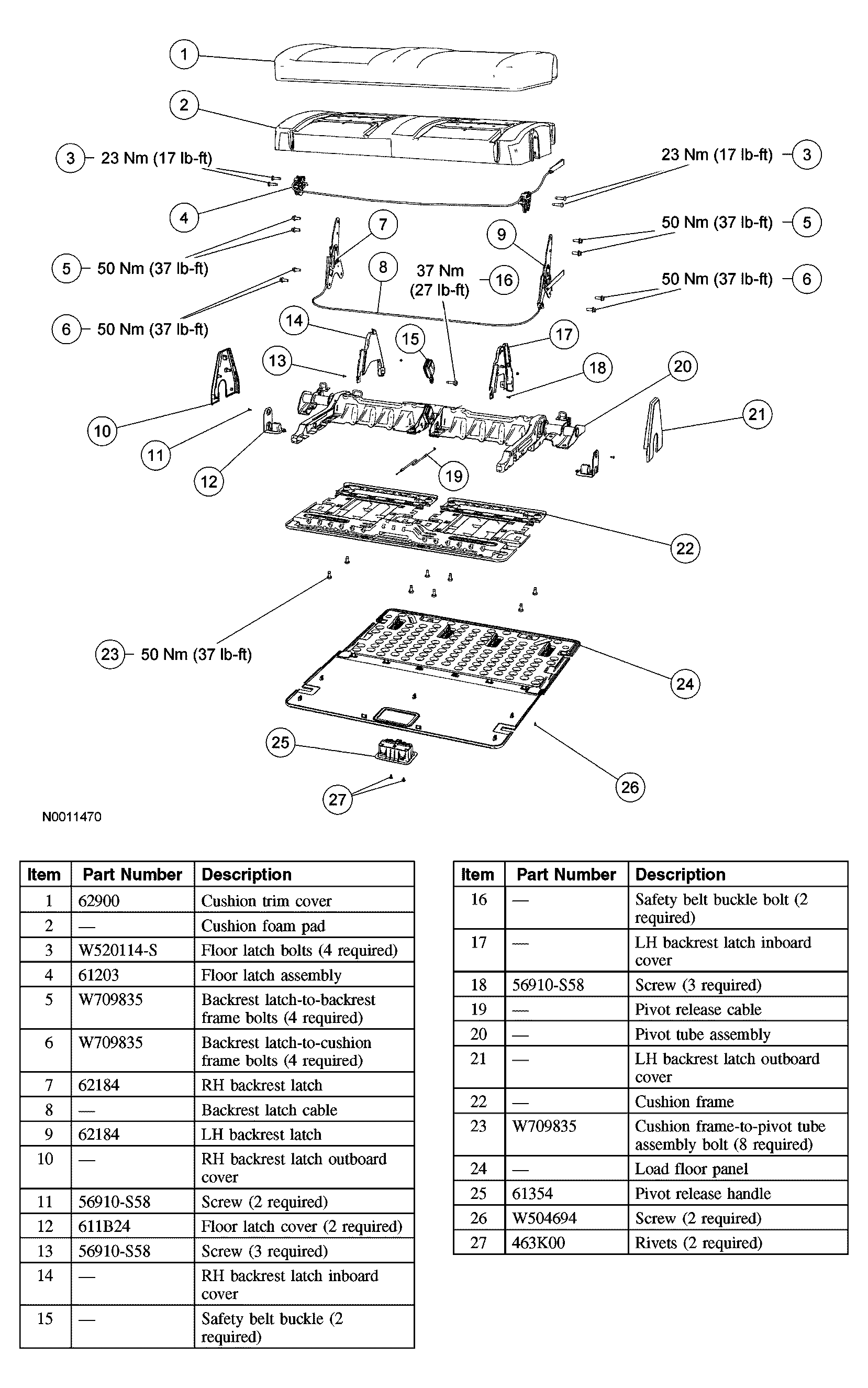

Fig 1: Removing/Installing 50 Percent Backrest
Courtesy of FORD MOTOR CO.
Fig 2: Removing/Installing Bench Seat Backrest
Courtesy of FORD MOTOR CO.
50 Percent Cushion
Fig 3: Removing/Installing 50 Percent Cushion
Courtesy of FORD MOTOR CO.
Fig 4: Removing/Installing Bench Seat Cushion
Courtesy of FORD MOTOR CO.
For additional information, refer to the procedures in this article.
