Battery and Battery Tray - Exploded View: Notes

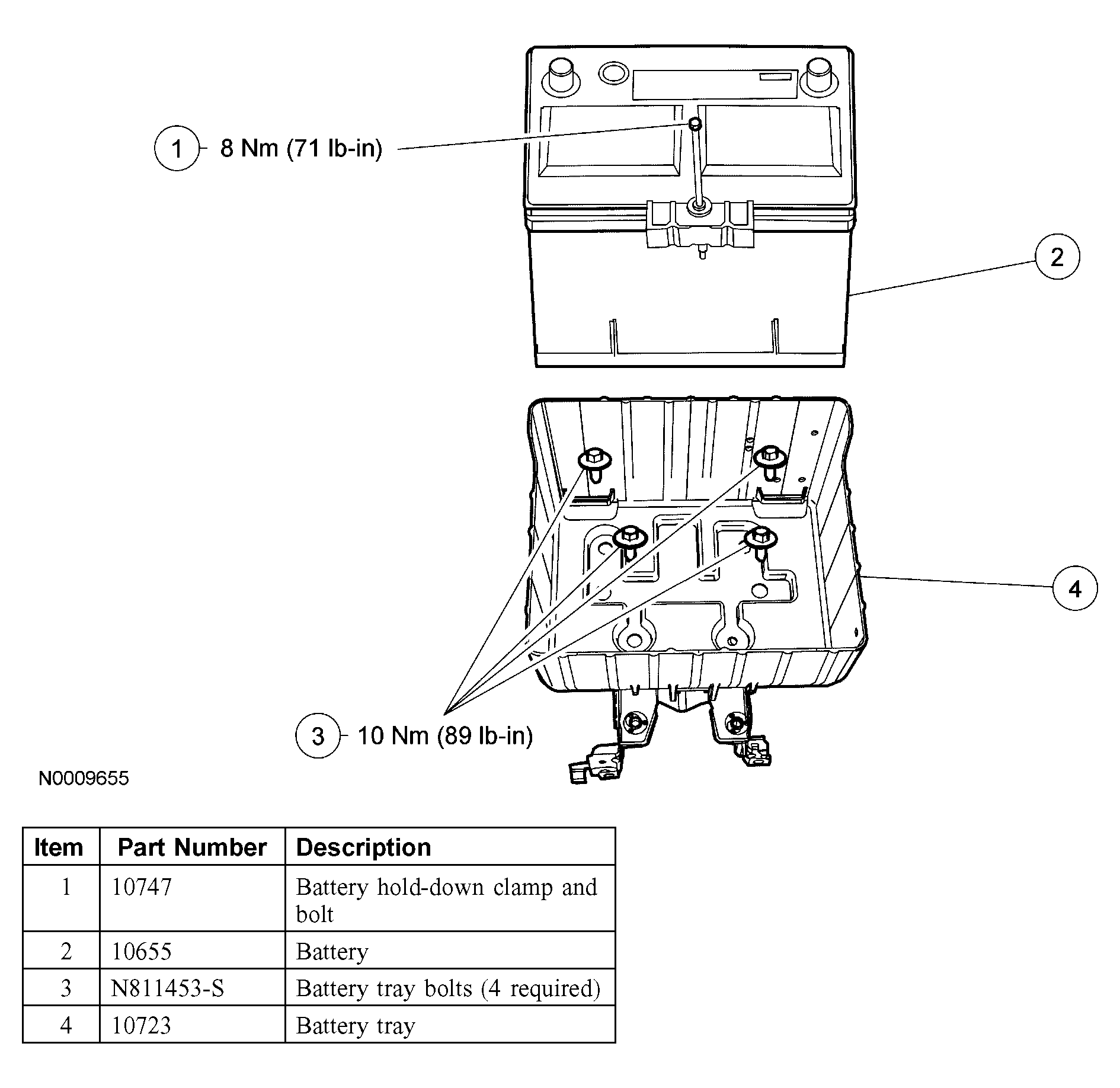

Fig 1: Removing/Installing Battery And Battery Tray
G03992679Courtesy of FORD MOTOR CO.
  1. For additional information, refer to the PROCEDURES .
