Connector Circuit Reference

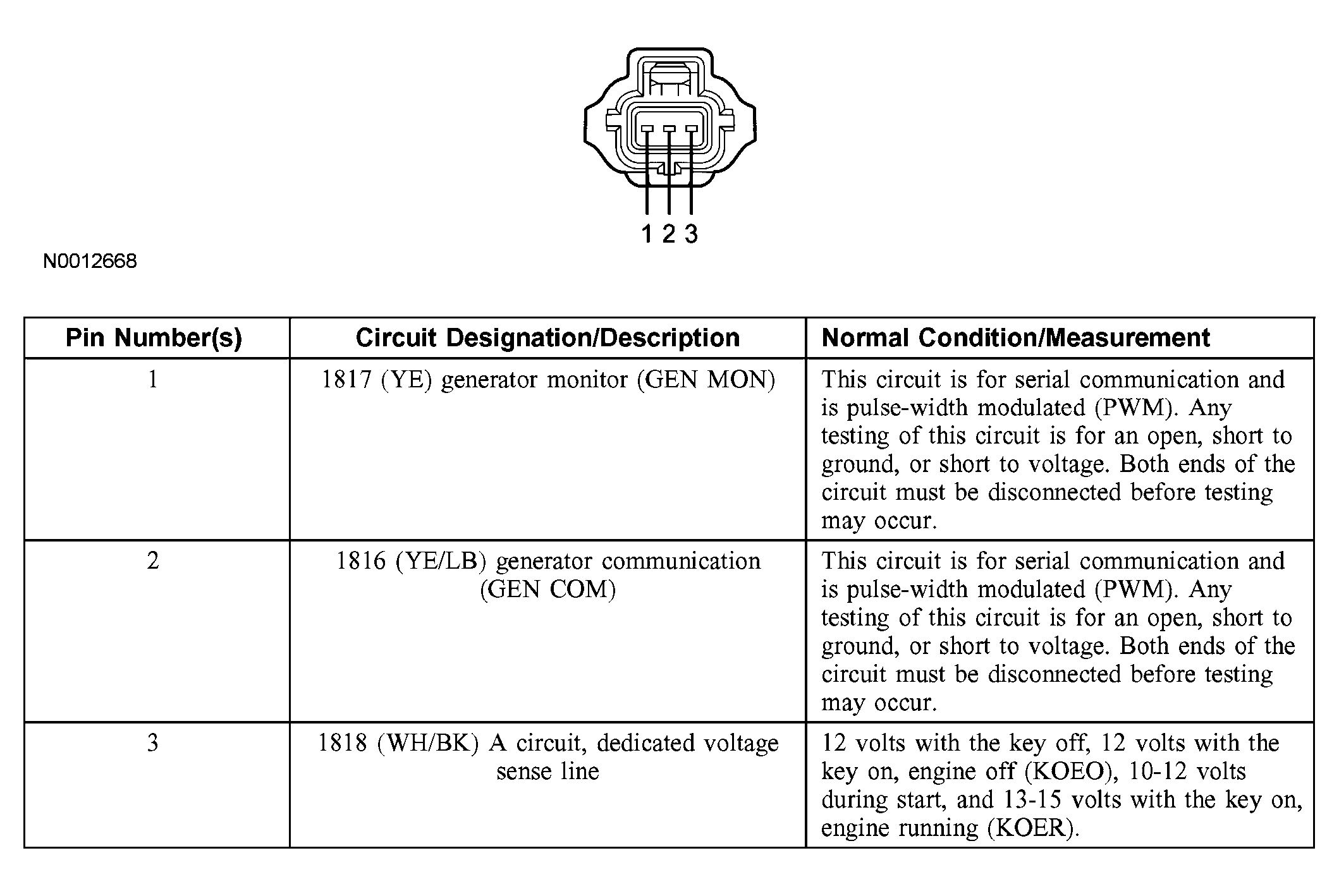

Fig 1: Connector Circuit Reference - Generator C102a

Courtesy of FORD MOTOR CO.

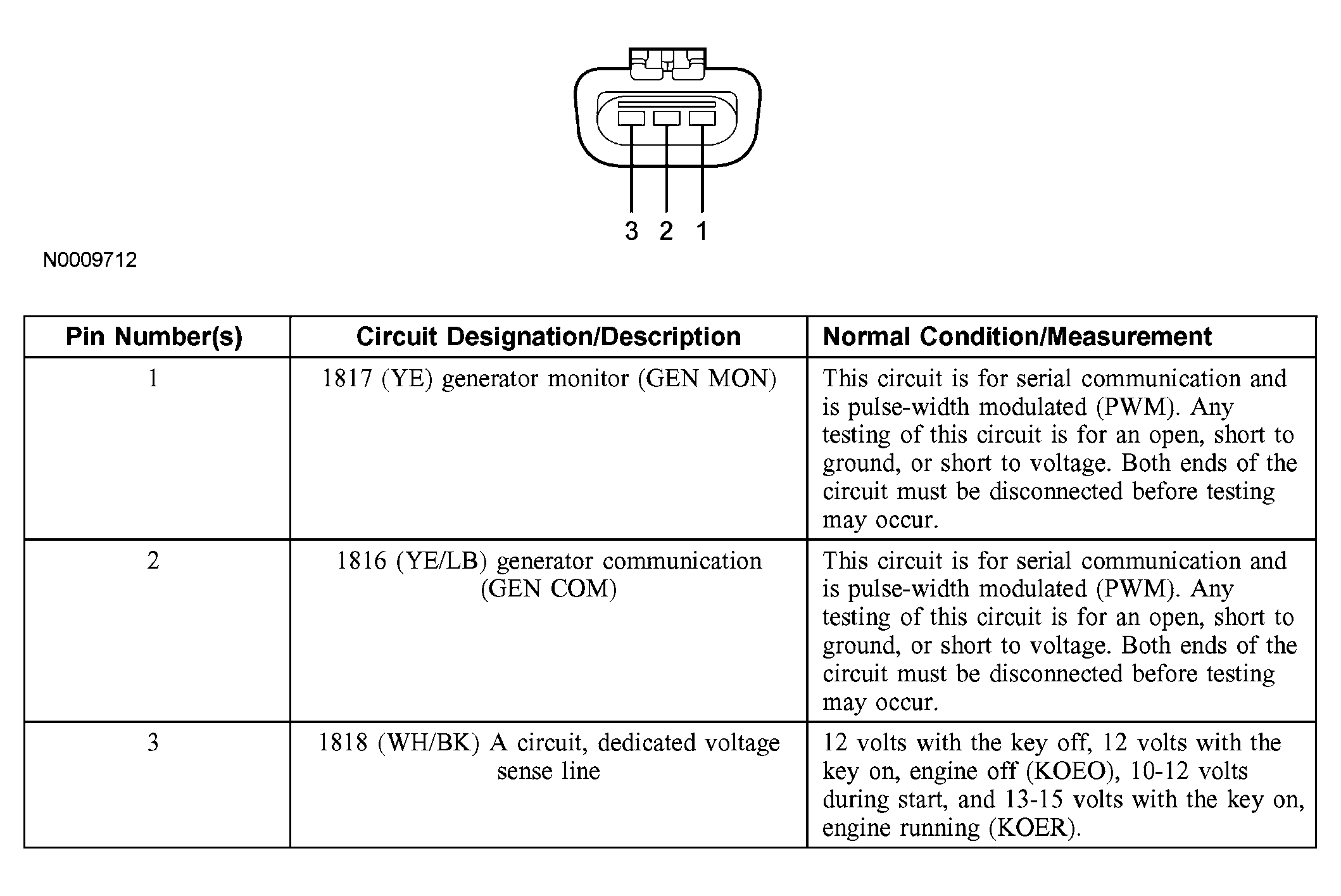

Fig 2: Connector Circuit Reference - Generator C102a (Vehicles Equipped With Auxiliary A/C)

Courtesy of FORD MOTOR CO.

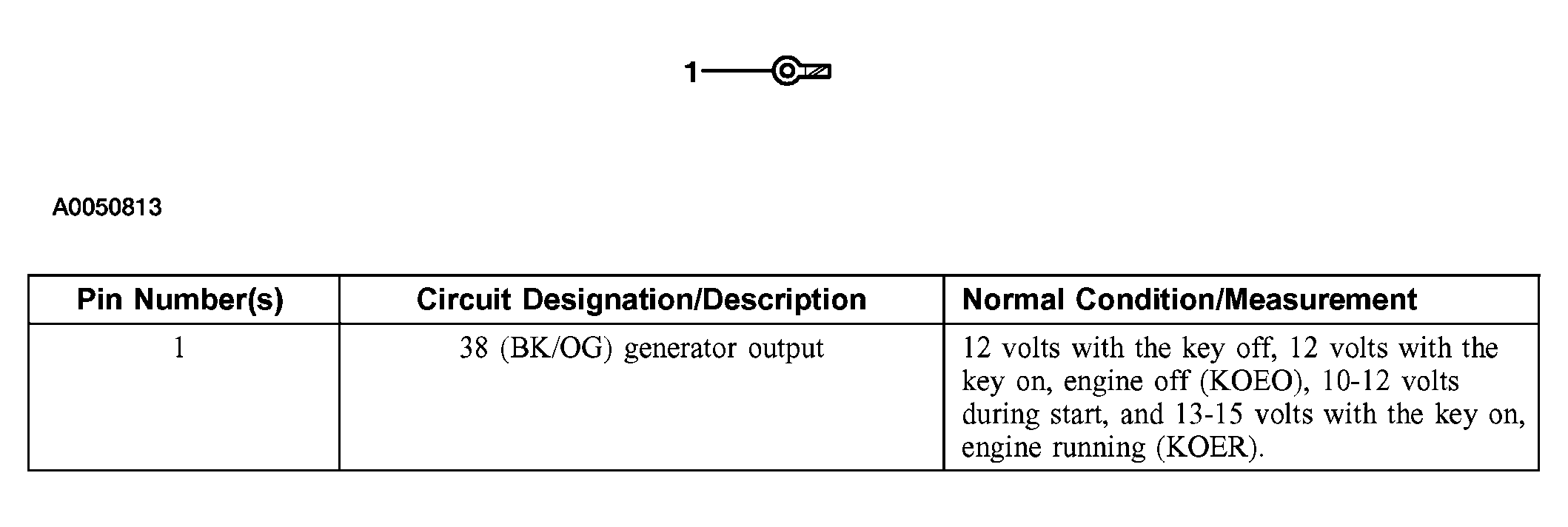

Fig 3: Connector Circuit Reference - Generator C102b

Courtesy of FORD MOTOR CO.

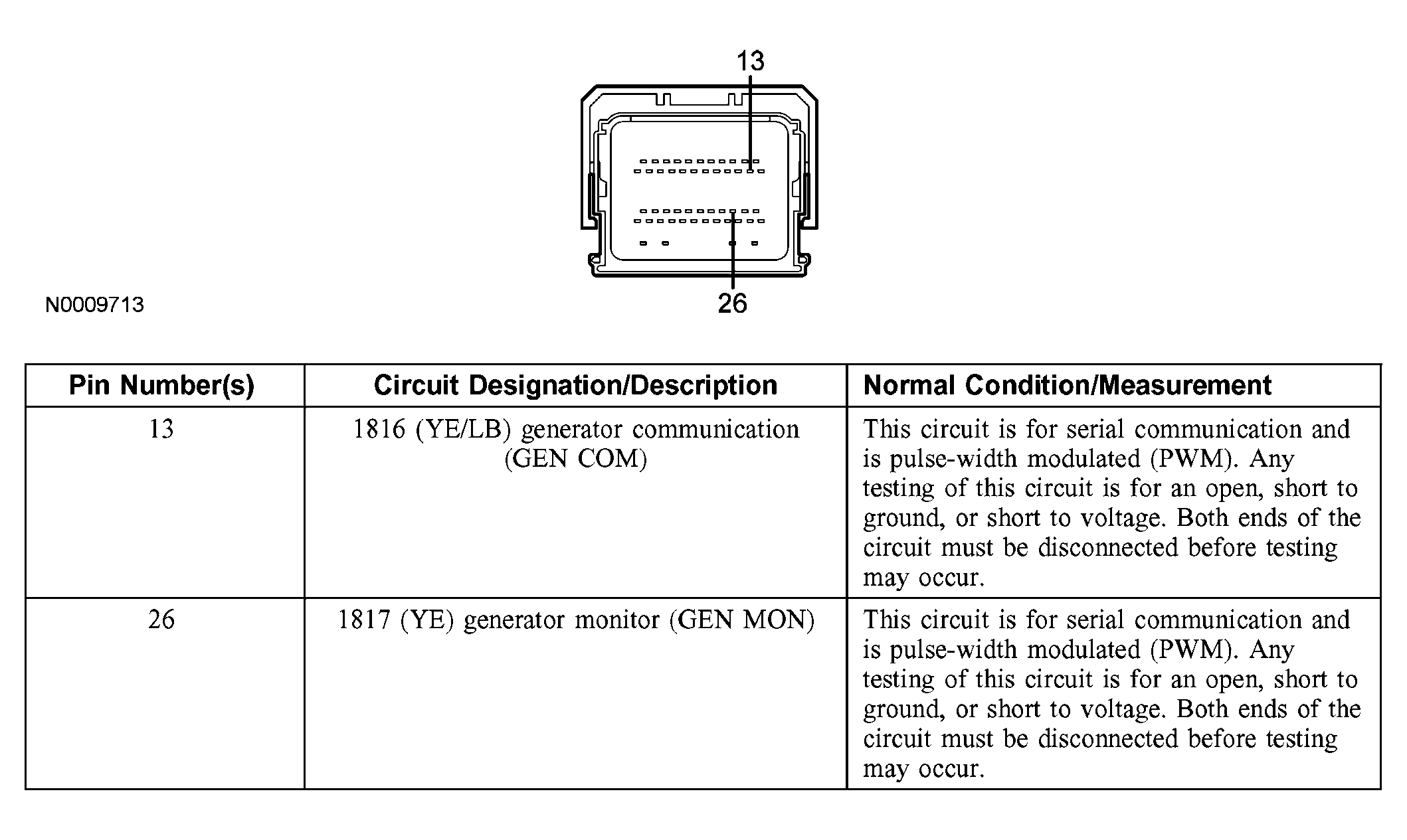

Fig 4: Connector Circuit Reference - Powertrain Control Module (PCM) C175e

Courtesy of FORD MOTOR CO.
