Transaxle Case - Disassembly: Disassembly

  1. Remove and discard the O-ring seal from the feed tube.
    Fig 1: Removing O-Ring Seal From Feed Tube
    G03991210Courtesy of FORD MOTOR CO.
  2. Remove the secondary variator feed tube from the case.
    Fig 2: Removing Secondary Variator Feed Tube From Case
    G03991211Courtesy of FORD MOTOR CO.
  3. Remove and discard the O-ring seal from the secondary feed tube.
    Fig 3: Removing O-Ring Seal From Secondary Feed Tube
    G03991212Courtesy of FORD MOTOR CO.
  4. Remove the manual valve assembly feed tube.
    Fig 4: Removing Manual Valve Assembly Feed Tube
    G03991213Courtesy of FORD MOTOR CO.
  5. Remove and discard the O-ring seals from the manual valve feed tube.
    Fig 5: Removing O-Ring Seals From Manual Valve Feed Tube
    G03991214Courtesy of FORD MOTOR CO.
  6. NOTE: The park assembly will only need to be disassembled if damage to the park components is indicated, or if the primary variator feed tube is plugged or shows signs of damage and a new tube needs to be installed.

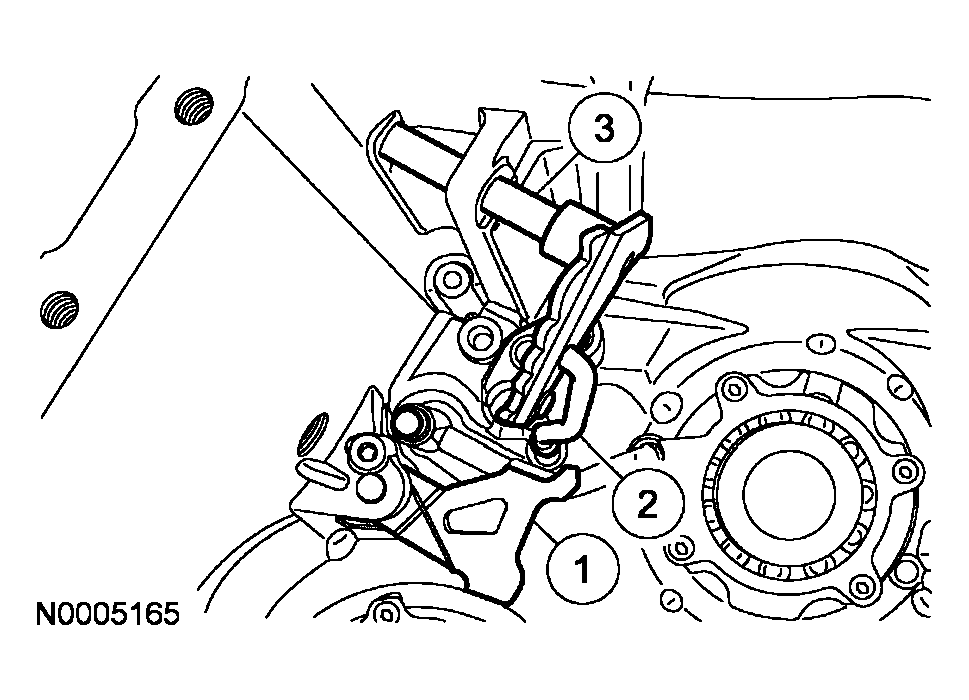

  7. If necessary, remove the park rod assembly.
    1. Hold the park pawl back.
    2. Lift the park rod away from the park pawl.
    3. Slide the park rod and manual lever out of the case.
      Fig 6: Removing Park Rod Assembly
      G03991215Courtesy of FORD MOTOR CO.

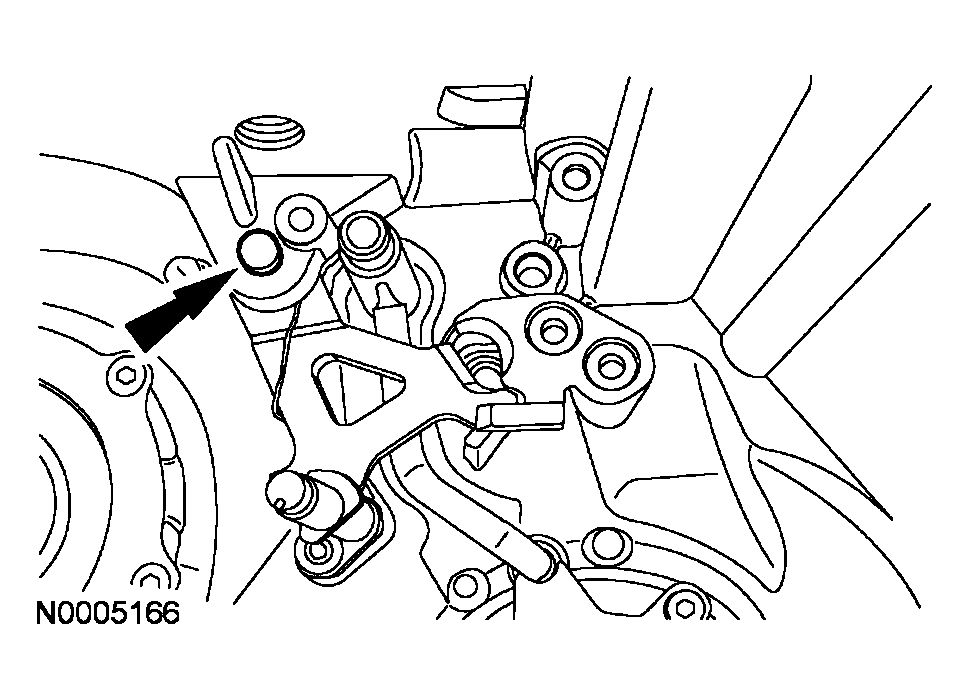

  8. If necessary, use a magnet to remove the guide pin for the park pawl.
    Fig 7: Removing Guide Pin For Park Pawl
    G03991216Courtesy of FORD MOTOR CO.

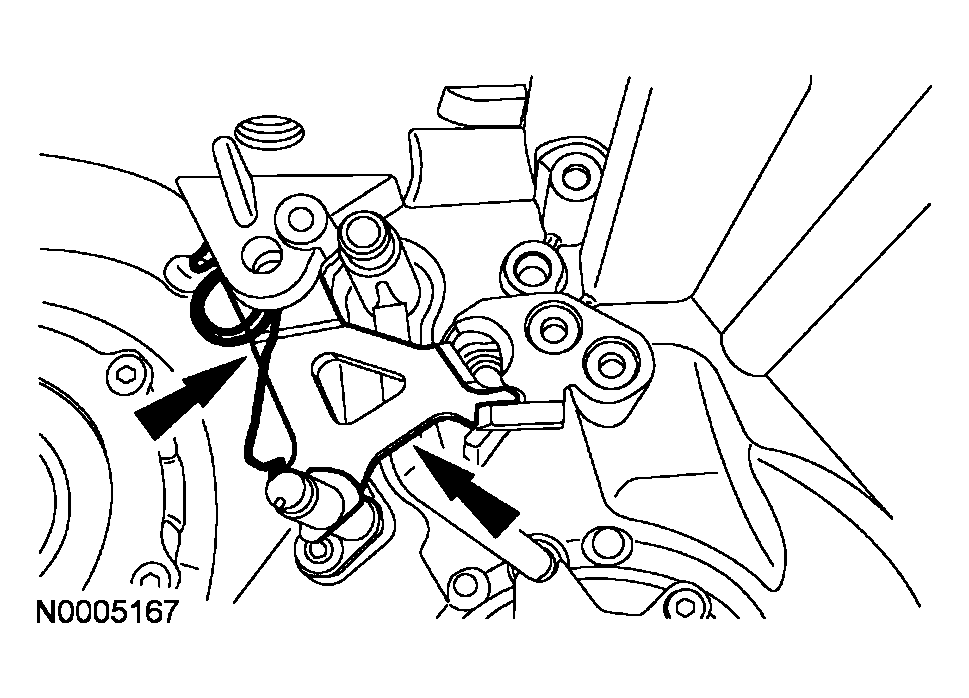

  9. If necessary, remove the park pawl and the park pawl spring.
    Fig 8: Removing Park Pawl And Park Pawl Spring
    G03991217Courtesy of FORD MOTOR CO.
  10. If the park system has been removed, remove the primary variator bearing cover plate.
    Fig 9: Removing Primary Variator Bearing Cover Plate
    G03991218Courtesy of FORD MOTOR CO.
  11. If the park system has been removed, remove the primary variator feed tube from the case.
    Fig 10: Removing Primary Variator Feed Tube From Case
    G03991219Courtesy of FORD MOTOR CO.
  12. If the park system has been removed, remove and discard the O-ring seal for the primary variator feed tube.
    Fig 11: Removing O-Ring Seal For Primary Variator Feed Tube
    G03991220Courtesy of FORD MOTOR CO.
  13. If the park system has not been removed and the installation of a new bearing is required, remove the primary variator bearing cover plate.
    Fig 12: Removing Primary Variator Bearing Cover Plate
    G03991218Courtesy of FORD MOTOR CO.
  14. Remove the secondary variator bearing cover plate.
    Fig 13: Removing Secondary Variator Bearing Cover Plate
    G03991222Courtesy of FORD MOTOR CO.

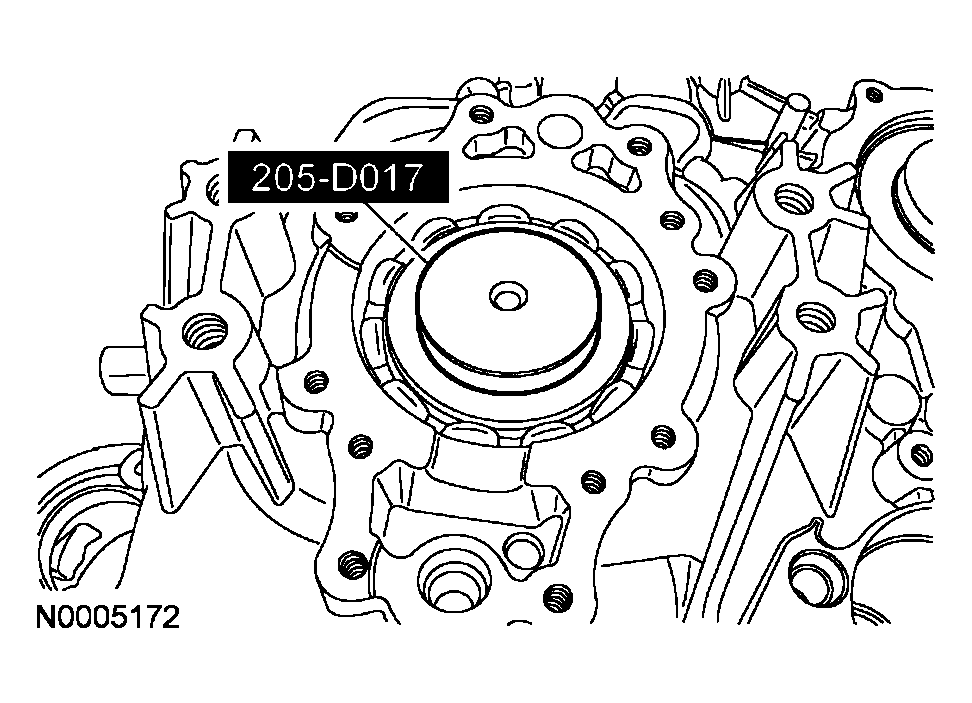

  15. Using the special tool and a press, remove the primary variator bearing.
    Fig 14: Removing Primary Variator Bearing
    G03991223Courtesy of FORD MOTOR CO.

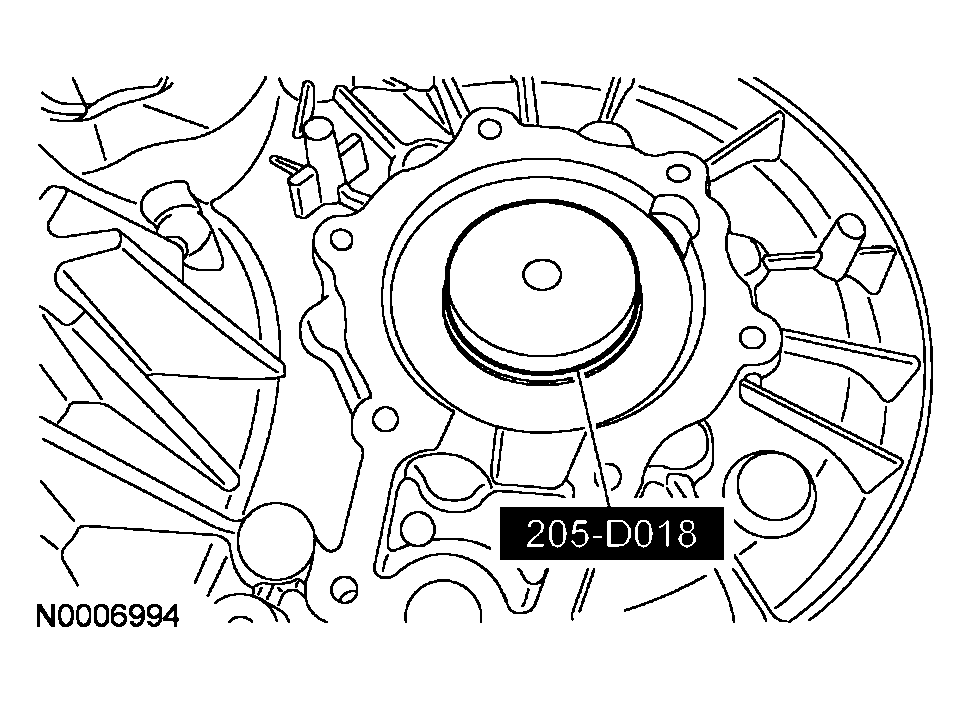

  16. Using the special tool and a press, remove the secondary variator bearing.
    Fig 15: Removing Secondary Variator Bearing
    G03991224Courtesy of FORD MOTOR CO.

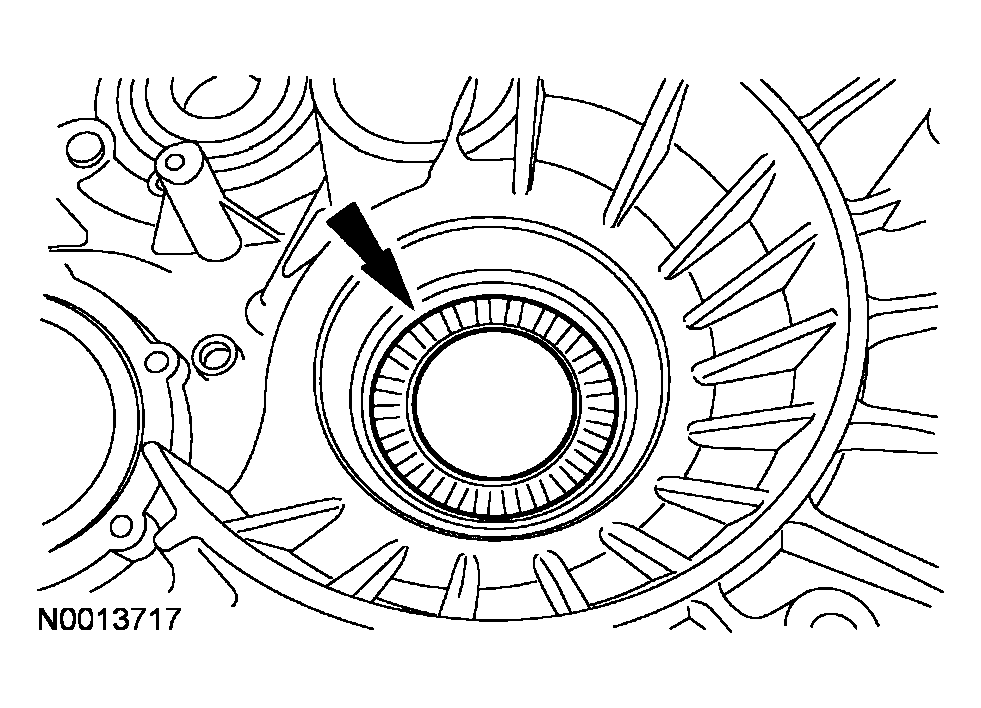

  17. Using a punch, remove the differential seal.
    Fig 16: Removing Differential Seal
    G03991225Courtesy of FORD MOTOR CO.

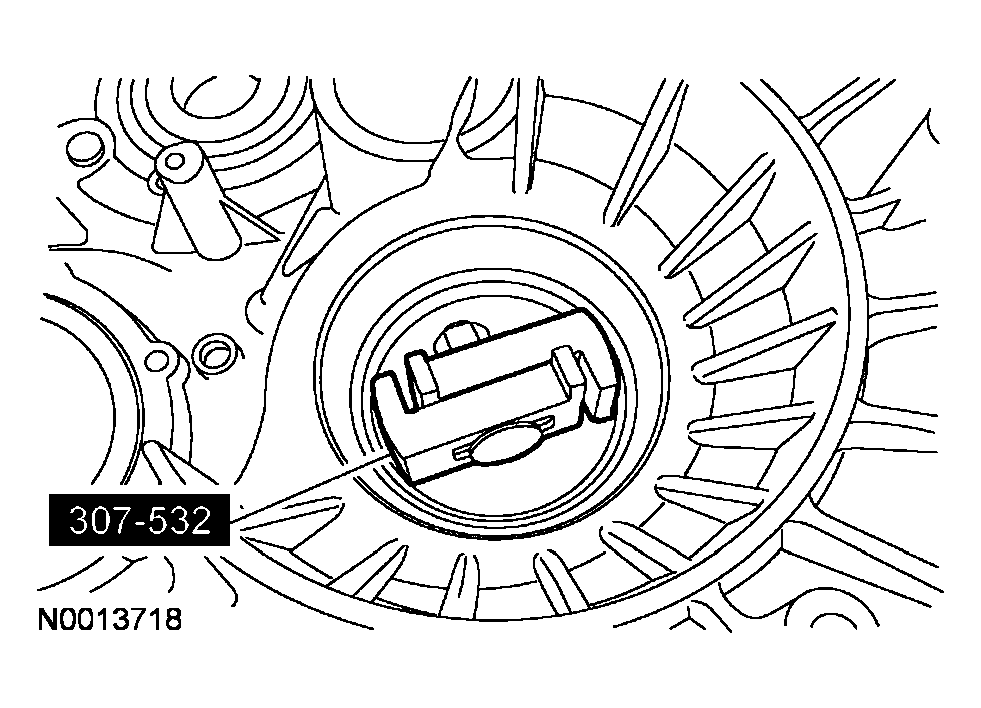

  18. Install the special tool just under the bearing race.
    Fig 17: Installing Special Tool Just Under Bearing Race
    G03991226Courtesy of FORD MOTOR CO.

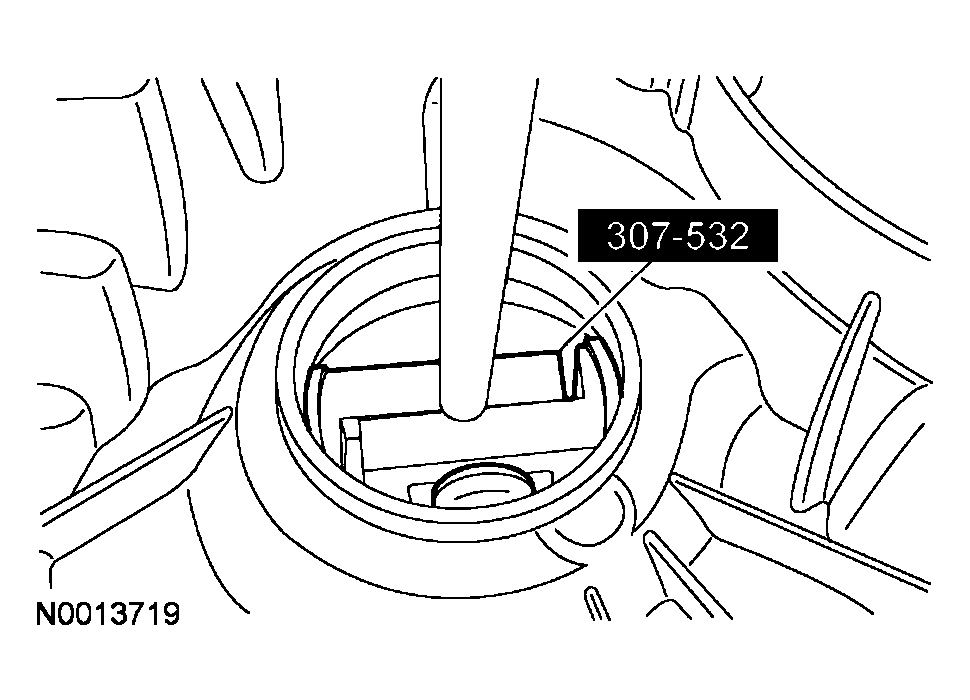

  19. Using a brass punch and the special tool, remove the bearing race.
    Fig 18: Removing Bearing Race
    G03991227Courtesy of FORD MOTOR CO.
  20. NOTE: Note the location of the manual control lever for assembly.
    NOTE: Make sure that the manual control lever is in the PARK position.
    Fig 19: Locating Manual Control Lever And Roll Pin
    G03991228Courtesy of FORD MOTOR CO.
  21. Remove the roll pin and remove the manual control lever.

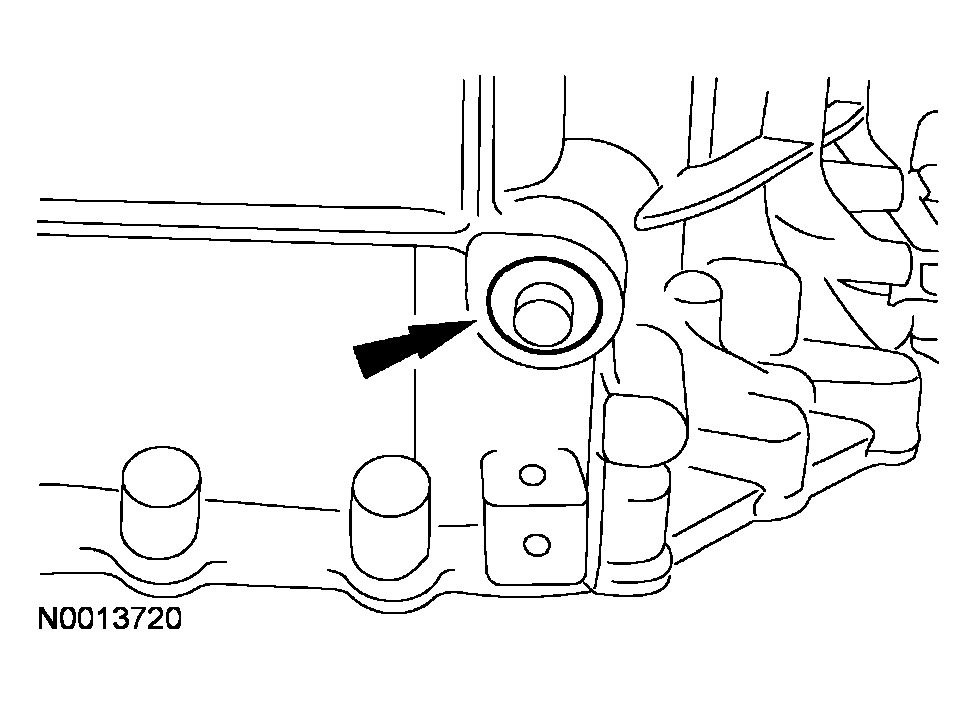

  22. Remove the manual control lever shaft seal.
    Fig 20: Removing Manual Control Lever Shaft Seal
    G03991229Courtesy of FORD MOTOR CO.
  23. Clean and inspect the case assembly for damage, if any damage is indicated install new parts as necessary.
