Transmission Range (TR) Sensor: Disassembly

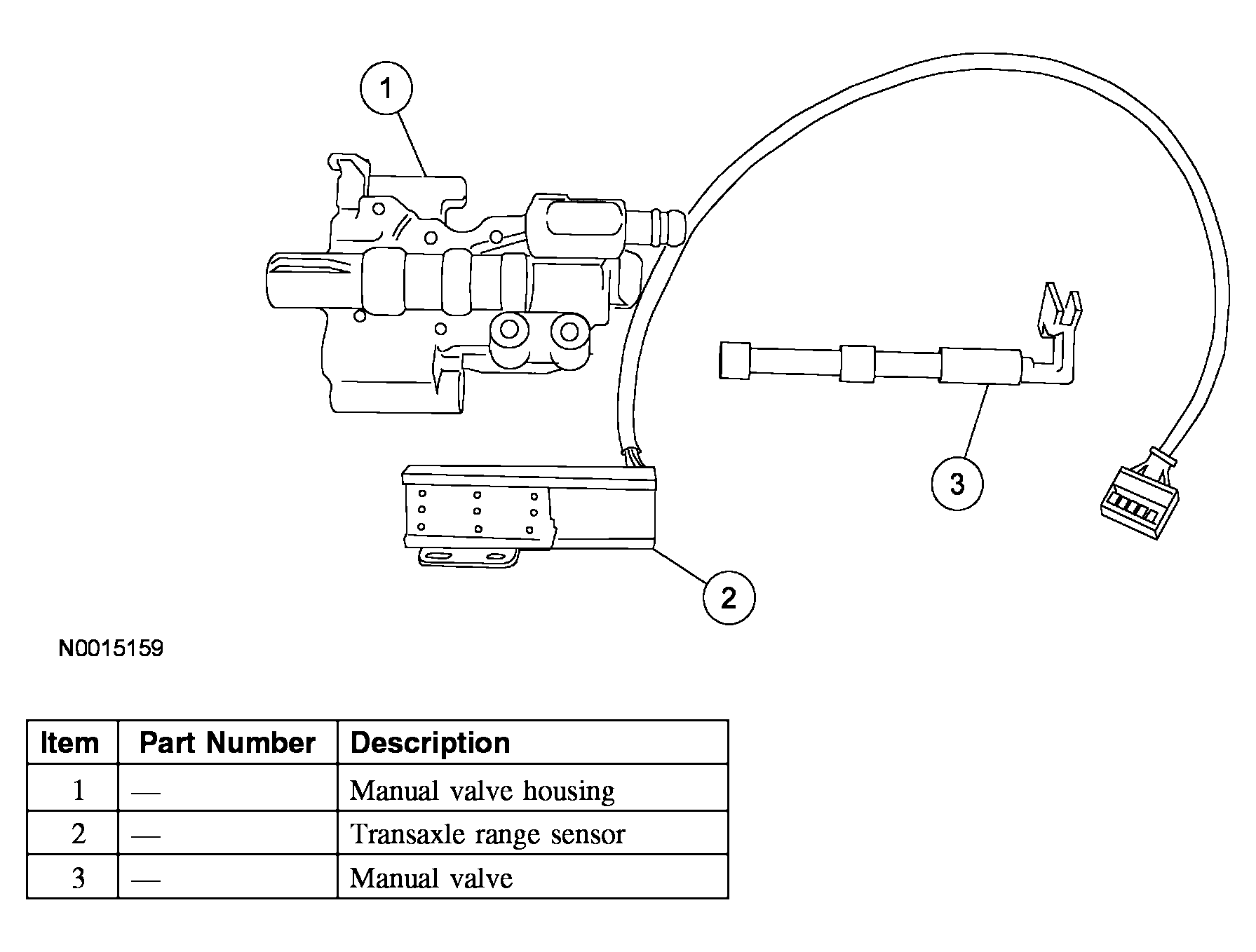

Fig 1: Range Sensor Assembly - Disassembled View
G03991155Courtesy of FORD MOTOR CO.
  1. Remove the bolts for the transaxle range sensor and remove it from the valve.
    Fig 2: Removing Bolts For Transaxle Range Sensor
    G03991156Courtesy of FORD MOTOR CO.
    2. NOTE: If damage is indicated on the manual valve a new housing assembly must be installed into the case.
    Fig 3: Removing Manual Control Valve
    G03991157Courtesy of FORD MOTOR CO.
  2. Remove and inspect the manual control valve.
