Engine Lubrication Components - Exploded View

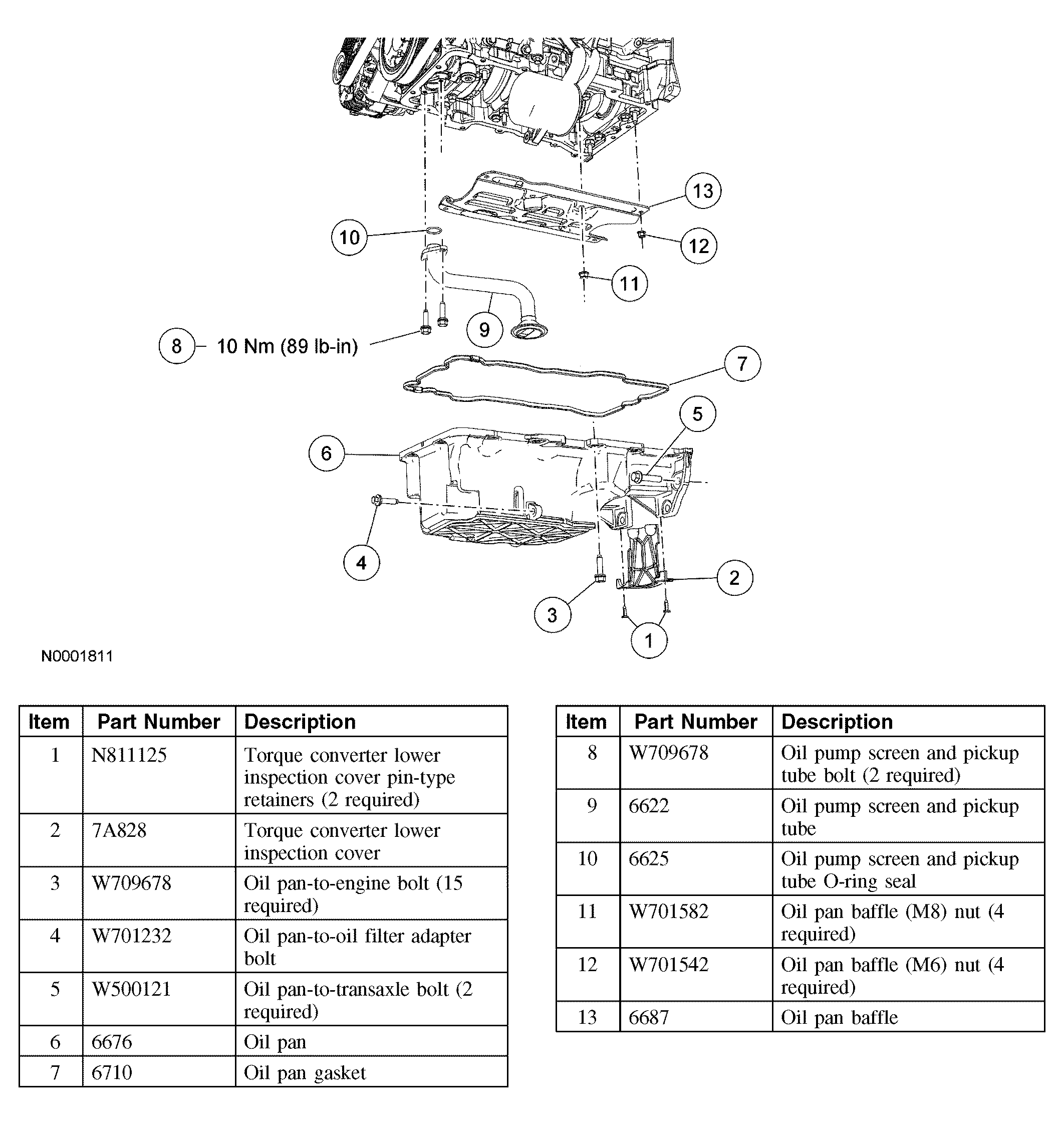

Fig 1: Identifying Oil Pan, Oil Pump Screen And Pickup Tube And Oil Pan Baffle Components
G03990180Courtesy of FORD MOTOR CO.

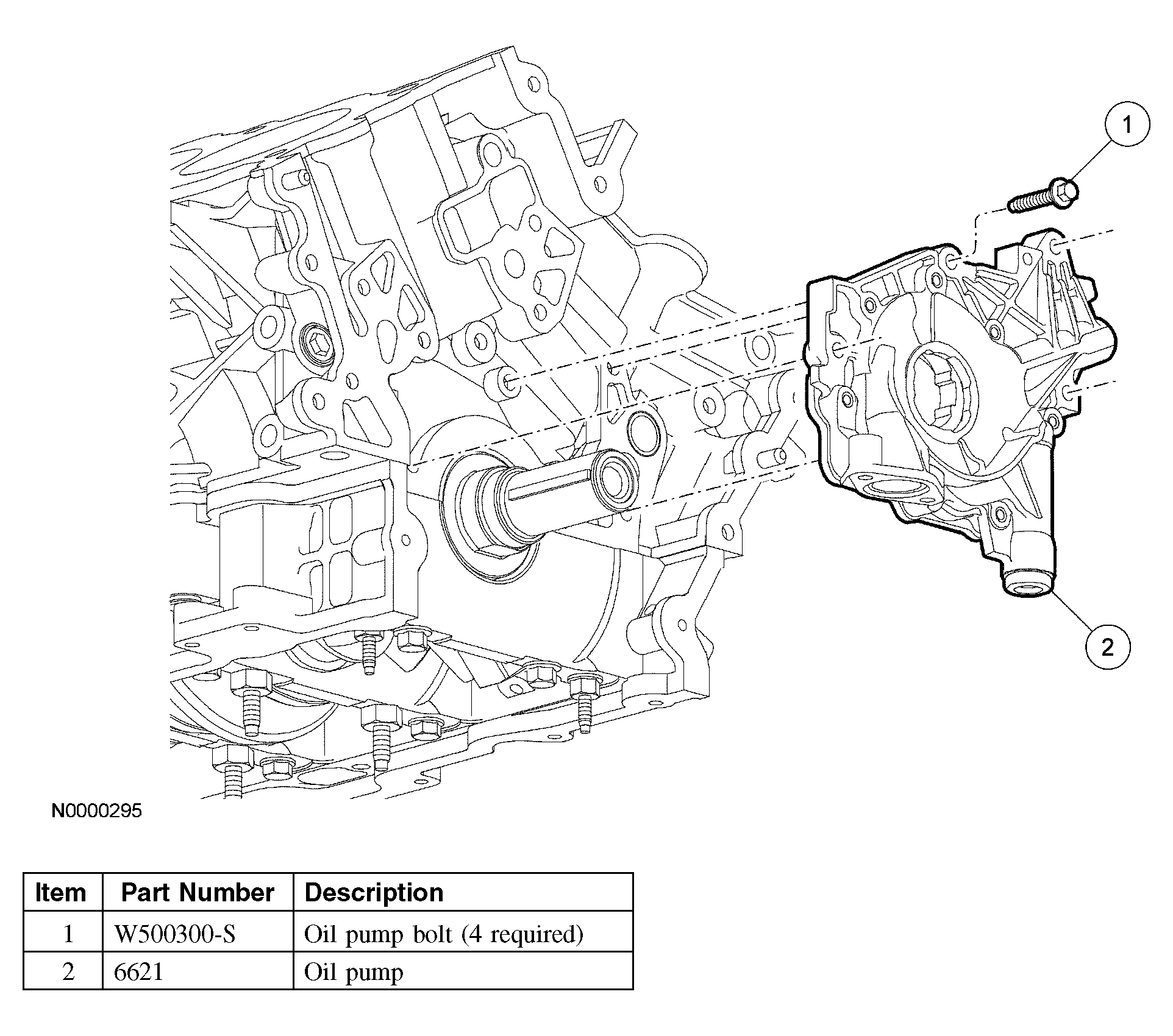

Fig 2: Identifying Oil Pump Components
G03990181Courtesy of FORD MOTOR CO.
  1. For additional information, refer to the procedures below.
