Valve Train Components - Exploded View

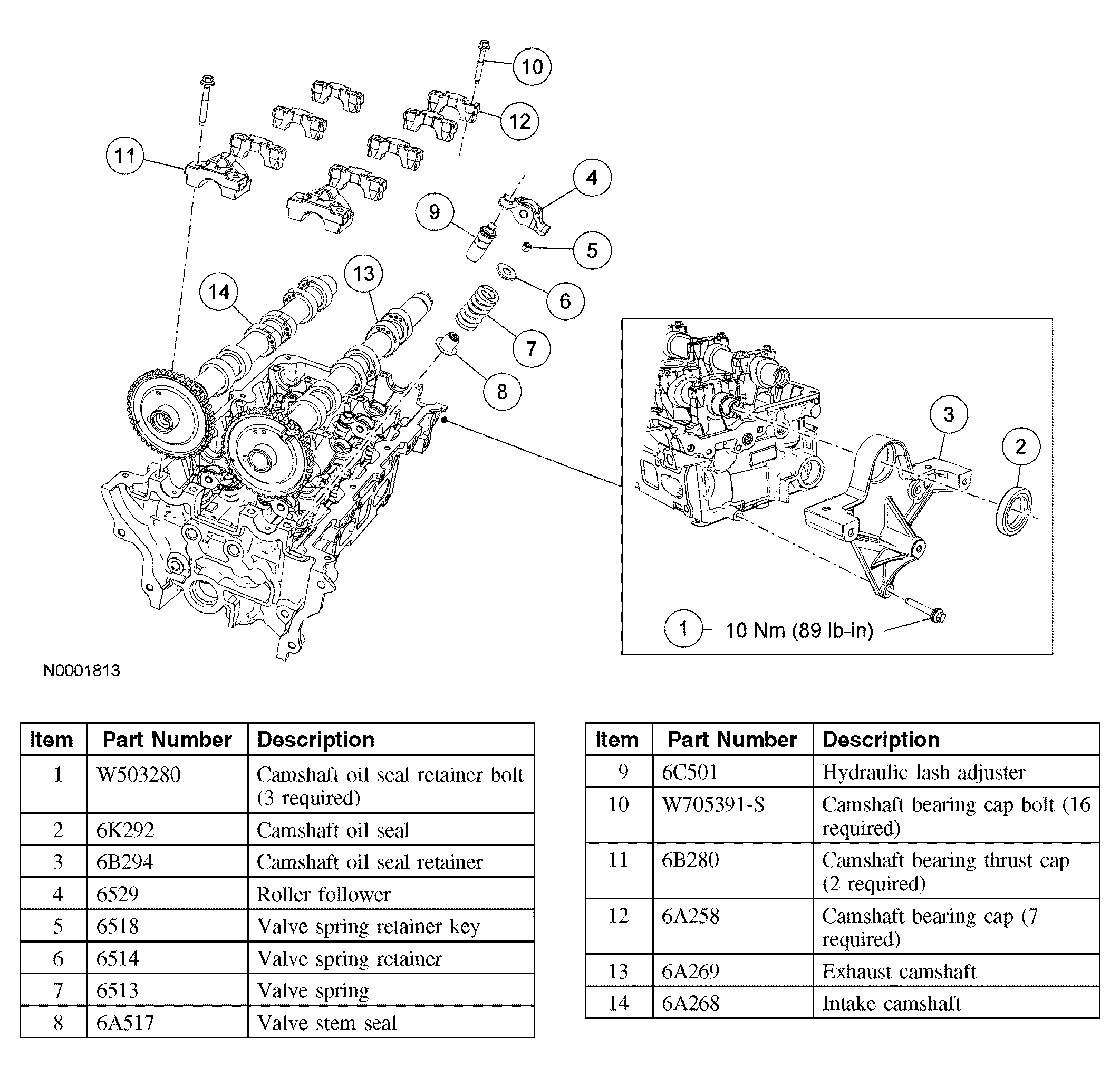

Fig 1: Exploded View Of Valve Train Components - LH
G03990147Courtesy of FORD MOTOR CO.

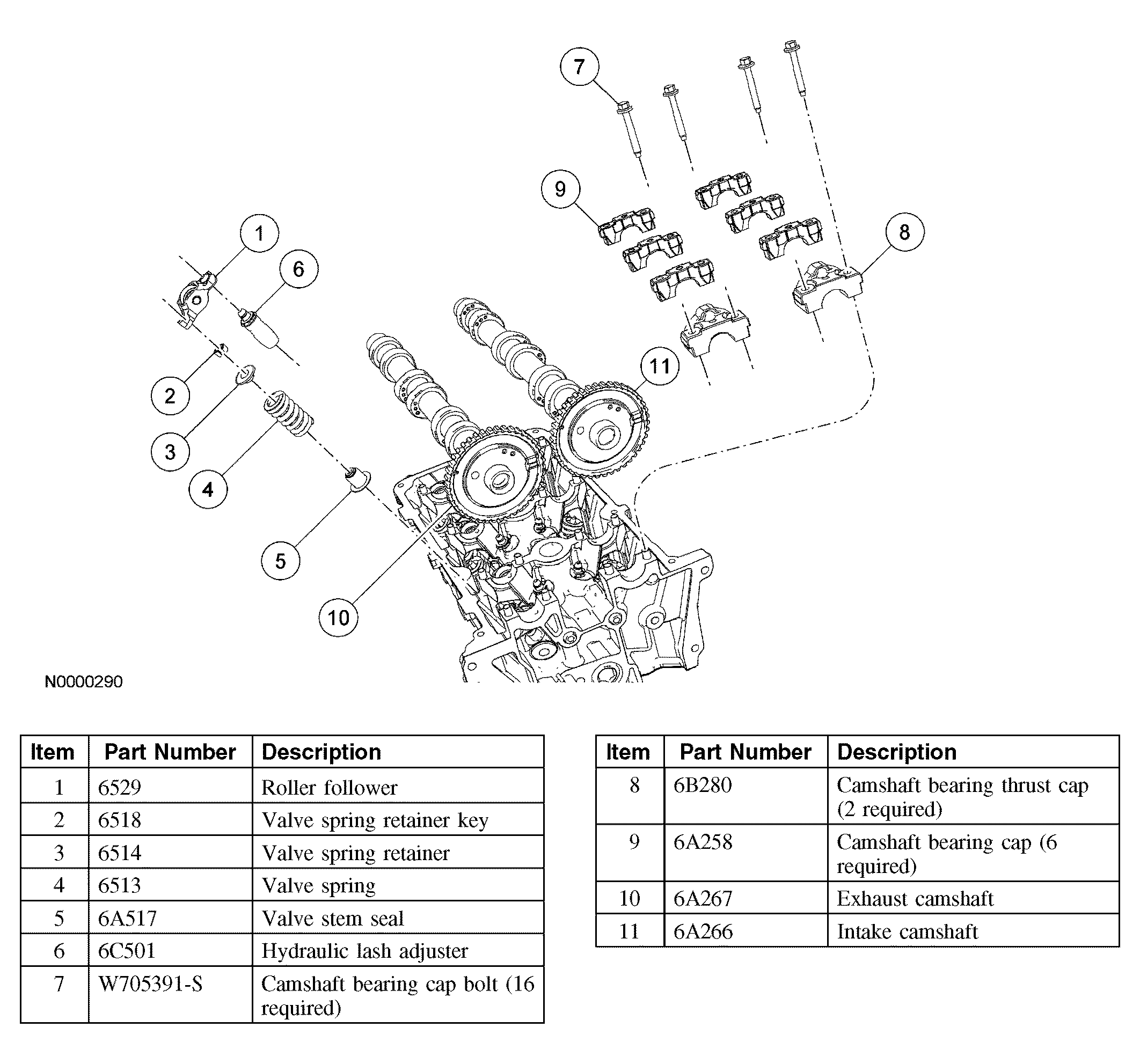

Fig 2: Exploded View Of Valve Train Components - RH
G03990148Courtesy of FORD MOTOR CO.
  1. For additional information, refer to the procedures below.
