Connector Views

Fig 1: A/C Clutch Field Coil Connector End View (C100)

G07844612

Courtesy of FORD MOTOR CO.

Fig 2: Crankshaft Position Sensor Connector End View (C101)

G07844613

Courtesy of FORD MOTOR CO.

Fig 3: Generator Connector End View (C102a)

G07844614

Courtesy of FORD MOTOR CO.

Fig 4: Generator Connector End View (C102b)

G07844615

Courtesy of FORD MOTOR CO.

Fig 5: Oil Pressure Switch Connector End View (C103)

G07844616

Courtesy of FORD MOTOR CO.

Fig 6: Knock Sensor Connector End View (C108)

G07844617

Courtesy of FORD MOTOR CO.

Fig 7: Inline Connector End View (C110)

G07844618

Courtesy of FORD MOTOR CO.

Fig 8: Coil On Plug (COP) 1 Connector End View (C111)

G07844619

Courtesy of FORD MOTOR CO.

Fig 9: Coil On Plug (COP) 2 Connector End View (C112)

G07844620

Courtesy of FORD MOTOR CO.

Fig 10: Coil On Plug (COP) 3 Connector End View (C113)

G07844621

Courtesy of FORD MOTOR CO.

Fig 11: Coil On Plug (COP) 4 Connector End View (C114)

G07844622

Courtesy of FORD MOTOR CO.

Fig 12: Coil On Plug (COP) 5 Connector End View (C115)

G07844623

Courtesy of FORD MOTOR CO.

Fig 13: Coil On Plug (COP) 6 Connector End View (C116)

G07844624

Courtesy of FORD MOTOR CO.

Fig 14: Power Steering Pressure Switch Connector End View (C121)

G07844625

Courtesy of FORD MOTOR CO.

Fig 15: Brake Fluid Level Switch Connector End View (C124)

G07844626

Courtesy of FORD MOTOR CO.

Fig 16: Windshield Wiper Motor Connector End View (C125)

G07844627

Courtesy of FORD MOTOR CO.

Fig 17: Anti-Theft Hood Switch Connector End View (C127)

G07844628

Courtesy of FORD MOTOR CO.

Fig 18: Mass Air Flow (MAF) Sensor Connector End View (C128)

G07844629

Courtesy of FORD MOTOR CO.

Fig 19: A/C Clutch Cycling Pressure Switch Connector End View (C130)

G07844630

Courtesy of FORD MOTOR CO.

Fig 20: Horn Connector End View (C131)

G07844631

Courtesy of FORD MOTOR CO.

Fig 21: Ambient Air Temperature Sensor Connector End View (C132)

G07844632

Courtesy of FORD MOTOR CO.

Fig 22: Inline Connector End View (C133)

G07844633

Courtesy of FORD MOTOR CO.

Fig 23: Inline Connector End View (C134)

G07844634

Courtesy of FORD MOTOR CO.

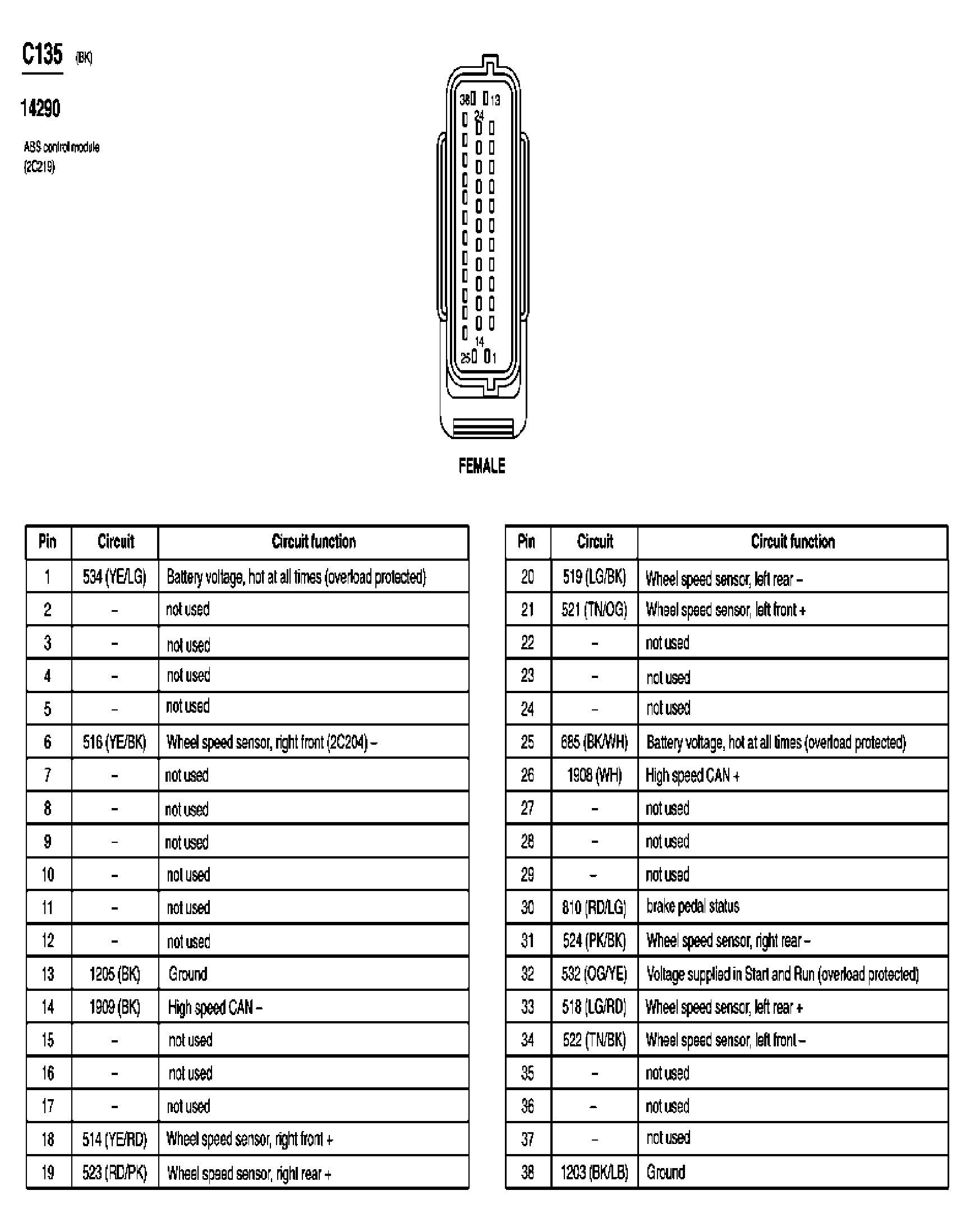

Fig 24: ABS Control Module Connector End View (C135)

G03994304

Courtesy of FORD MOTOR CO.

Fig 25: Windshield Washer Pump Motor Connector End View (C137)

G07844635

Courtesy of FORD MOTOR CO.

Fig 26: Washer Fluid Level Switch Connector End View (C138)

G07844636

Courtesy of FORD MOTOR CO.

Fig 27: Inline Connector End View (C139)

G07844637

Courtesy of FORD MOTOR CO.

Fig 28: Heated Oxygen Sensor (HO2S) #22 Connector End View (C141)

G07844638

Courtesy of FORD MOTOR CO.

Fig 29: Heated Oxygen Sensor (HO2S) #12 Connector End View (C142)

G07844639

Courtesy of FORD MOTOR CO.

Fig 30: Inline Connector End View (C144)

G07844640

Courtesy of FORD MOTOR CO.

Fig 31: Wheel Speed Sensor, Left Front Connector End View (C150)

G07844641

Courtesy of FORD MOTOR CO.

Fig 32: Fog Lamp, Left Front Connector End View (C152)

G07844642

Courtesy of FORD MOTOR CO.

Fig 33: Wheel Speed Sensor, Right Front Connector End View (C160)

G07844643

Courtesy of FORD MOTOR CO.

Fig 34: Fog Lamp, Right Front Connector End View (C162)

G07844644

Courtesy of FORD MOTOR CO.

Fig 35: Auxiliary Coolant Pump Motor Connector End View (C163)

G07844645

Courtesy of FORD MOTOR CO.

Fig 36: 6-Speed Automatic Transaxle Module Connector End View (C168)

G07844646

Courtesy of FORD MOTOR CO.

Fig 37: Heated Oxygen Sensor (HO2S) #11 Connector End View (C171)

G07844647

Courtesy of FORD MOTOR CO.

Fig 38: Heated Oxygen Sensor (HO2S) #21 Connector End View (C172)

G07844648

Courtesy of FORD MOTOR CO.

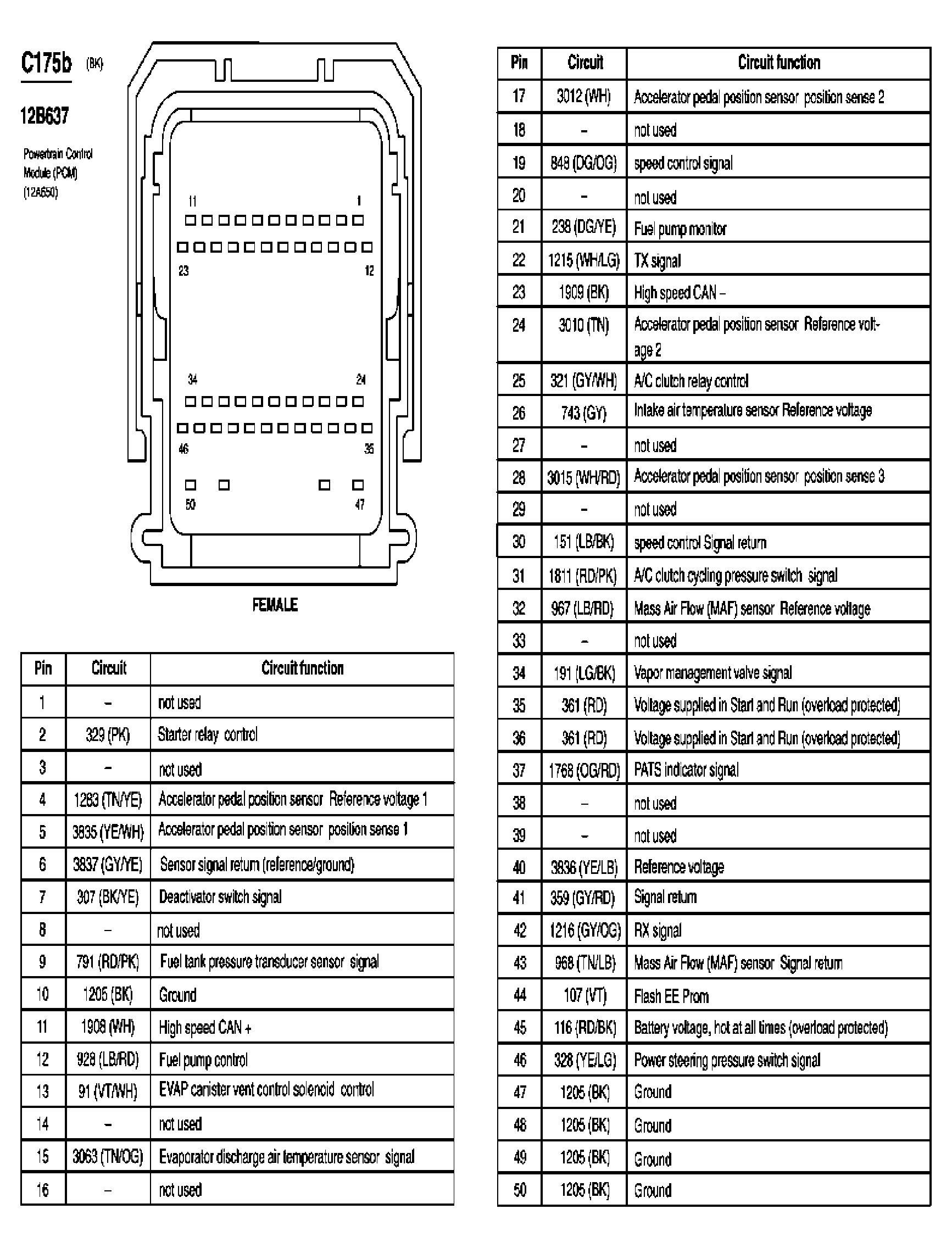

Fig 39: Parking Control Module (PCM) Connector End View (C175b)

G03994309

Courtesy of FORD MOTOR CO.

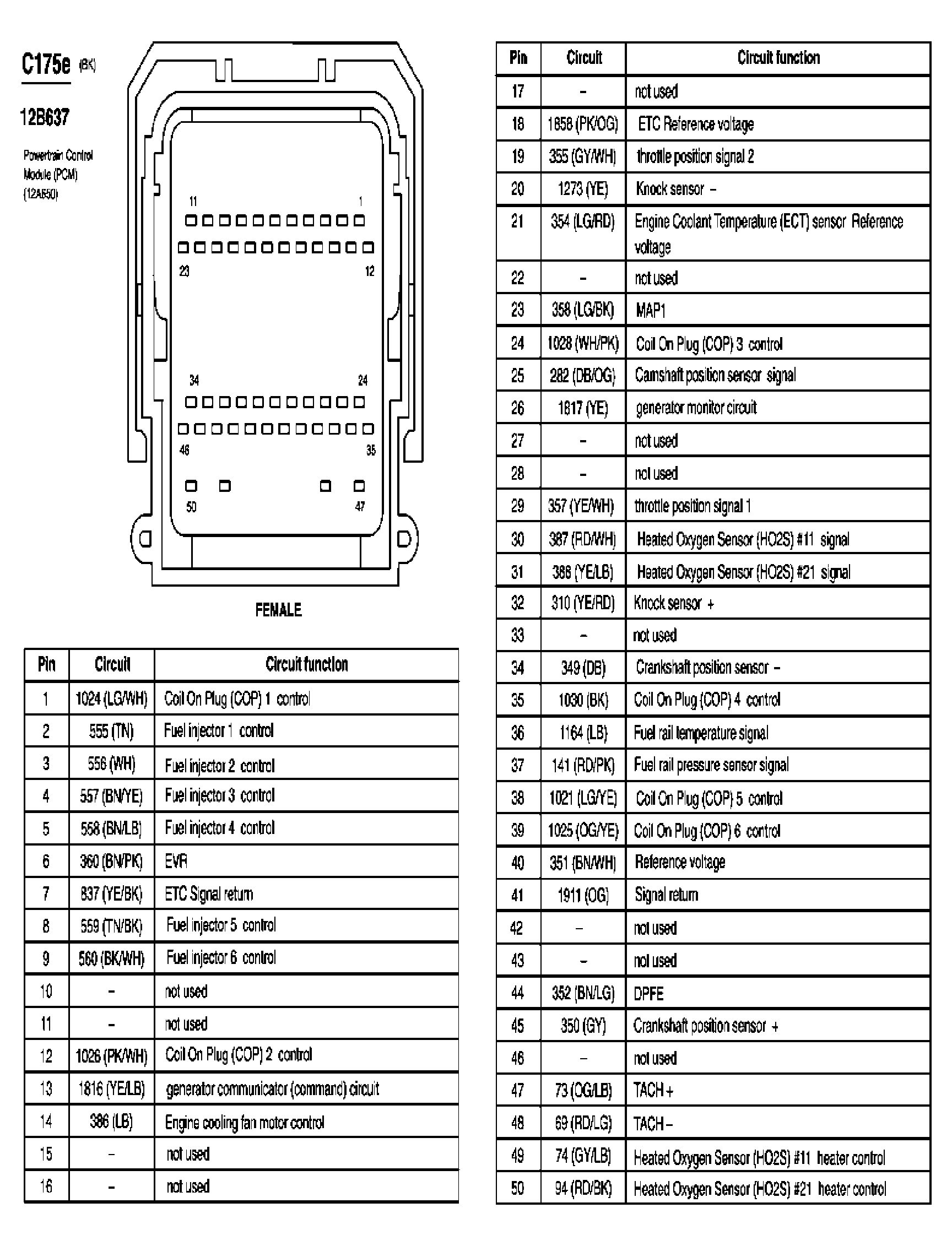

Fig 40: Powertrain Control Module (PCM) Connector End View (C175e)

G03994310

Courtesy of FORD MOTOR CO.

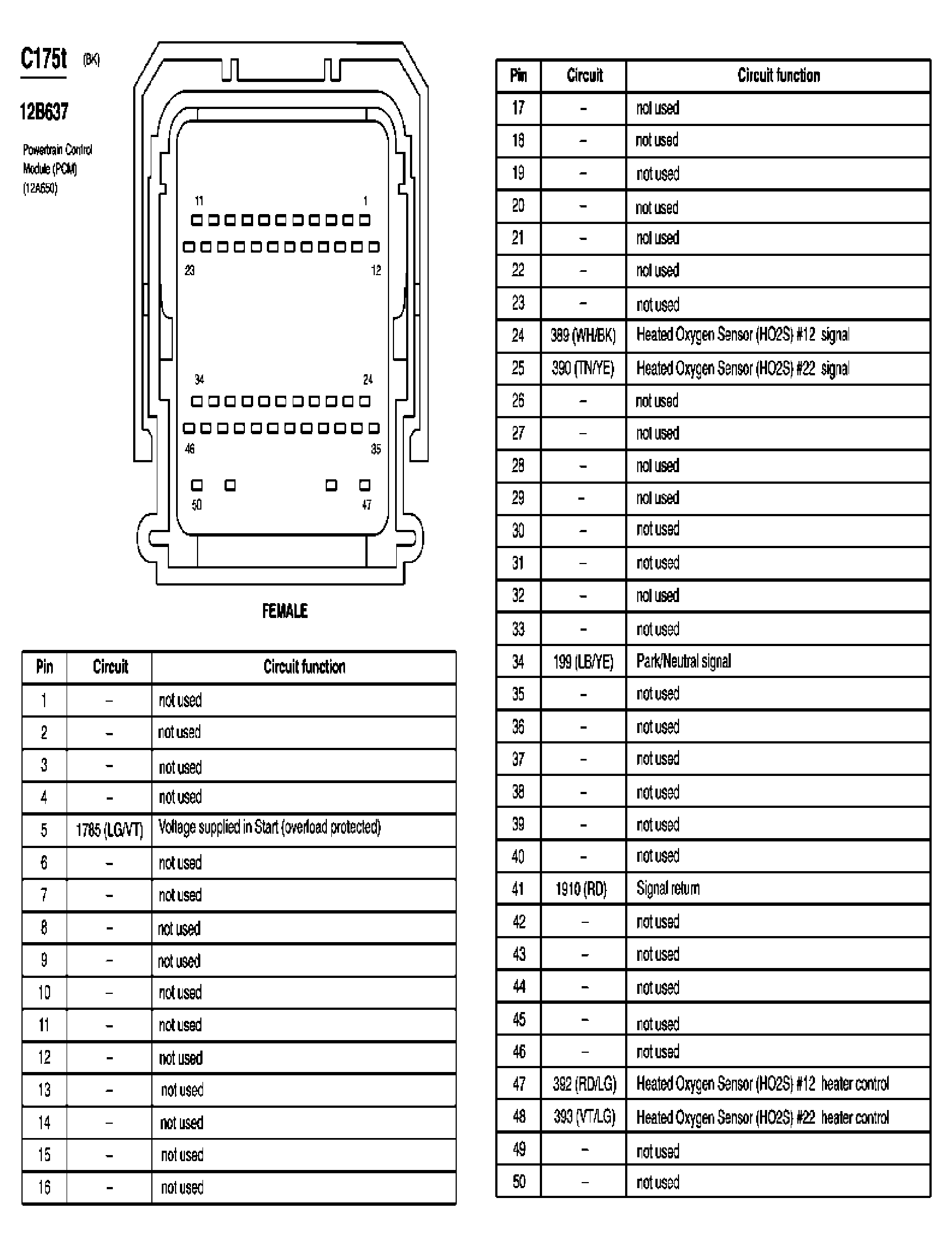

Fig 41: Powertrain Control Module (PCM) Connector End View (C175t)

G03994311

Courtesy of FORD MOTOR CO.

Fig 42: Camshaft Position Sensor Connector End View (C180)

G07844649

Courtesy of FORD MOTOR CO.

Fig 43: Fuel Injector 1 Connector End View (C181)

G07844650

Courtesy of FORD MOTOR CO.

Fig 44: Fuel Injector 2 Connector End View (C182)

G07844651

Courtesy of FORD MOTOR CO.

Fig 45: Fuel Injector 3 Connector End View (C183)

G07844652

Courtesy of FORD MOTOR CO.

Fig 46: Fuel Injector 4 Connector End View (C184)

G07844653

Courtesy of FORD MOTOR CO.

Fig 47: Fuel Injector 6 Connector End View (C186)

G07844654

Courtesy of FORD MOTOR CO.

Fig 48: Heated Positive Crankcase Ventilation (PCV) Valve Connector End View (C190)

G07844655

Courtesy of FORD MOTOR CO.

Fig 49: Starter Motor Connector End View (C197a)

G07844656

Courtesy of FORD MOTOR CO.

Fig 50: Starter Motor Connector End View (C197b)

G07844657

Courtesy of FORD MOTOR CO.

Fig 51: CVT Module Connector End View (C199)

G07844658

Courtesy of FORD MOTOR CO.

Fig 52: Multifunction Switch Connector End View (C202a)

G07844659

Courtesy of FORD MOTOR CO.

Fig 53: Multifunction Switch Connector End View (C202b)

G07844660

Courtesy of FORD MOTOR CO.

Fig 54: Main Light Switch Connector End View (C205)

G03994315

Courtesy of FORD MOTOR CO.

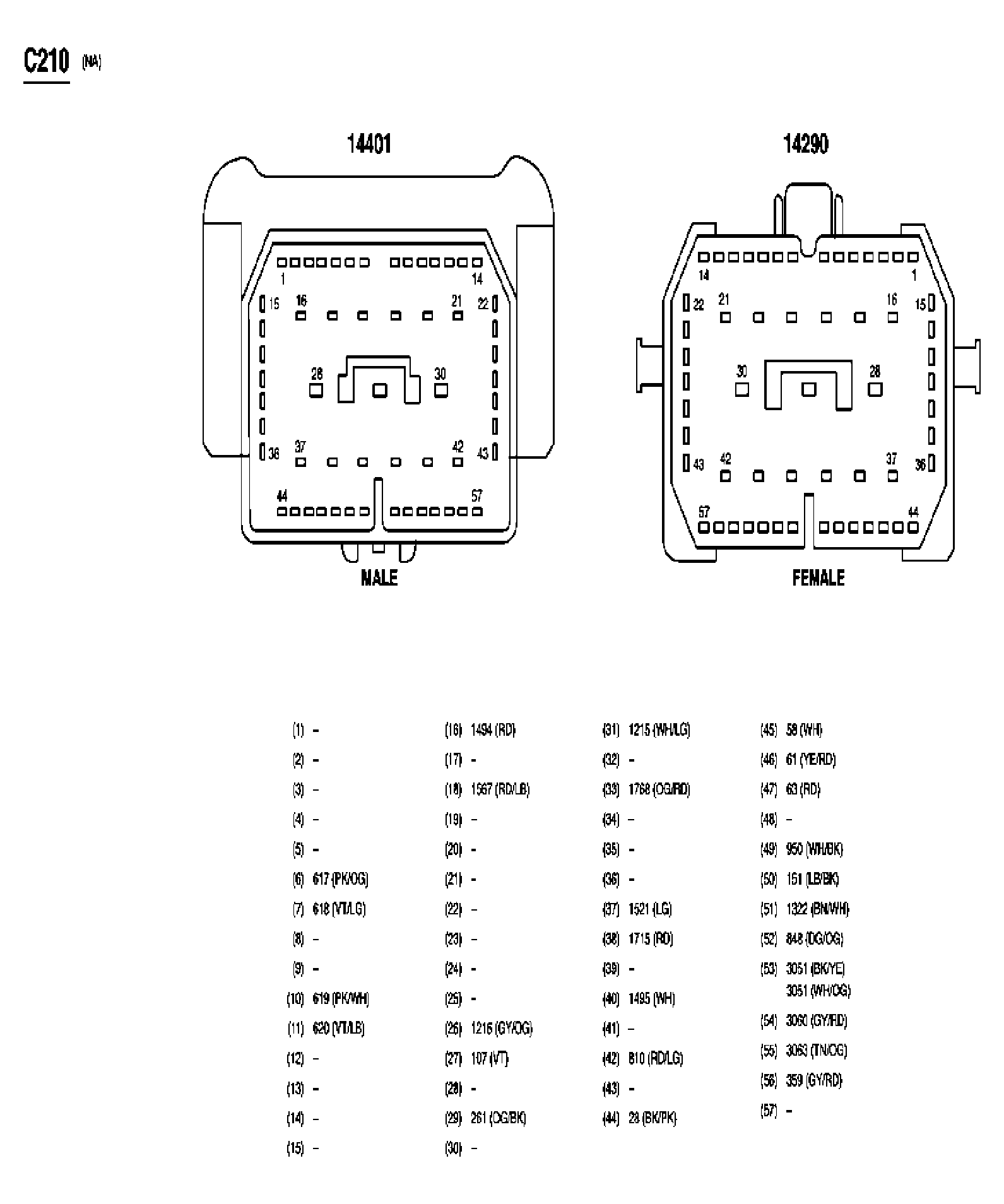

Fig 55: Inline Connector End View (C210)

G03994316

Courtesy of FORD MOTOR CO.

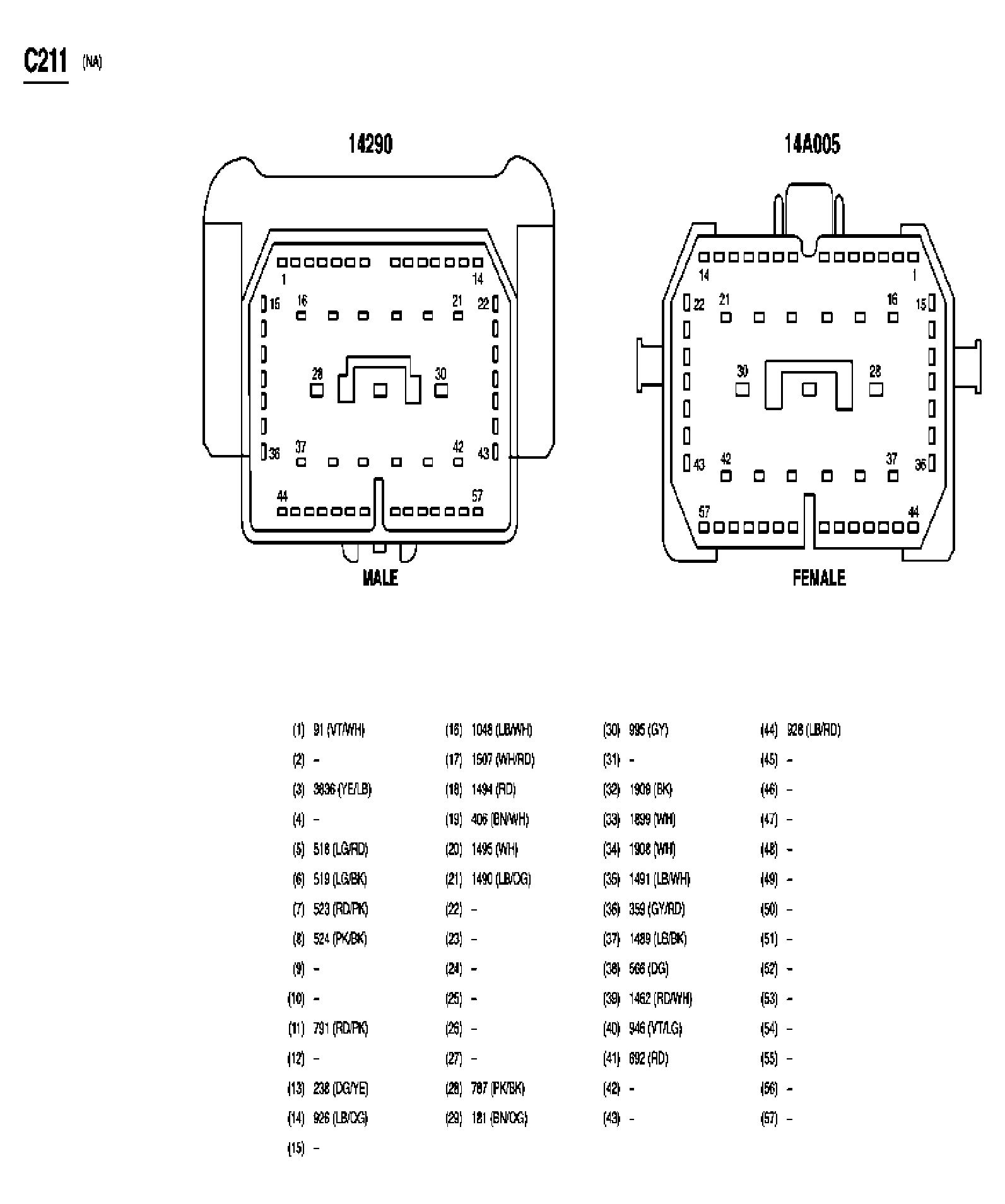

Fig 56: Inline Connector End View (C211)

G03994317

Courtesy of FORD MOTOR CO.

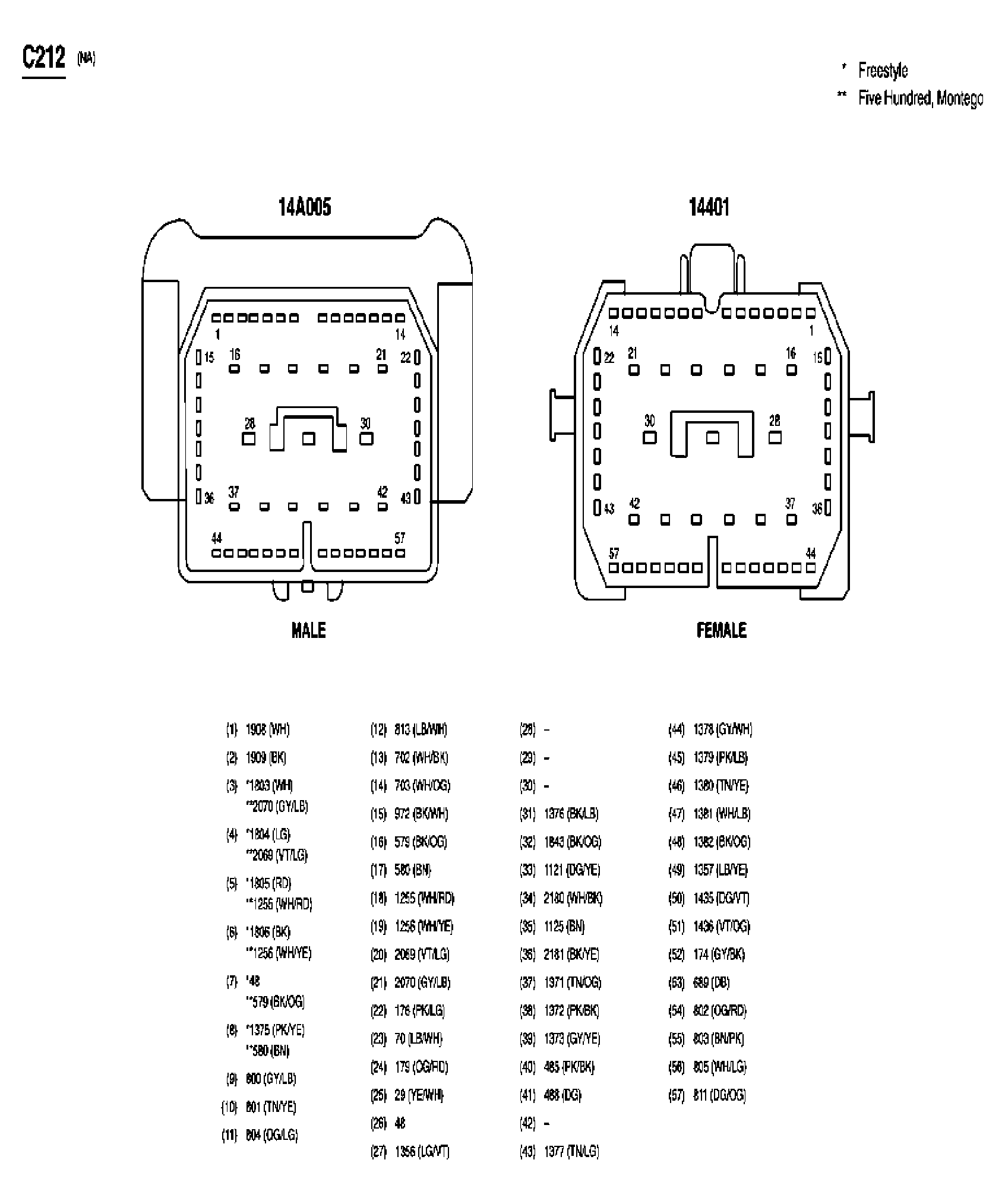

Fig 57: Inline Connector End View (C212)

G03994318

Courtesy of FORD MOTOR CO.

Fig 58: Instrument Cluster Connector End View (C220)

G07844661

Courtesy of FORD MOTOR CO.

Fig 59: Deployable Steering Column Connector End View (C226)

G07844662

Courtesy of FORD MOTOR CO.

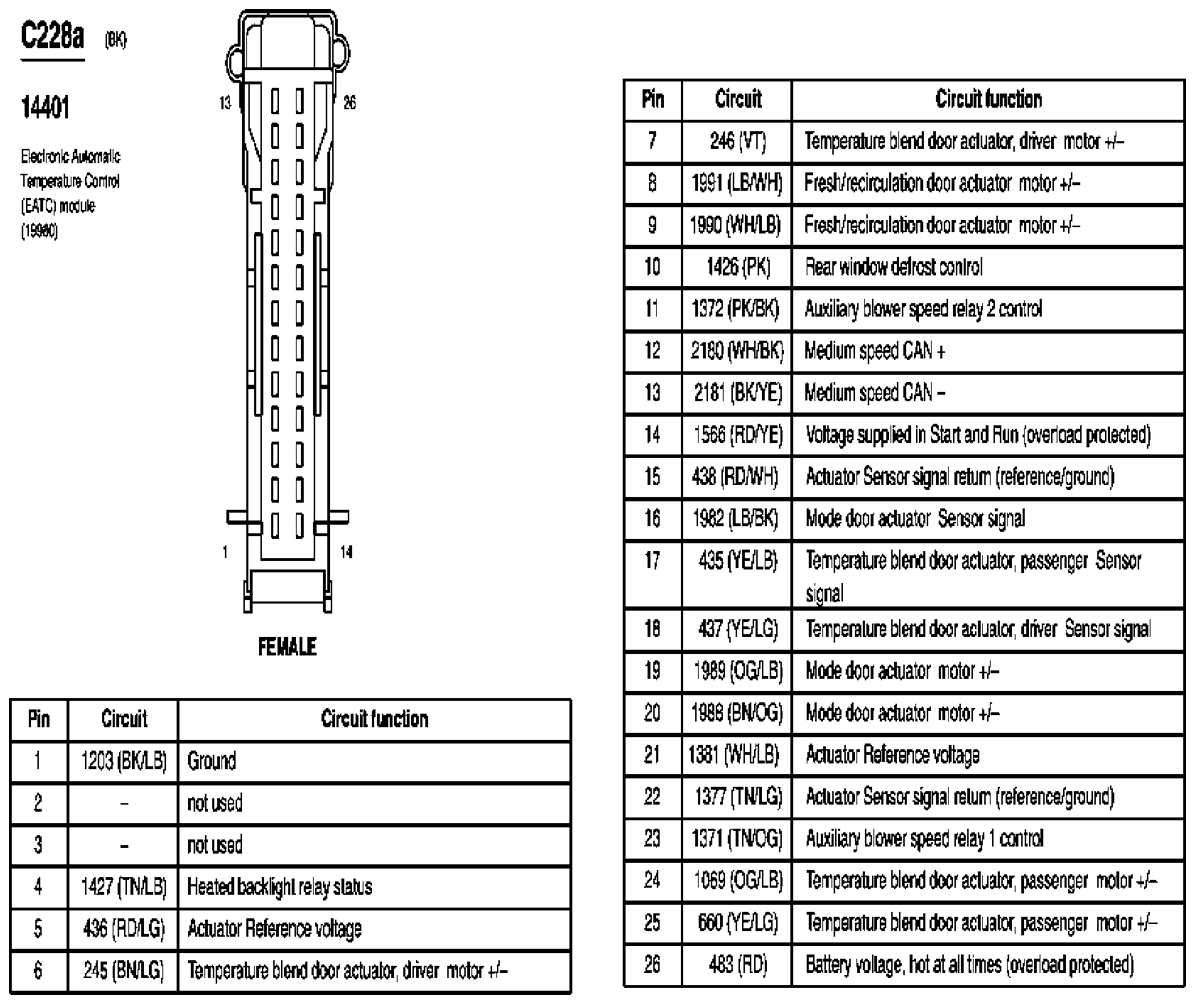

Fig 60: Electronic Automatic Temperature Control (EATC) Module Connector End View (C228a)

G03994320

Courtesy of FORD MOTOR CO.

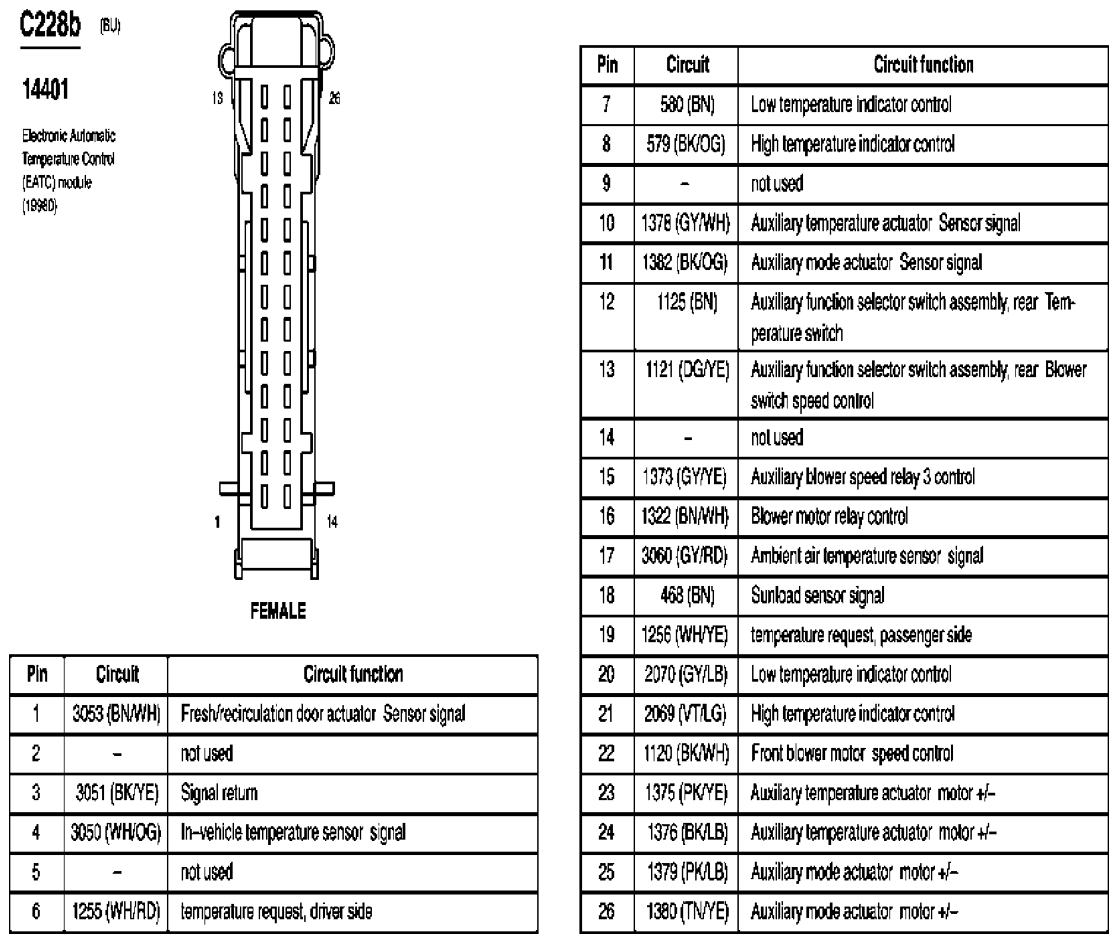

Fig 61: Electronic Automatic Temperature Control (EATC) Module Connector End View (C228b)

G07844663

Courtesy of FORD MOTOR CO.

Fig 62: In-Vehicle Temperature Sensor Connector End View (C233)

G07844664

Courtesy of FORD MOTOR CO.

Fig 63: Radio Connector End View (C240a)

G07844665

Courtesy of FORD MOTOR CO.

Fig 64: Radio Connector End View (C240b)

G07844666

Courtesy of FORD MOTOR CO.

Fig 65: Radio Connector End View (C240c)

G07844667

Courtesy of FORD MOTOR CO.

Fig 66: Ignition Switch Connector End View (C250)

G07844668

Courtesy of FORD MOTOR CO.

Fig 67: Data Link Connector (DLC) Connector End View (C251)

G07844669

Courtesy of FORD MOTOR CO.

Fig 68: Passive Anti-Theft Transceiver Connector End View (C252)

G07844670

Courtesy of FORD MOTOR CO.

Fig 69: Passenger Air Bag Module Connector End View (C256a)

G07844671

Courtesy of FORD MOTOR CO.

Fig 70: Passenger Air Bag Module Connector End View (C256b)

G07844672

Courtesy of FORD MOTOR CO.

Fig 71: Brake Pedal Position Switch Connector End View (C278)

G07844673

Courtesy of FORD MOTOR CO.

Fig 72: Autolamp/Sunload Sensor Connector End View (C286)

G07844674

Courtesy of FORD MOTOR CO.

Fig 73: Fresh/Recirculation Door Actuator Connector End View (C289)

G07844675

Courtesy of FORD MOTOR CO.

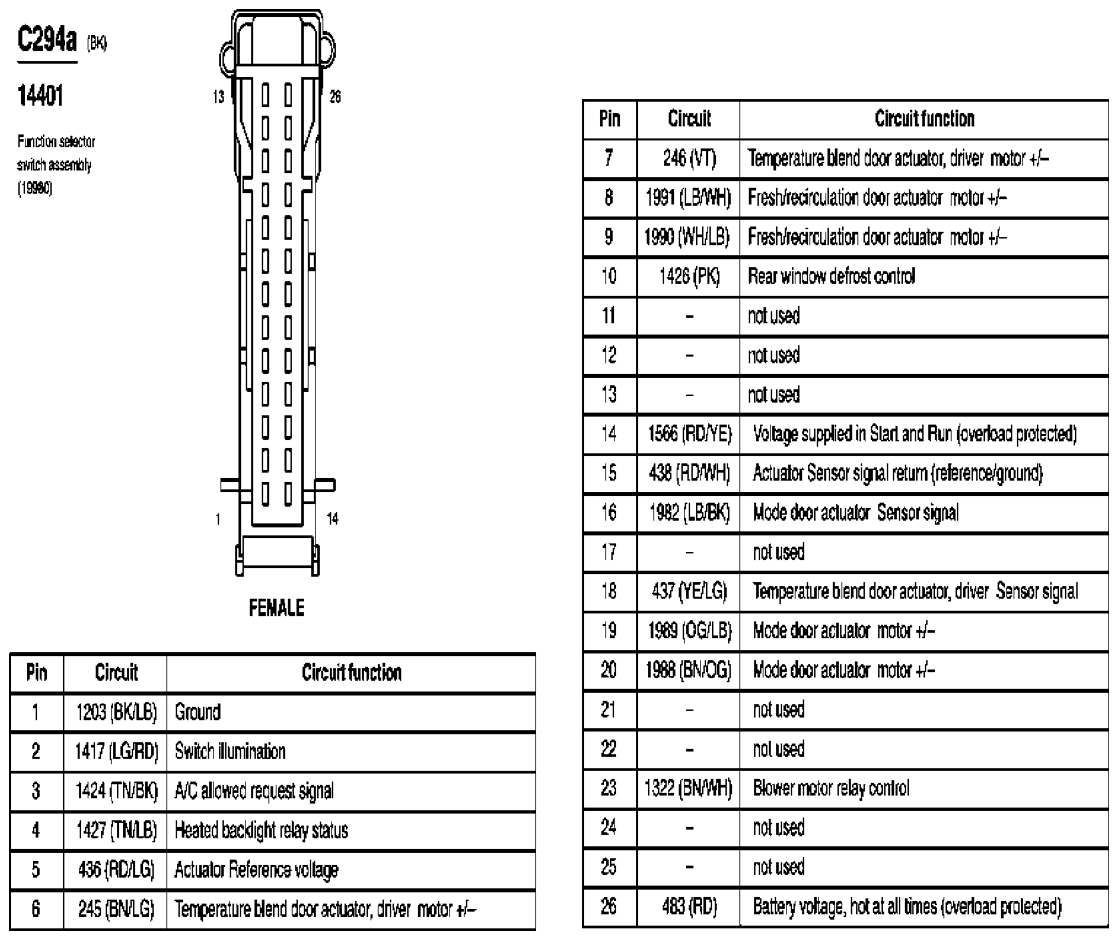

Fig 74: Function Selector Switch Assembly Connector End View (C294a)

G07844676

Courtesy of FORD MOTOR CO.

Fig 75: Function Selector Switch Assembly Connector End View (C294b)

G07844677

Courtesy of FORD MOTOR CO.

Fig 76: Evaporator Discharge Air Temperature Sensor Connector End View (C296)

G07844678

Courtesy of FORD MOTOR CO.

Fig 77: Parking Brake Switch Connector End View (C306)

G07844679

Courtesy of FORD MOTOR CO.

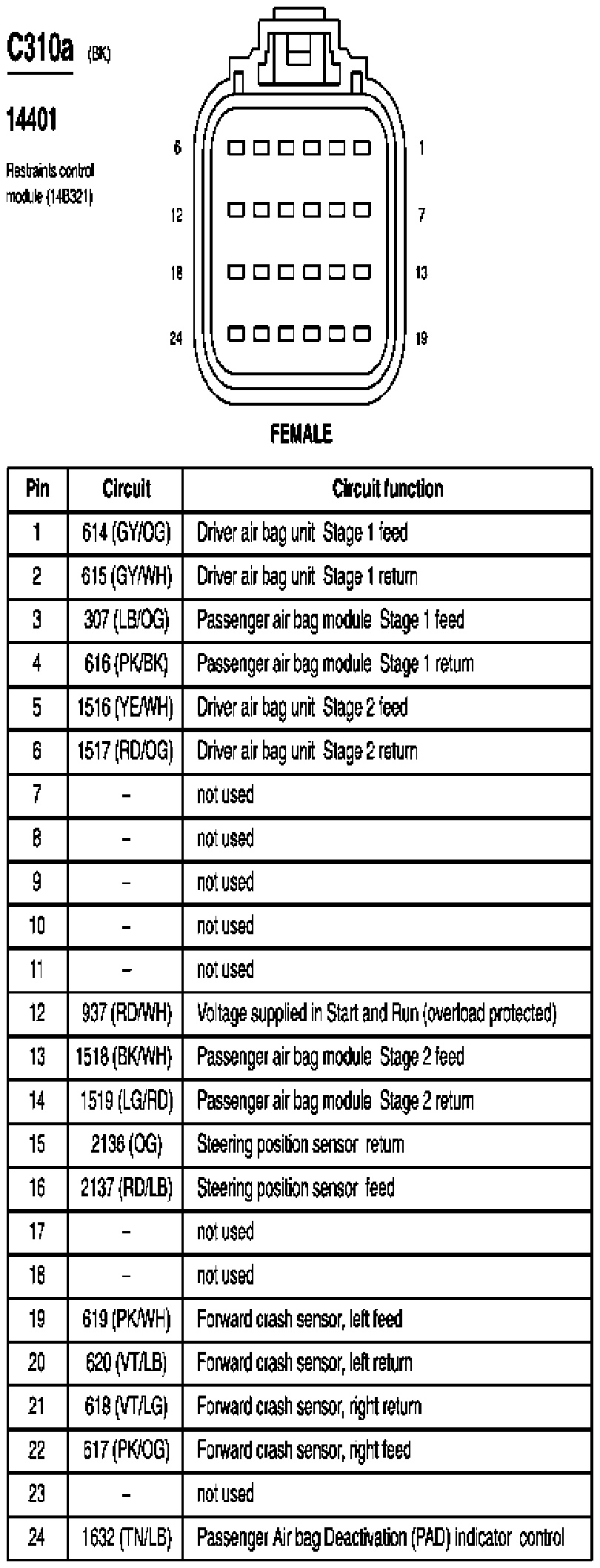

Fig 78: Restraints Control Module Connector End View (C310a)

G07844680

Courtesy of FORD MOTOR CO.

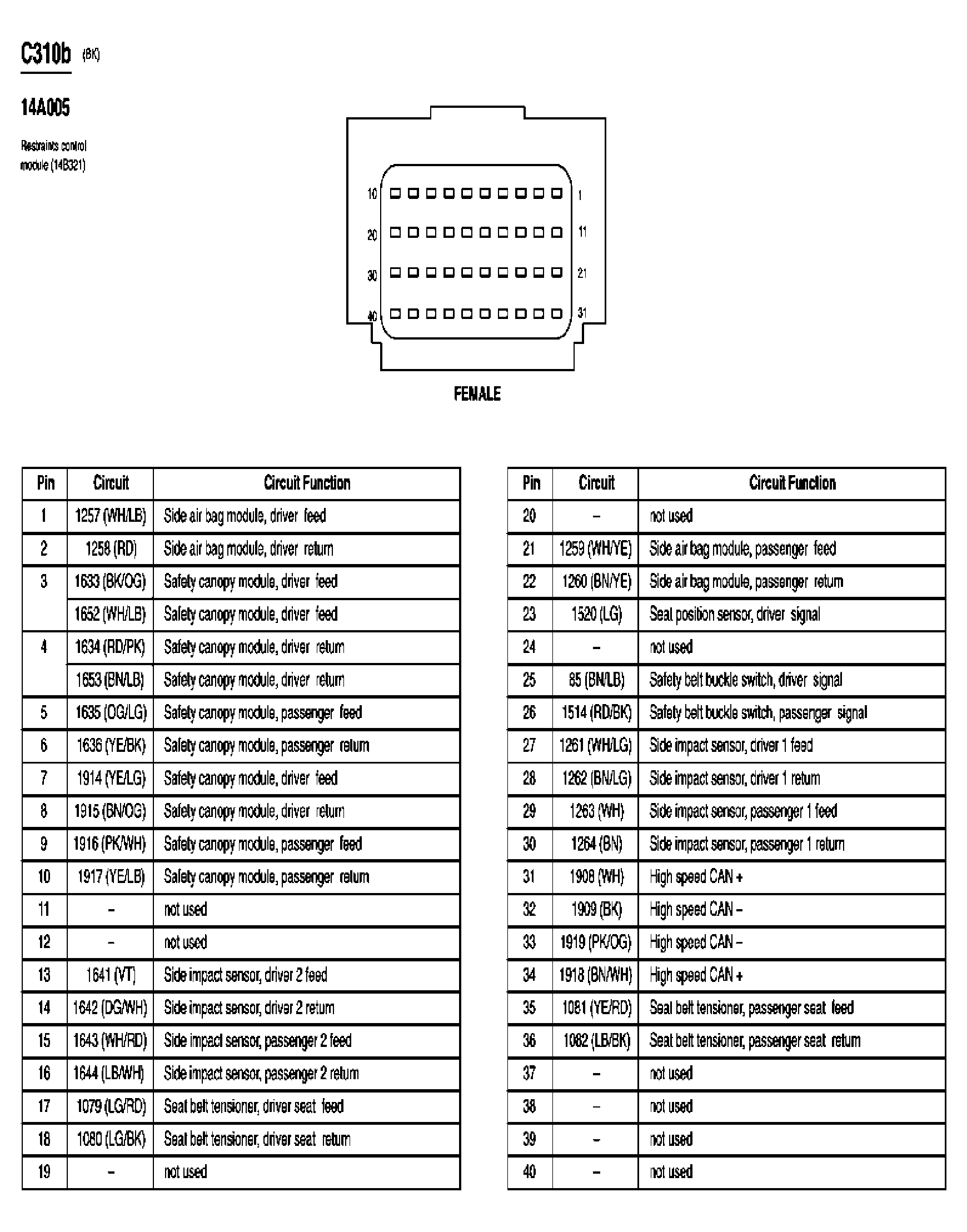

Fig 79: Restraints Control Module Connector End View (C310b)

G03994328

Courtesy of FORD MOTOR CO.

Fig 80: Inline Connector End View (C314)

G07844681

Courtesy of FORD MOTOR CO.

Fig 81: Inline Connector End View (C315)

G07844682

Courtesy of FORD MOTOR CO.

Fig 82: Inline Connector End View (C327)

G07844683

Courtesy of FORD MOTOR CO.

Fig 83: Inline Connector End View (C328)

G07844684

Courtesy of FORD MOTOR CO.

Fig 84: Heated Seat Module, Passenger Side Front Connector End View (C329)

G07844685

Courtesy of FORD MOTOR CO.

Fig 85: Seat Adjust Switch, Passenger Side Front Connector End View (C330)

G07844686

Courtesy of FORD MOTOR CO.

Fig 86: Passenger Seat Horizontal Motor Connector End View (C332)

G07844687

Courtesy of FORD MOTOR CO.

Fig 87: Seat Cushion Heater, Right Front Connector End View (C334)

G07844688

Courtesy of FORD MOTOR CO.

Fig 88: Seat Back Heater, Right Front Connector End View (C335)

G07844689

Courtesy of FORD MOTOR CO.

Fig 89: Inline Connector End View (C339)

G07844690

Courtesy of FORD MOTOR CO.

Fig 90: Inline Connector End View (C340)

G07844691

Courtesy of FORD MOTOR CO.

Fig 91: Driver Seat Module Connector End View (C341a)

G07844692

Courtesy of FORD MOTOR CO.

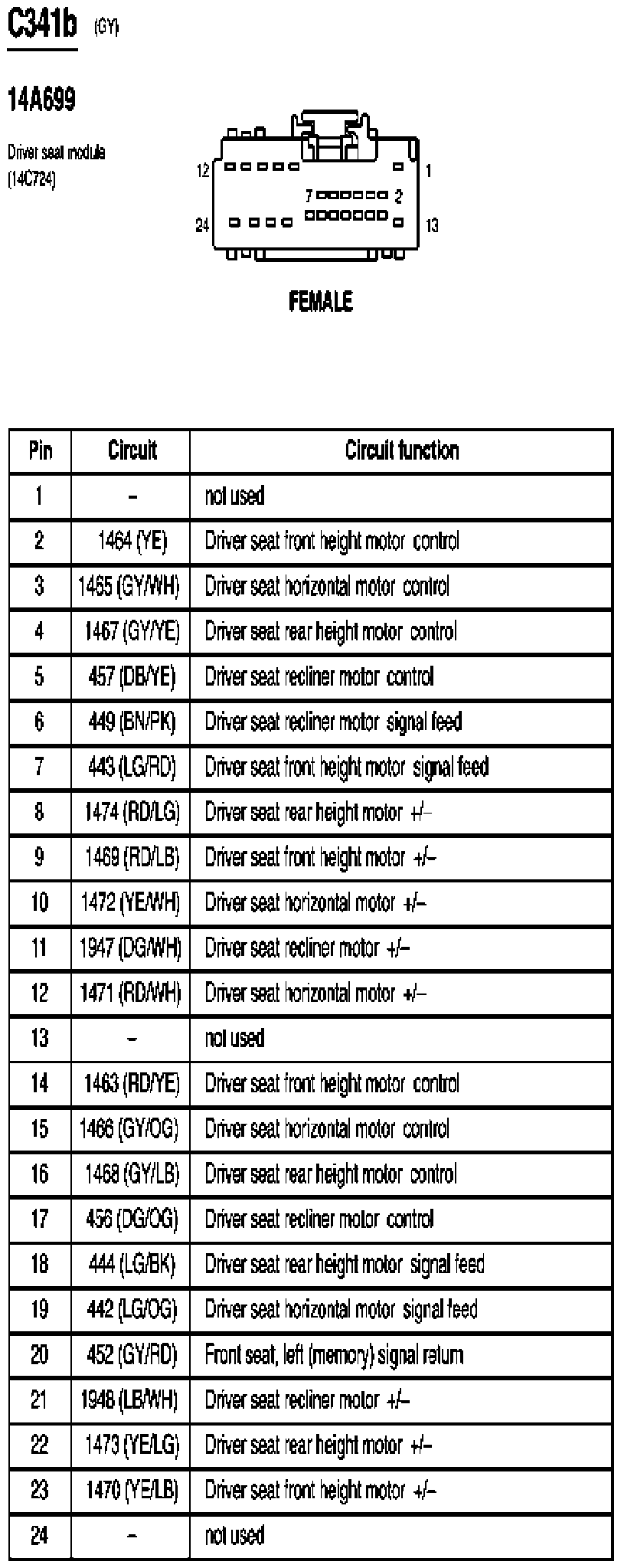

Fig 92: Driver Seat Module Connector End View (C341b)

G07844693

Courtesy of FORD MOTOR CO.

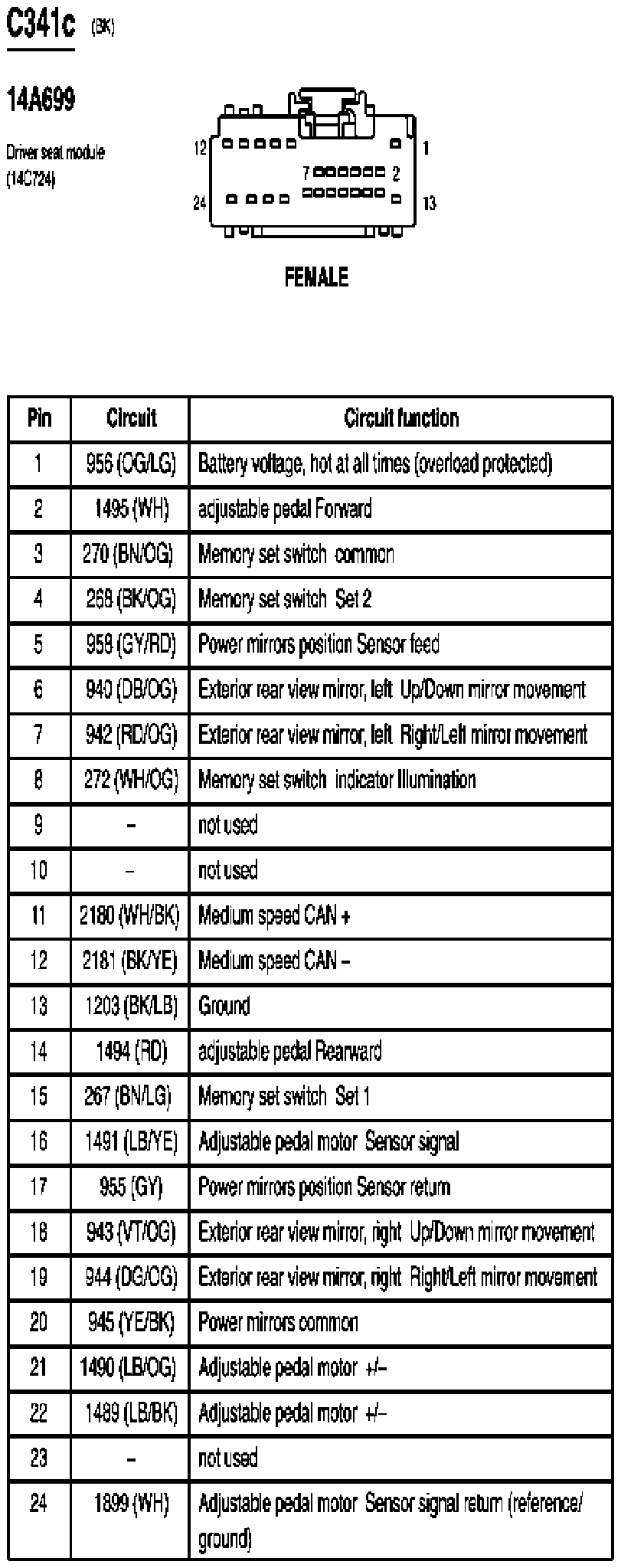

Fig 93: Driver Seat Module Connector End View (C341c)

G07844694

Courtesy of FORD MOTOR CO.

Fig 94: Driver Seat Module Connector End View (C341d)

G07844695

Courtesy of FORD MOTOR CO.

Fig 95: Seat Belt Tensioner, Driver Seat Connector End View (C354)

G07844696

Courtesy of FORD MOTOR CO.

Fig 96: Seat Position Sensor, Driver Connector End View (C356)

G07844697

Courtesy of FORD MOTOR CO.

Fig 97: Heated Seat Module, Driver Side Front Connector End View (C359)

G07844698

Courtesy of FORD MOTOR CO.

Fig 98: Seat Adjust Switch, Driver Side Front Connector End View (C360)

G07844699

Courtesy of FORD MOTOR CO.

Fig 99: Driver Seat Horizontal Motor Connector End View (C362)

G07844700

Courtesy of FORD MOTOR CO.

Fig 100: Driver Seat Rear Height Motor Connector End View (C363)

G07844701

Courtesy of FORD MOTOR CO.

Fig 101: Seat Cushion Heater, Left Front Connector End View (C364)

G07844702

Courtesy of FORD MOTOR CO.

Fig 102: Seat Back Heater, Left Front Connector End View (C365)

G07844703

Courtesy of FORD MOTOR CO.

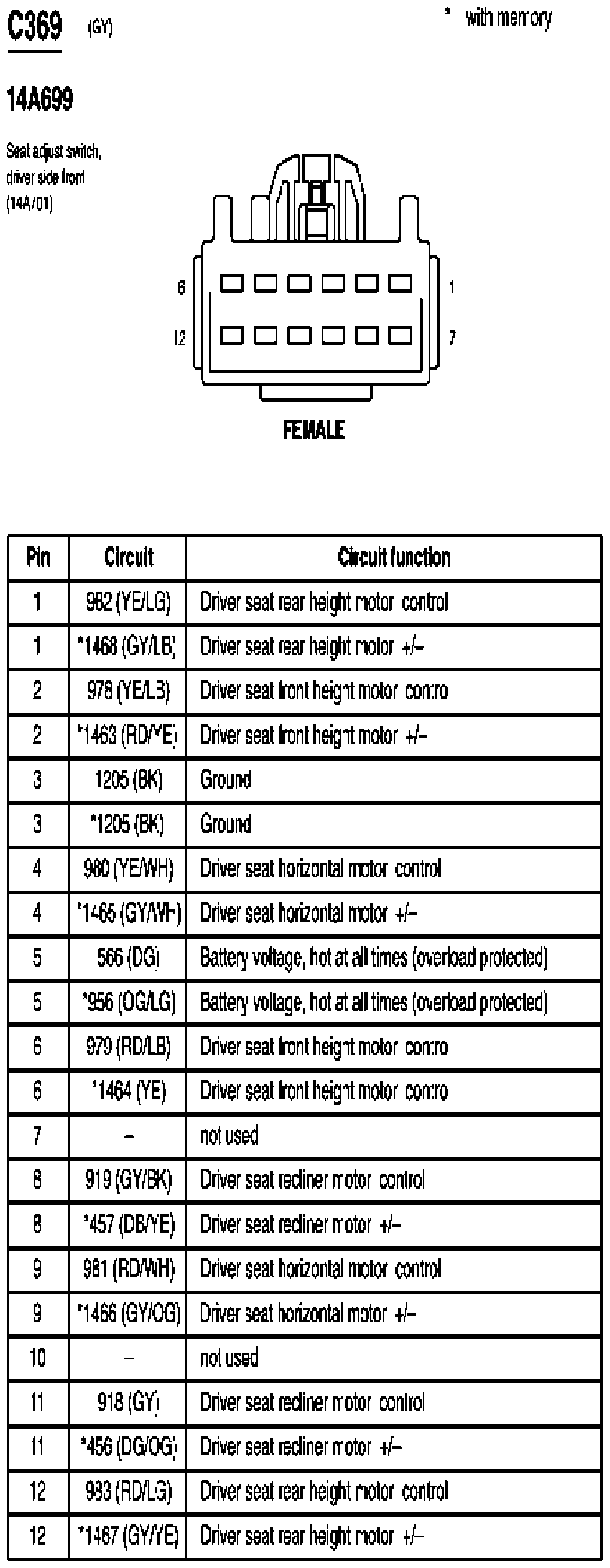

Fig 103: Seat Adjust Switch, Driver Side Front Connector End View (C369)

G07844704

Courtesy of FORD MOTOR CO.

Fig 104: Power Point, Console Connector End View (C380)

G07844705

Courtesy of FORD MOTOR CO.

Fig 105: Driver Seat Front Height Motor Connector End View (C382)

G07844706

Courtesy of FORD MOTOR CO.

Fig 106: Seat Belt Tensioner, Passenger Seat Connector End View (C389)

G07844707

Courtesy of FORD MOTOR CO.

Fig 107: Inertia Fuel Shutoff (IFS) Switch Connector End View (C392)

G07844708

Courtesy of FORD MOTOR CO.

Fig 108: Rear Window Defrost Grid Connector End View (C402a)

G07844709

Courtesy of FORD MOTOR CO.

Fig 109: Rear Window Defrost Grid Connector End View (C402b)

G07844710

Courtesy of FORD MOTOR CO.

Fig 110: Inline Connector End View (C410)

G07844711

Courtesy of FORD MOTOR CO.

Fig 111: Inline Connector End View (C411)

G07844712

Courtesy of FORD MOTOR CO.

Fig 112: Lamp Assembly, Left Rear Connector End View (C414)

G07844713

Courtesy of FORD MOTOR CO.

Fig 113: Lamp Assembly, Right Rear Connector End View (C417)

G07844714

Courtesy of FORD MOTOR CO.

Fig 114: Luggage Compartment Lamp Connector End View (C428)

G07844715

Courtesy of FORD MOTOR CO.

Fig 115: License Plate Lamp, Left Connector End View (C452)

G07844716

Courtesy of FORD MOTOR CO.

Fig 116: License Plate Lamp, Right Connector End View (C462)

G07844717

Courtesy of FORD MOTOR CO.

Fig 117: Subwoofer Amplifier Connector End View (C466a)

G07844718

Courtesy of FORD MOTOR CO.

Fig 118: Subwoofer Amplifier Connector End View (C466b)

G07844719

Courtesy of FORD MOTOR CO.

Fig 119: Power Point, Rear Connector End View (C474)

G07844720

Courtesy of FORD MOTOR CO.

Fig 120: Rear Wiper Motor Assembly Connector End View (C476)

G07844721

Courtesy of FORD MOTOR CO.

Fig 121: Liftgate Ajar Switch Connector End View (C479)

G07844722

Courtesy of FORD MOTOR CO.

Fig 122: License Lamps Connector End View (C490)

G07844723

Courtesy of FORD MOTOR CO.

Fig 123: Key Pad Switch Assembly Connector End View (C500)

G07844724

Courtesy of FORD MOTOR CO.

Fig 124: Memory Set Switch Connector End View (C503)

G07844725

Courtesy of FORD MOTOR CO.

Fig 125: Master Window Adjust Switch Connector End View (C504a)

G07844726

Courtesy of FORD MOTOR CO.

Fig 126: Master Window Adjust Switch Connector End View (C504b)

G07844727

Courtesy of FORD MOTOR CO.

Fig 127: Anti-Theft Alarm Inhibit Switch Connector End View (C509)

G03994345

Courtesy of FORD MOTOR CO.

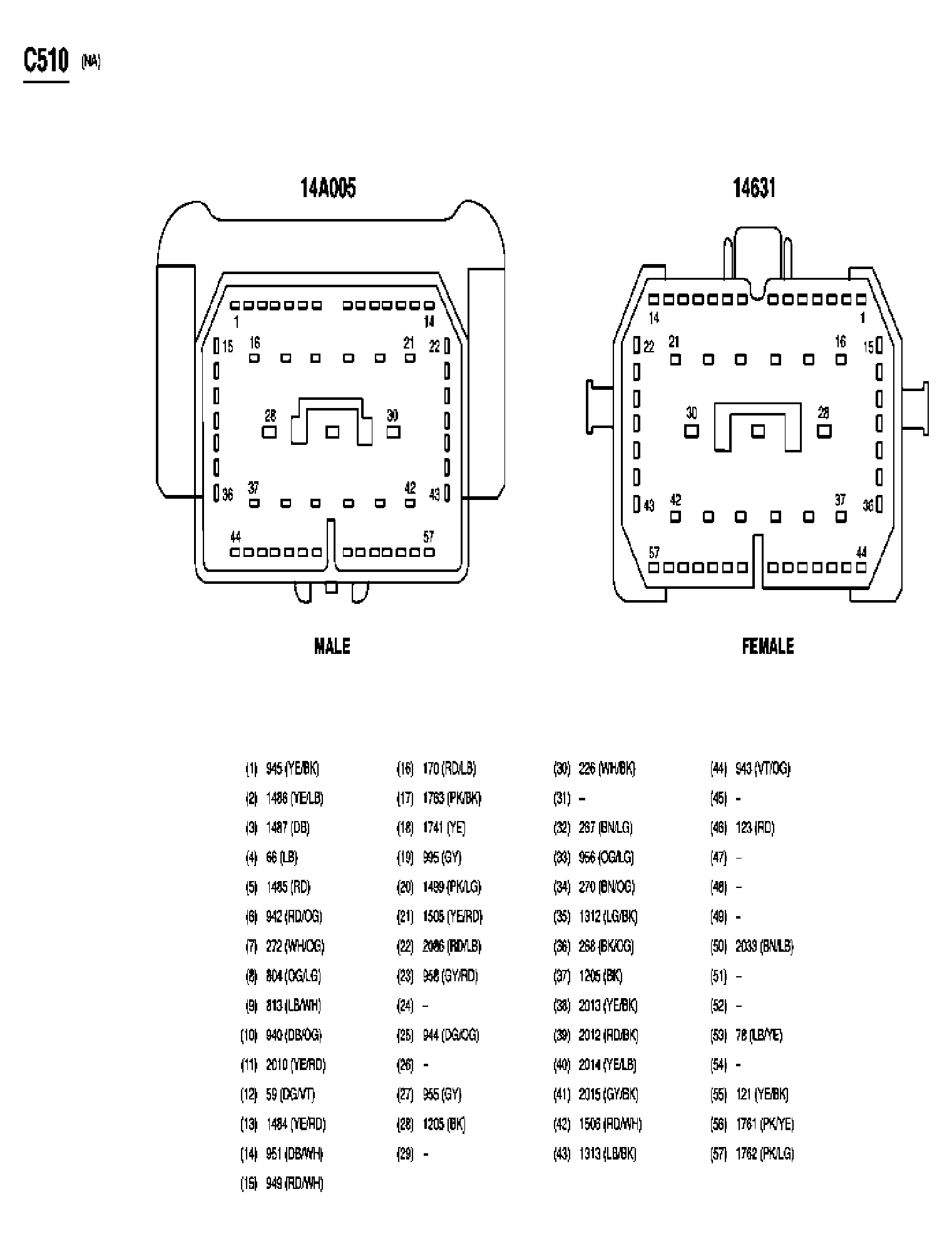

Fig 128: Inline Connector End View (C510)

G03994346

Courtesy of FORD MOTOR CO.

Fig 129: Exterior Rear View Mirror, Left Connector End View (C516)

G07844728

Courtesy of FORD MOTOR CO.

Fig 130: Exterior Rear View Mirror, Left Connector End View (C522)

G07844729

Courtesy of FORD MOTOR CO.

Fig 131: Exterior Rear View Mirror, Left Connector End View (C522)

G07844730

Courtesy of FORD MOTOR CO.

Fig 132: Power Window Motor, Driver Side Front Connector End View (C524)

G07844731

Courtesy of FORD MOTOR CO.

Fig 133: Door Lock Actuator, Left Front Connector End View (C525)

G07844732

Courtesy of FORD MOTOR CO.

Fig 134: Door Ajar Switch, Left Front Connector End View (C526)

G07844733

Courtesy of FORD MOTOR CO.

Fig 135: Exterior Rear View Mirror Switch Connector End View (C527)

G07844734

Courtesy of FORD MOTOR CO.

Fig 136: Door Lock Switch, Driver Side Connector End View (C541)

G07844735

Courtesy of FORD MOTOR CO.

Fig 137: Door Ajar Switch, Right Front Connector End View (C602)

G07844736

Courtesy of FORD MOTOR CO.

Fig 138: Door Lock Actuator, Right Front Connector End View (C603)

G07844737

Courtesy of FORD MOTOR CO.

Fig 139: Window Adjust Switch, Passenger Side Connector End View (C604)

G07844738

Courtesy of FORD MOTOR CO.

Fig 140: Door Lock Switch, Passenger Side Connector End View (C605)

G07844739

Courtesy of FORD MOTOR CO.

Fig 141: Power Window Motor Passenger Side Front Connector End View (C608)

G03994350

Courtesy of FORD MOTOR CO.

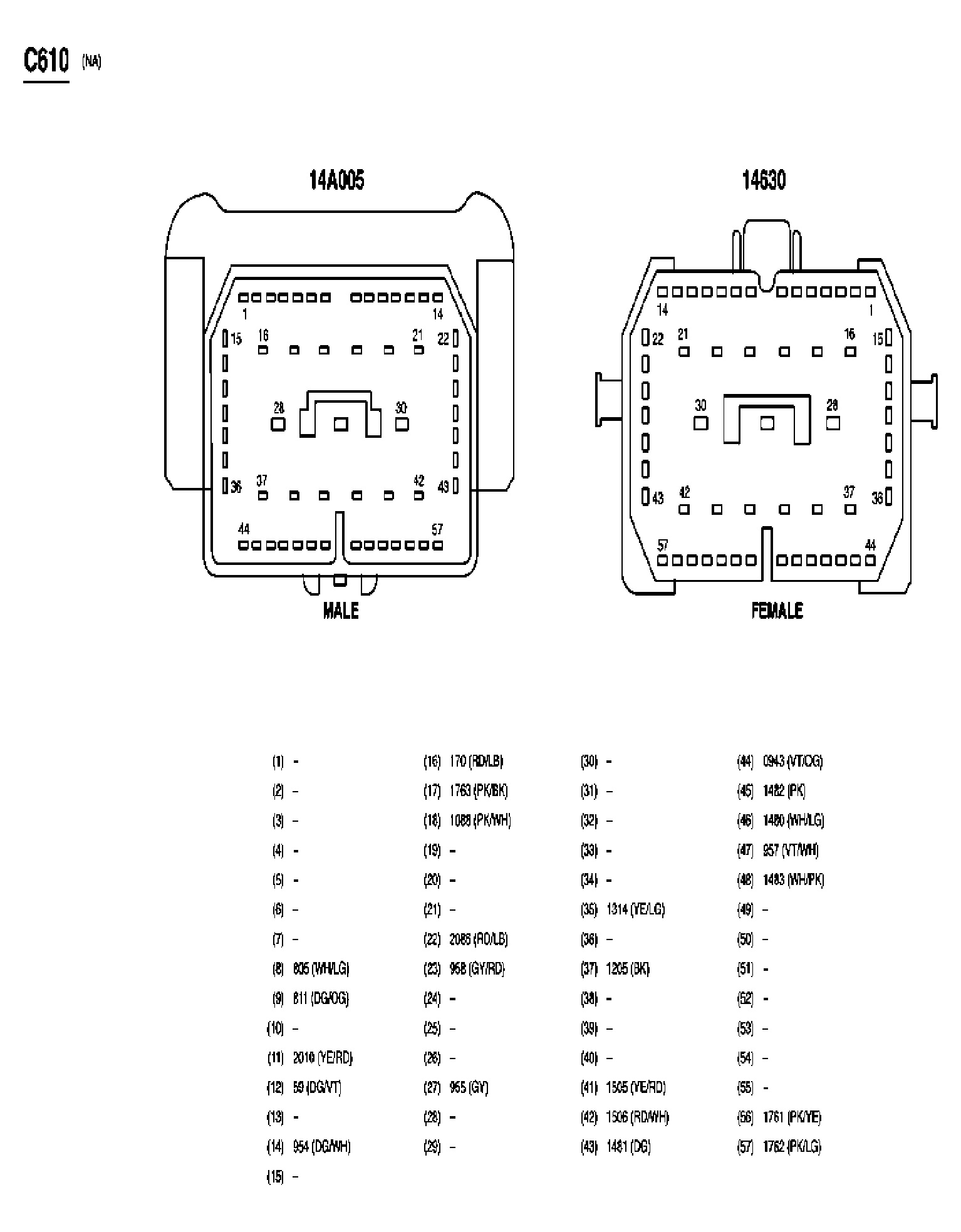

Fig 142: Inline Connector End View (C610)

G03994351

Courtesy of FORD MOTOR CO.

Fig 143: Speaker, Right Front Connector End View (C612)

G07844740

Courtesy of FORD MOTOR CO.

Fig 144: Exterior Rear View Mirror, Right Connector End View (C622)

G07844741

Courtesy of FORD MOTOR CO.

Fig 145: Exterior Rear View Mirror, Right Connector End View (C625)

G07844742

Courtesy of FORD MOTOR CO.

Fig 146: Window Adjust Switch, Left Rear Connector End View (C701)

G07844743

Courtesy of FORD MOTOR CO.

Fig 147: Speaker, Left Rear Connector End View (C702)

G07844744

Courtesy of FORD MOTOR CO.

Fig 148: Power Window Motor, Left Rear Connector End View (C703)

G07844745

Courtesy of FORD MOTOR CO.

Fig 149: Door Lock Actuator, Left Rear Connector End View (C704)

G07844746

Courtesy of FORD MOTOR CO.

Fig 150: Inline Connector End View (C710)

G07844747

Courtesy of FORD MOTOR CO.

Fig 151: Door Ajar Switch, Left Rear Connector End View (C715)

G07844748

Courtesy of FORD MOTOR CO.

Fig 152: Window Adjust Switch, Right Rear Connector End View (C801)

G07844749

Courtesy of FORD MOTOR CO.

Fig 153: Speaker, Right Rear Connector End View (C802)

G07844750

Courtesy of FORD MOTOR CO.

Fig 154: Power Window Motor, Right Rear Connector End View (C803)

G07844751

Courtesy of FORD MOTOR CO.

Fig 155: Inline Connector End View (C810)

G07844752

Courtesy of FORD MOTOR CO.

Fig 156: Door Ajar Switch, Right Rear Connector End View (C820)

G07844753

Courtesy of FORD MOTOR CO.

Fig 157: High Mounted Stoplamp Connector End View (C904)

G07844754

Courtesy of FORD MOTOR CO.

Fig 158: Vanity Mirror Lamp, Right Connector End View (C906)

G07844755

Courtesy of FORD MOTOR CO.

Fig 159: Vanity Mirror Lamp, Left Connector End View (C907)

G07844756

Courtesy of FORD MOTOR CO.

Fig 160: Electronic Compass Connector End View (C909)

G07844757

Courtesy of FORD MOTOR CO.

Fig 161: Electrochromatic Inside Mirror Unit Connector End View (C911)

G07844758

Courtesy of FORD MOTOR CO.

Fig 162: Inline Connector End View (C913)

G07844759

Courtesy of FORD MOTOR CO.

Fig 163: Inline Connector End View (C919)

G07844760

Courtesy of FORD MOTOR CO.

Fig 164: Roof Opening Panel Module Connector End View (C921)

G07844761

Courtesy of FORD MOTOR CO.

Fig 165: Inline Connector End View (C922)

G07844762

Courtesy of FORD MOTOR CO.

Fig 166: Interior/Map Lamps Assembly, Front Connector End View (C929)

G07844763

Courtesy of FORD MOTOR CO.

Fig 167: Inline Connector End View (C925)

G07844764

Courtesy of FORD MOTOR CO.

Fig 168: Overhead Console Connector End View (C930)

G07844765

Courtesy of FORD MOTOR CO.

Fig 169: Inline Connector End View (C936)

G07844766

Courtesy of FORD MOTOR CO.

Fig 170: Interior/Map Lamp Assembly, Second Row Seat Connector End View (C961)

G07844767

Courtesy of FORD MOTOR CO.

Fig 171: Interior/Map Lamp Assembly, Third Tow Seat Connector End View (C963)

G07844768

Courtesy of FORD MOTOR CO.

Fig 172: Inline Connector End View (C983)

G07844769

Courtesy of FORD MOTOR CO.

Fig 173: Auxiliary Function Selector Switch Assembly, Rear Connector End View (C990)

G07844770

Courtesy of FORD MOTOR CO.

Fig 174: Inline Connector End View (C991)

G07844771

Courtesy of FORD MOTOR CO.

Fig 175: Auxiliary Coolant Pump Relay Connector End View (C1005)

G07844772

Courtesy of FORD MOTOR CO.

Fig 176: Fog Lamp Relay Connector End View (C1007)

G07844773

Courtesy of FORD MOTOR CO.

Fig 177: A/C Clutch Relay Connector End View (C1008)

G07844774

Courtesy of FORD MOTOR CO.

Fig 178: Blower Motor Relay Connector End View (C1011)

G07844775

Courtesy of FORD MOTOR CO.

Fig 179: PCM Power Relay Connector End View (C1016)

G07844776

Courtesy of FORD MOTOR CO.

Fig 180: Starter Relay Connector End View (C1017)

G07844777

Courtesy of FORD MOTOR CO.

Fig 181: PCM Power Diode Connector End View (C1018)

G07844778

Courtesy of FORD MOTOR CO.

Fig 182: Low Beam Lamp, Left Front Connector End View (C1020)

G07844779

Courtesy of FORD MOTOR CO.

Fig 183: Headlamp, Left Connector End View (C1021)

G07844780

Courtesy of FORD MOTOR CO.

Fig 184: Park/Turn Lamp, Left Front Connector End View (C1023)

G07844781

Courtesy of FORD MOTOR CO.

Fig 185: Battery Junction Box (BJB) Connector End View (C1035)

G07844782

Courtesy of FORD MOTOR CO.

Fig 186: High Beam Lamp, Right Front Connector End View (C1040)

G07844783

Courtesy of FORD MOTOR CO.

Fig 187: Headlamp, Right Connector End View (C1041)

G07844784

Courtesy of FORD MOTOR CO.

Fig 188: Park/Turn Lamp, Right Front Connector End View (C1043)

G07844785

Courtesy of FORD MOTOR CO.

Fig 189: Engine Cooling Fan Motor Connector End View (C1048)

G07844786

Courtesy of FORD MOTOR CO.

Fig 190: Fuel Pump Relay Connector End View (C1051)

G07844787

Courtesy of FORD MOTOR CO.

Fig 191: Engine Coolant Temperature (ECT) Sensor Connector End View (C1064)

G07844788

Courtesy of FORD MOTOR CO.

Fig 192: Low Coolant Level Switch Connector End View (C1069)

G07844789

Courtesy of FORD MOTOR CO.

Fig 193: Fuel Rail Pressure/Temperature Sensor Connector End View (C1073)

G07844790

Courtesy of FORD MOTOR CO.

Fig 194: A/C Compressor Clutch Diode Connector End View (C1086)

G07844791

Courtesy of FORD MOTOR CO.

Fig 195: Battery Connector End View (C1100a)

G07844792

Courtesy of FORD MOTOR CO.

Fig 196: Battery Connector End View (C1100b)

G07844793

Courtesy of FORD MOTOR CO.

Fig 197: High Beam Lamp, Left Front Connector End View (C1111)

G07844794

Courtesy of FORD MOTOR CO.

Fig 198: Low Beam Lamp, Right Front Connector End View (C1112)

G07844795

Courtesy of FORD MOTOR CO.

Fig 199: Joint Connector 1 Connector End View (C1117)

G07844796

Courtesy of FORD MOTOR CO.

Fig 200: Joint Connector 2 Connector End View (C1118)

G07844797

Courtesy of FORD MOTOR CO.

Fig 201: Side Lamp, Right Front Connector End View (C1126)

G07844798

Courtesy of FORD MOTOR CO.

Fig 202: Side Lamp, Left Front Connector End View (C1127)

G07844799

Courtesy of FORD MOTOR CO.

Fig 203: Electric EGR Motor Connector End View (C1160)

G07844800

Courtesy of FORD MOTOR CO.

Fig 204: Electric Throttle Control (ETC) Module Connector End View (C1189)

G07844801

Courtesy of FORD MOTOR CO.

Fig 205: Vapor Management Valve Connector End View (C1195)

G07844802

Courtesy of FORD MOTOR CO.

Fig 206: Ignition Transformer Capacitor Connector End View (C1196)

G07844803

Courtesy of FORD MOTOR CO.

Fig 207: Headlamp, Left Connector End View (C1284)

G07844804

Courtesy of FORD MOTOR CO.

Fig 208: Headlamp, Right Connector End View (C1285)

G07844805

Courtesy of FORD MOTOR CO.

Fig 209: Two-Way Washer Pump Motor Connector End View (C1397)

G07844806

Courtesy of FORD MOTOR CO.

Fig 210: Forward Crash Sensor, Left Connector End View (C1465)

G07844807

Courtesy of FORD MOTOR CO.

Fig 211: Forward Crash Sensor, Right Connector End View (C1466)

G07844808

Courtesy of FORD MOTOR CO.

Fig 212: Windshield Wiper Relay Connector End View (C1491)

G07844809

Courtesy of FORD MOTOR CO.

Fig 213: Adjustable Pedal Motor Connector End View (C2003)

G07844810

Courtesy of FORD MOTOR CO.

Fig 214: Front Blower Motor Connector End View (C2004)

G07844811

Courtesy of FORD MOTOR CO.

Fig 215: Clock Connector End View (C2016)

G07844812

Courtesy of FORD MOTOR CO.

Fig 216: Power Point, Instrument Panel Connector End View (C2033)

G07844813

Courtesy of FORD MOTOR CO.

Fig 217: Accelerator Pedal Position Sensor Connector End View (C2040)

G07844814

Courtesy of FORD MOTOR CO.

Fig 218: Illumination Dimmer Connector End View (C2065)

G07844815

Courtesy of FORD MOTOR CO.

Fig 219: Adjustable Pedal Switch Connector End View (C2089)

G07844816

Courtesy of FORD MOTOR CO.

Fig 220: Temperature Blend Door Actuator, Driver Connector End View (C2091)

G07844817

Courtesy of FORD MOTOR CO.

Fig 221: Temperature Blend Door Actuator, Passenger Connector End View (C2092)

G07844818

Courtesy of FORD MOTOR CO.

Fig 222: Traction Assist/Parking Aid Disable Switch Connector End View (C2114)

G07844819

Courtesy of FORD MOTOR CO.

Fig 223: Blower Motor Resistor Connector End View (C2185)

G07844820

Courtesy of FORD MOTOR CO.

Fig 224: Redundant Pedal Switch Connector End View (C2227)

G07844821

Courtesy of FORD MOTOR CO.

Fig 225: Liftgate/Decklid Release Switch Connector End View (C2269)

G07844822

Courtesy of FORD MOTOR CO.

Fig 226: Clock Spring Connector End View (C2274a)

G07844823

Courtesy of FORD MOTOR CO.

Fig 227: Clock Spring Connector End View (C2274b)

G07844824

Courtesy of FORD MOTOR CO.

Fig 228: Mode Door Actuator Connector End View (C2278)

G07844825

Courtesy of FORD MOTOR CO.

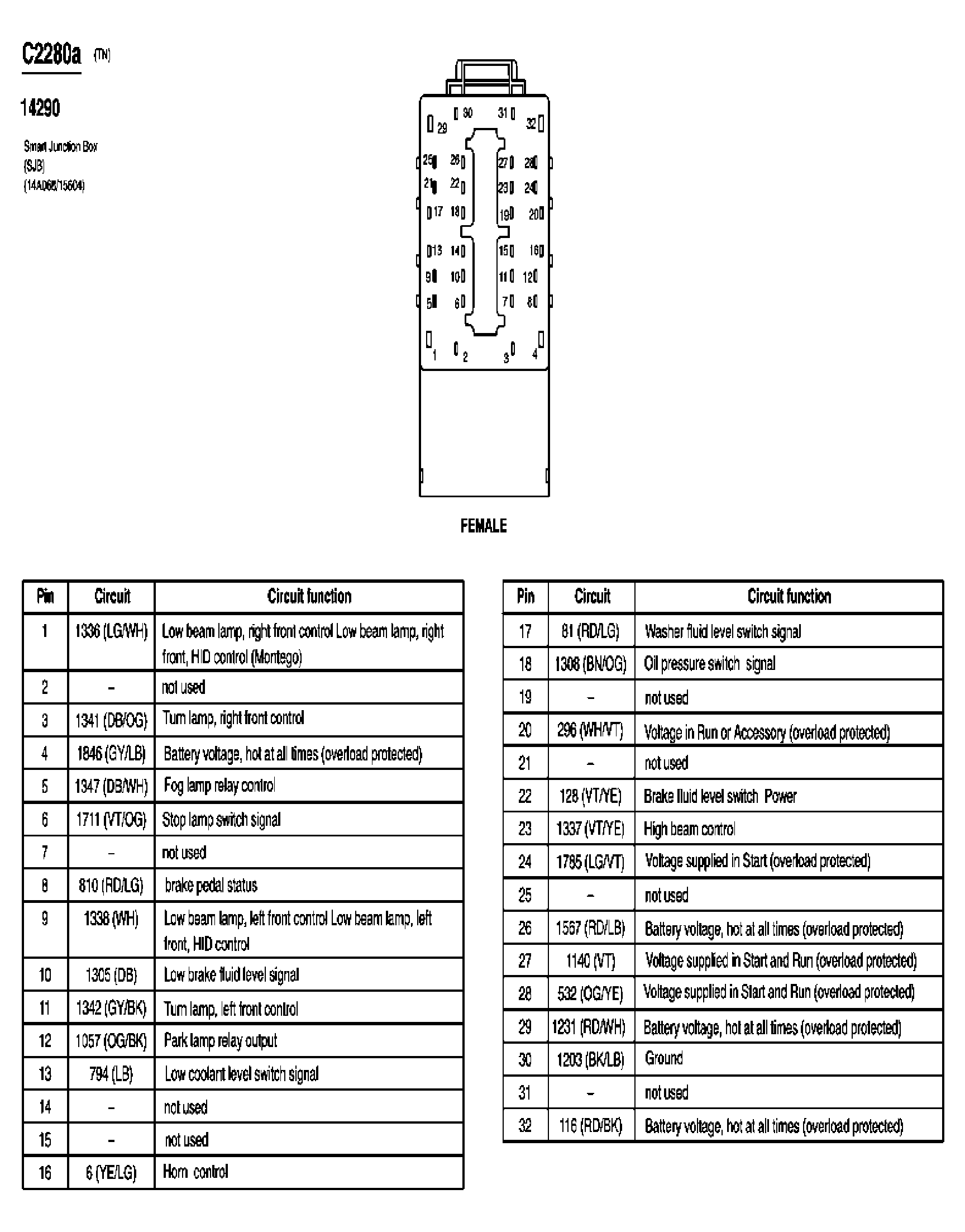

Fig 229: Smart Junction Box (SJB) Connector End View (C2280a)

G03994378

Courtesy of FORD MOTOR CO.

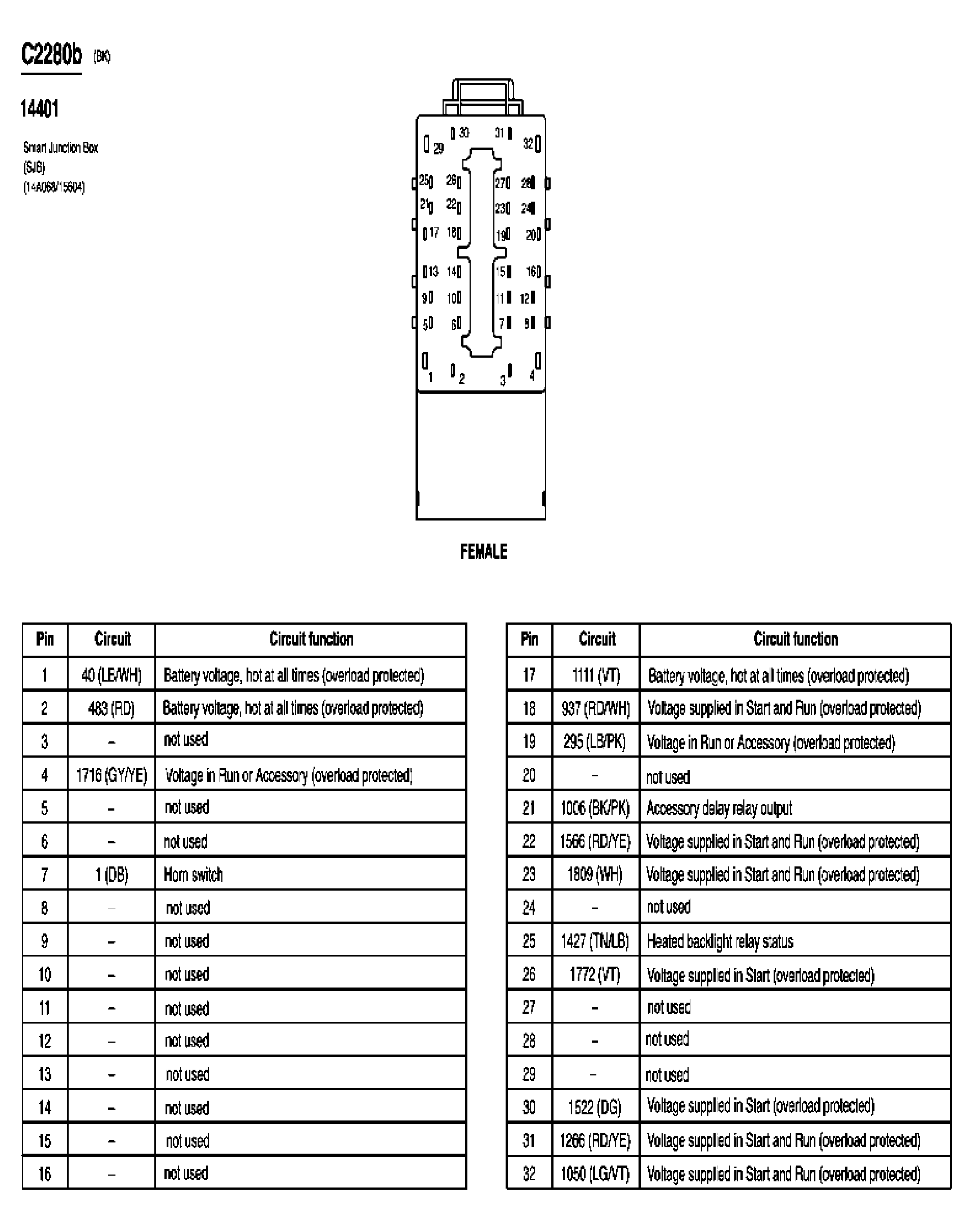

Fig 230: Smart Junction Box (SJB) Connector End View (C2280b)

G03994379

Courtesy of FORD MOTOR CO.

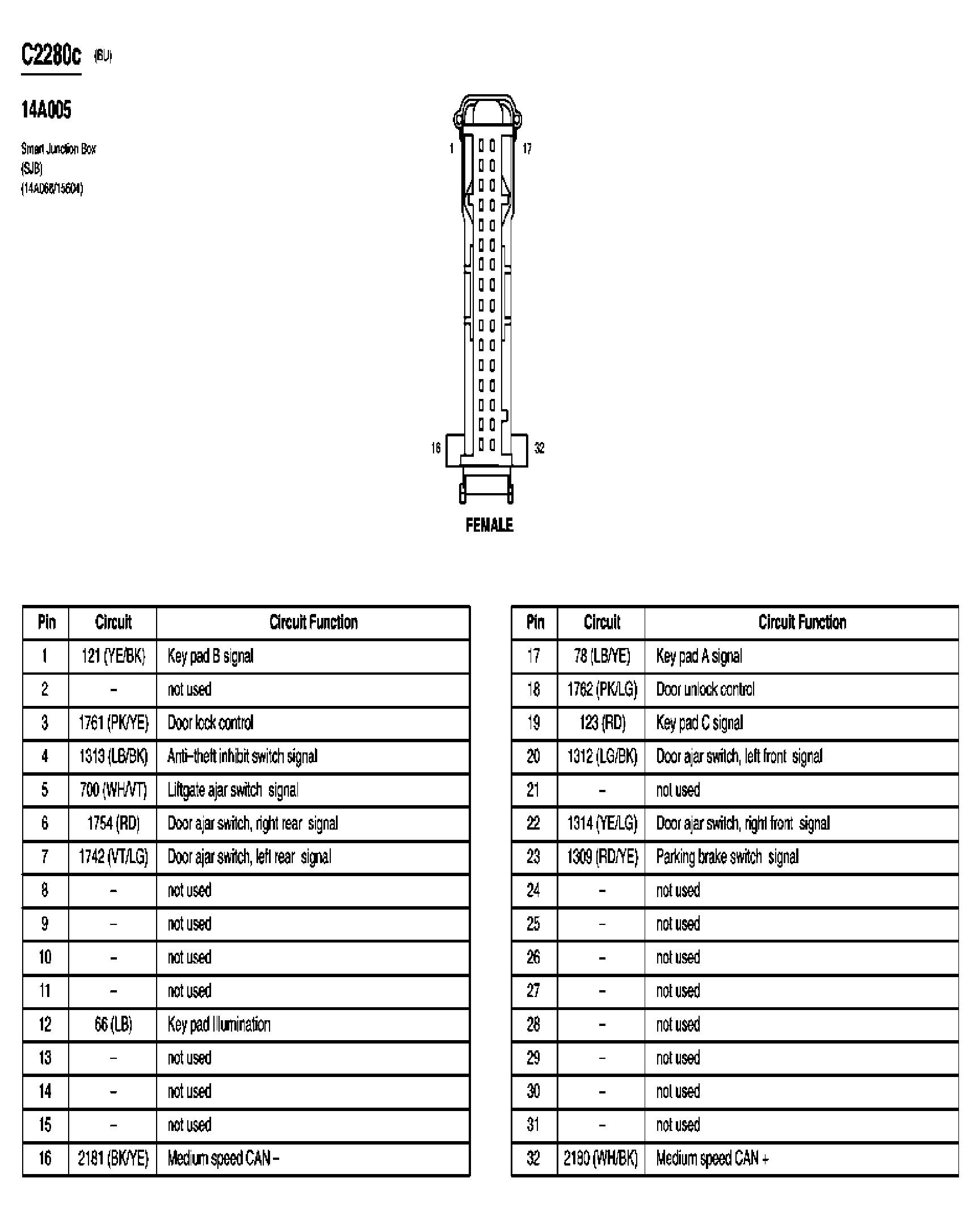

Fig 231: Smart Junction Box (SJB) Connector End View (C2280c)

G03994380

Courtesy of FORD MOTOR CO.

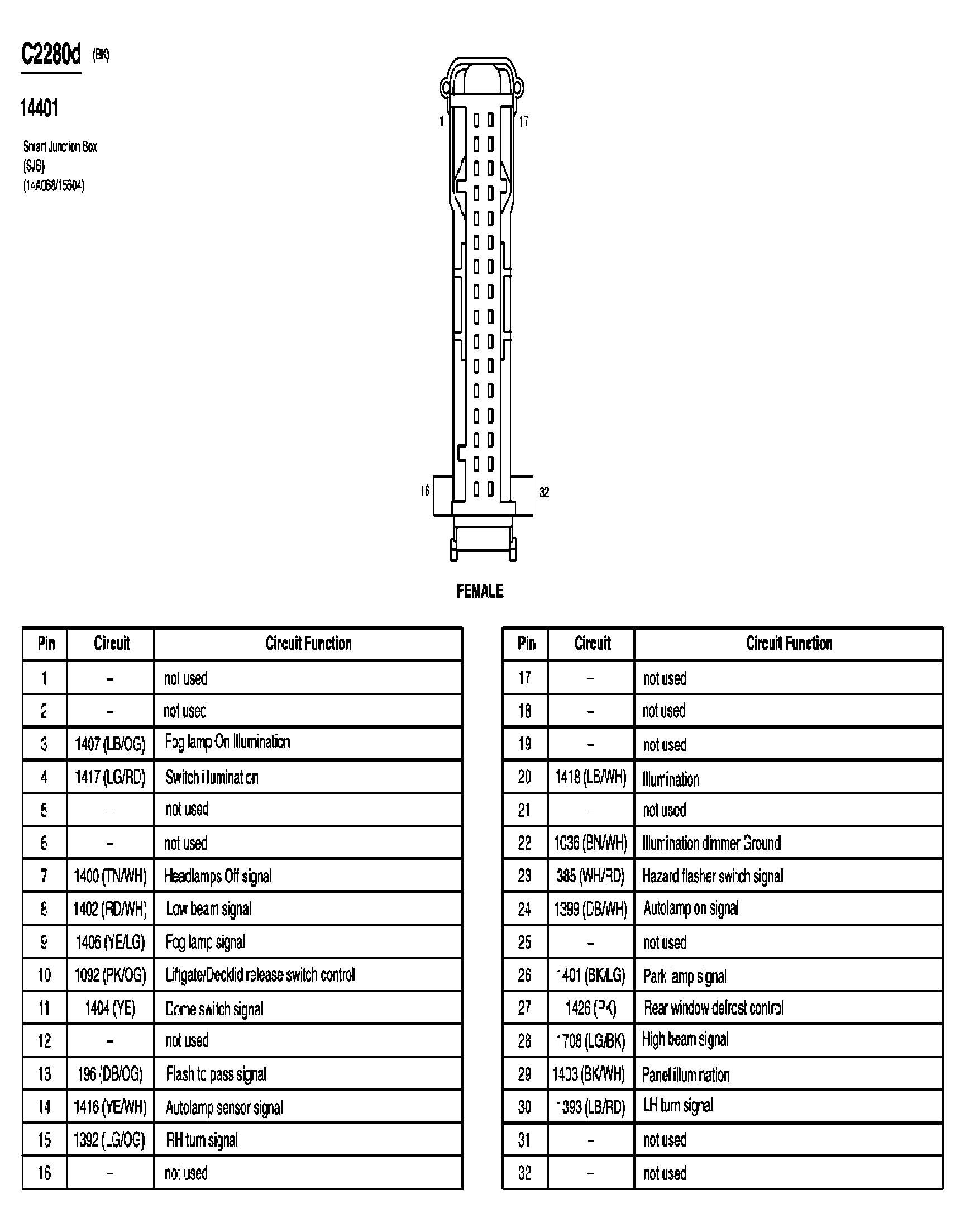

Fig 232: Smart Junction Box (SJB) Connector End View (C2280d)

G03994381

Courtesy of FORD MOTOR CO.

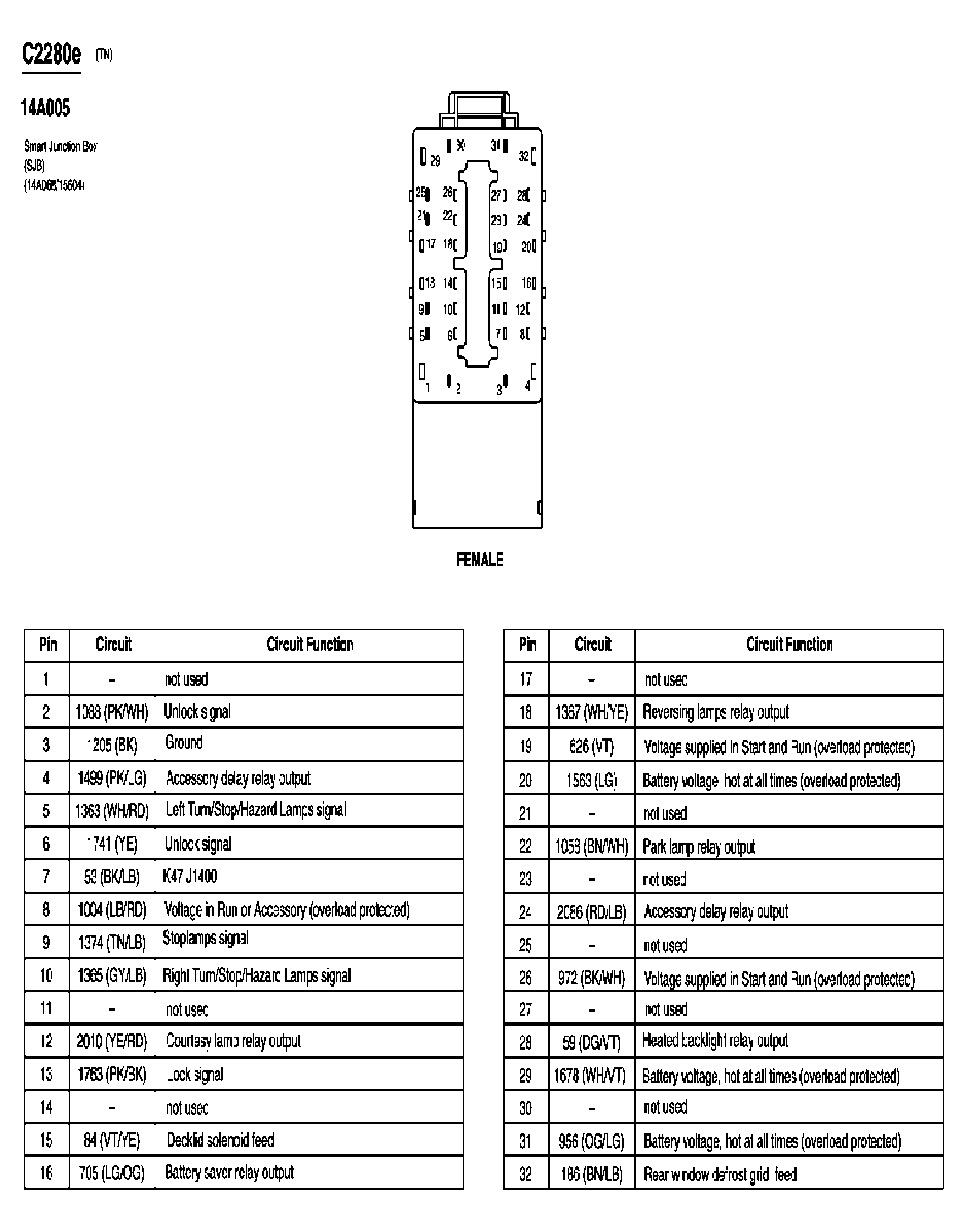

Fig 233: Smart Junction Box (SJB) Connector End View (C2280e)

G03994382

Courtesy of FORD MOTOR CO.

Fig 234: Smart Junction Box (SJB) Connector End View (C2280g)

G07844826

Courtesy of FORD MOTOR CO.

Fig 235: Passenger Air Bag Deactivation (PAD) Indicator Connector End View (C2286)

G07844827

Courtesy of FORD MOTOR CO.

Fig 236: Inline Connector End View (C3007)

G07844828

Courtesy of FORD MOTOR CO.

Fig 237: Auxiliary Blower Motor Connector End View (C3021)

G07844829

Courtesy of FORD MOTOR CO.

Fig 238: Auxiliary Blower Motor Resistor Assembly Connector End View (C3022)

G07844830

Courtesy of FORD MOTOR CO.

Fig 239: Subwoofer Amplifier Connector End View (C3041)

G07844831

Courtesy of FORD MOTOR CO.

Fig 240: Seat Pressure Sensor Connector End View (C3042)

G07844832

Courtesy of FORD MOTOR CO.

Fig 241: Inline Connector End View (C3047)

G07844833

Courtesy of FORD MOTOR CO.

Fig 242: Inline Connector End View (C3049)

G07844834

Courtesy of FORD MOTOR CO.

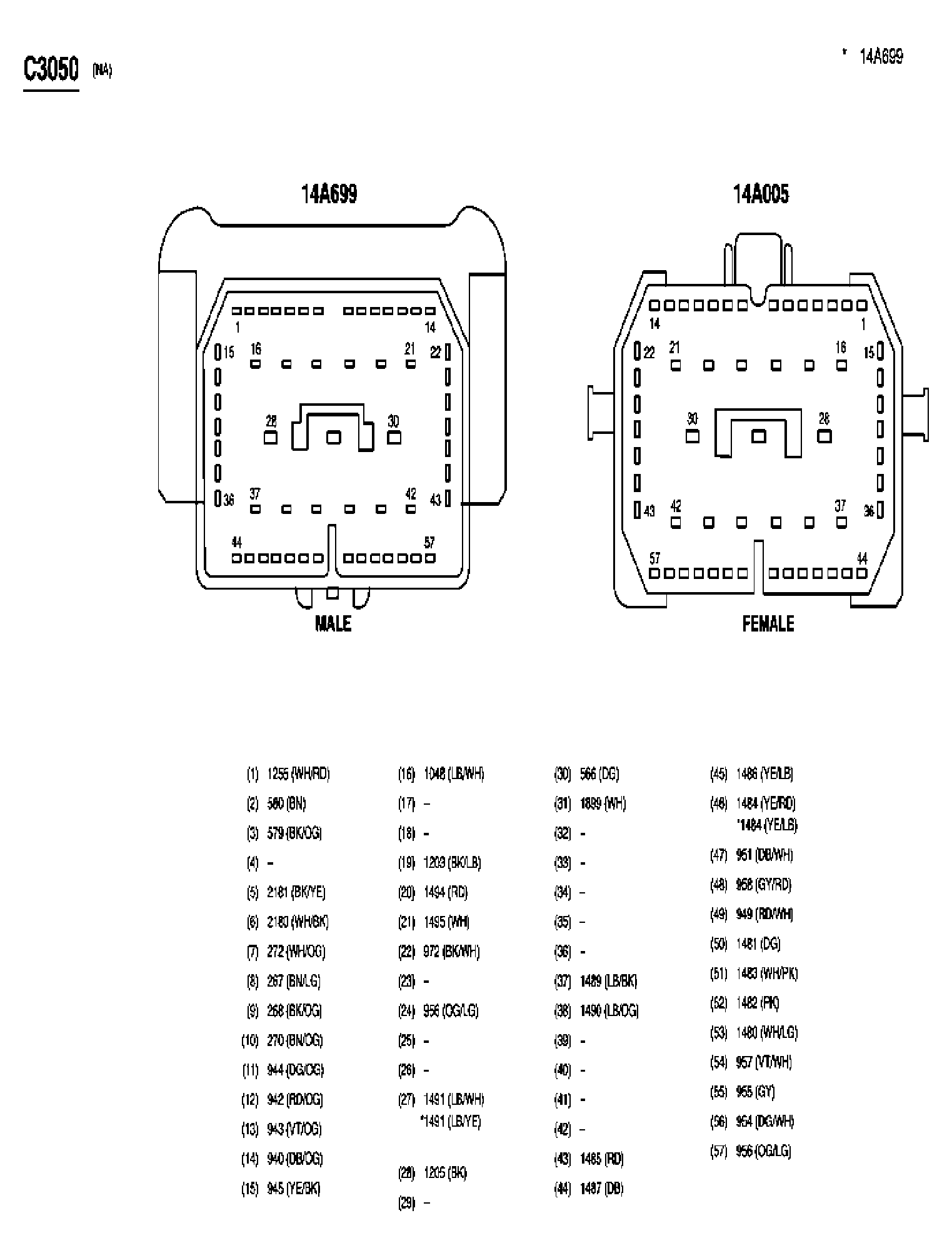

Fig 243: Inline Connector End View (C3050)

G03994386

Courtesy of FORD MOTOR CO.

Fig 244: Safety Belt Buckle Switch, Driver Connector End View (C3065)

G07844835

Courtesy of FORD MOTOR CO.

Fig 245: Safety Belt Buckle Switch, Passenger Connector End View (C3066)

G07844836

Courtesy of FORD MOTOR CO.

Fig 246: Fuel Sender Connector End View (C3104)

G07844837

Courtesy of FORD MOTOR CO.

Fig 247: Wheel Speed Sensor, Right Rear Connector End View (C3116)

G07844838

Courtesy of FORD MOTOR CO.

Fig 248: Wheel Speed Sensor, Left Rear Connector End View (C3117)

G07844839

Courtesy of FORD MOTOR CO.

Fig 249: Subwoofer, Left Rear Connector End View (C3120)

G07844840

Courtesy of FORD MOTOR CO.

Fig 250: Subwoofer, Right Rear Connector End View (C3121)

G07844841

Courtesy of FORD MOTOR CO.

Fig 251: Fuel Tank Pressure Transducer Sensor Connector End View (C3123)

G07844842

Courtesy of FORD MOTOR CO.

Fig 252: Occupant Classification Sensor (OCS) Connector End View (C3159)

G07844843

Courtesy of FORD MOTOR CO.

Fig 253: Driver Seat Recliner Motor Connector End View (C3187)

G07844844

Courtesy of FORD MOTOR CO.

Fig 254: Passenger Seat Recliner Motor Connector End View (C3189)

G07844845

Courtesy of FORD MOTOR CO.

Fig 255: Seat Adjust Switch, Passenger Side Front Connector End View (C3190)

G07844846

Courtesy of FORD MOTOR CO.

Fig 256: Inline Connector End View (C3205)

G07844847

Courtesy of FORD MOTOR CO.

Fig 257: Inline Connector End View (C3206)

G07844848

Courtesy of FORD MOTOR CO.

Fig 258: Side Impact Sensor, Driver 1 Connector End View (C3209)

G07844849

Courtesy of FORD MOTOR CO.

Fig 259: Side Impact Sensor, Driver 2 Connector End View (C3210)

G07844850

Courtesy of FORD MOTOR CO.

Fig 260: Side Impact Sensor, Passenger 1 Connector End View (C3211)

G07844851

Courtesy of FORD MOTOR CO.

Fig 261: Side Impact Sensor, Passenger 2 Connector End View (C3212)

G07844852

Courtesy of FORD MOTOR CO.

Fig 262: Side Air Bag Module, Driver Connector End View (C3226)

G07844853

Courtesy of FORD MOTOR CO.

Fig 263: Side Air Bag Module, Passenger Connector End View (C3227)

G07844854

Courtesy of FORD MOTOR CO.

Fig 264: Safety Belt Tension Sensor, Passenger Connector End View (C3238)

G07844855

Courtesy of FORD MOTOR CO.

Fig 265: Fuel Pump Driver Module Connector End View (C3239)

G07844856

Courtesy of FORD MOTOR CO.

Fig 266: Floor Shifter Connector End View (C3245)

G07844857

Courtesy of FORD MOTOR CO.

Fig 267: Parking Aid Module (PAM) Connector End View (C3267)

G07844858

Courtesy of FORD MOTOR CO.

Fig 268: Parking Aid Speaker Connector End View (C3268)

G07844859

Courtesy of FORD MOTOR CO.

Fig 269: Differential Electronic Module (DEM) Connector End View (C3269)

G07844860

Courtesy of FORD MOTOR CO.

Fig 270: Remote Fuel Sender Connector End View (C3270)

G07844861

Courtesy of FORD MOTOR CO.

Fig 271: Auxiliary Relay Box 1 Connector End View (C3271)

G07844862

Courtesy of FORD MOTOR CO.

Fig 272: Auxiliary Relay Box 2 Connector End View (C3272)

G07844863

Courtesy of FORD MOTOR CO.

Fig 273: Auxiliary Relay Box 3 Connector End View (C3273)

G07844864

Courtesy of FORD MOTOR CO.

Fig 274: Auxiliary Mode Actuator Connector End View (C3274)

G07844865

Courtesy of FORD MOTOR CO.

Fig 275: Auxiliary Temperature Actuator Connector End View (C3275)

G07844866

Courtesy of FORD MOTOR CO.

Fig 276: Parking Aid Sensor, Rear, Outer Left Connector End View (C4009)

G07844867

Courtesy of FORD MOTOR CO.

Fig 277: Parking Aid Sensor, Rear, Inner Left Connector End View (C4010)

G07844868

Courtesy of FORD MOTOR CO.

Fig 278: Parking Aid Sensor, Rear, Outer Right Connector End View (C4011)

G07844869

Courtesy of FORD MOTOR CO.

Fig 279: Parking Aid Sensor, Rear, Inner Right Connector End View (C4012)

G07844870

Courtesy of FORD MOTOR CO.

Fig 280: EVAP Canister Vent Control Solenoid Connector End View (C4116)

G07844871

Courtesy of FORD MOTOR CO.

Fig 281: Liftgate Lock Actuator Connector End View (C4185)

G07844872

Courtesy of FORD MOTOR CO.

Fig 282: Decklid Solenoid Connector End View (C4302)

G07844873

Courtesy of FORD MOTOR CO.

Fig 283: Safety Canopy Bridge Resistor, Left Connector End View (C9016)

G07844874

Courtesy of FORD MOTOR CO.

Fig 284: Safety Canopy Module, Driver Connector End View (C9018)

G07844875

Courtesy of FORD MOTOR CO.

Fig 285: Safety Canopy Module, Passenger Connector End View (C9019)

G07844876

Courtesy of FORD MOTOR CO.

Fig 286: Rear Seat Entertainment (RSE) Module Connector End View (C9029)

G07844877

Courtesy of FORD MOTOR CO.

Fig 287: LED High Mounted Stoplamp Connector End View (C9030)

G07844878

Courtesy of FORD MOTOR CO.

Fig 288: Safety Canopy Module, Driver Connector End View (C9031)

G07844879

Courtesy of FORD MOTOR CO.

Fig 289: Safety Canopy Module, Passenger Connector End View (C9032)

G07844880

Courtesy of FORD MOTOR CO.
