Main Control Valve Body: Installation

CAUTION: When installing the main control valve body, place the wire harness in the open space of the separate plate being careful not to pinch the harness. Damage to the harness will occur.

Fig 1: Connecting Manual Valve Link

Courtesy of FORD MOTOR CO.

Connect the manual valve link and position the main control valve body in place.
Loosely install the 6 main control valve body bolts.

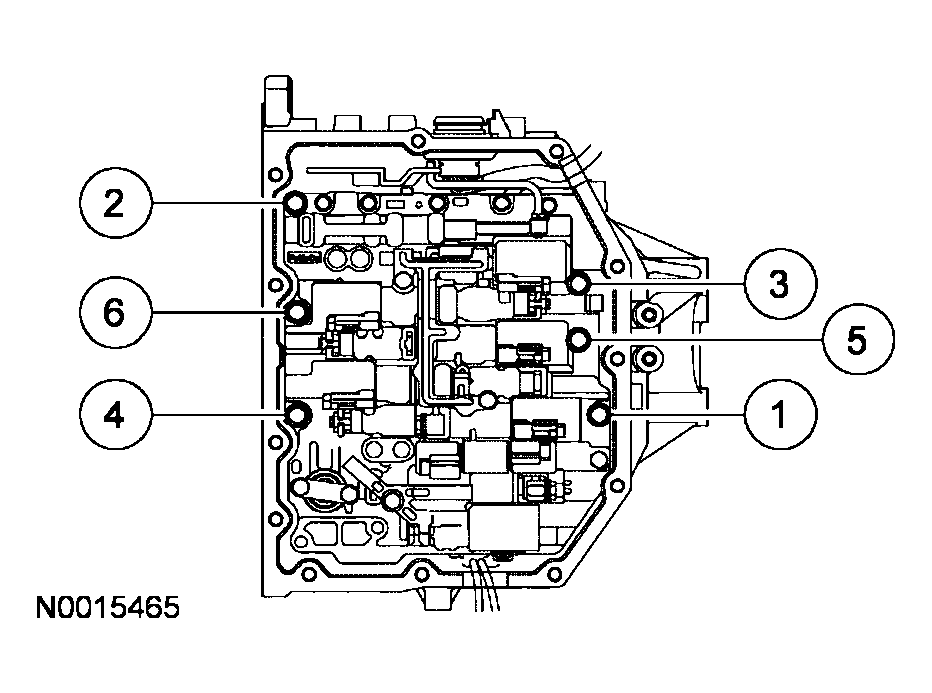

Fig 2: Installing Main Control Valve Body Bolts
Courtesy of FORD MOTOR CO.
Install the suction cover gasket, cover and loosely install the 2 bolts.

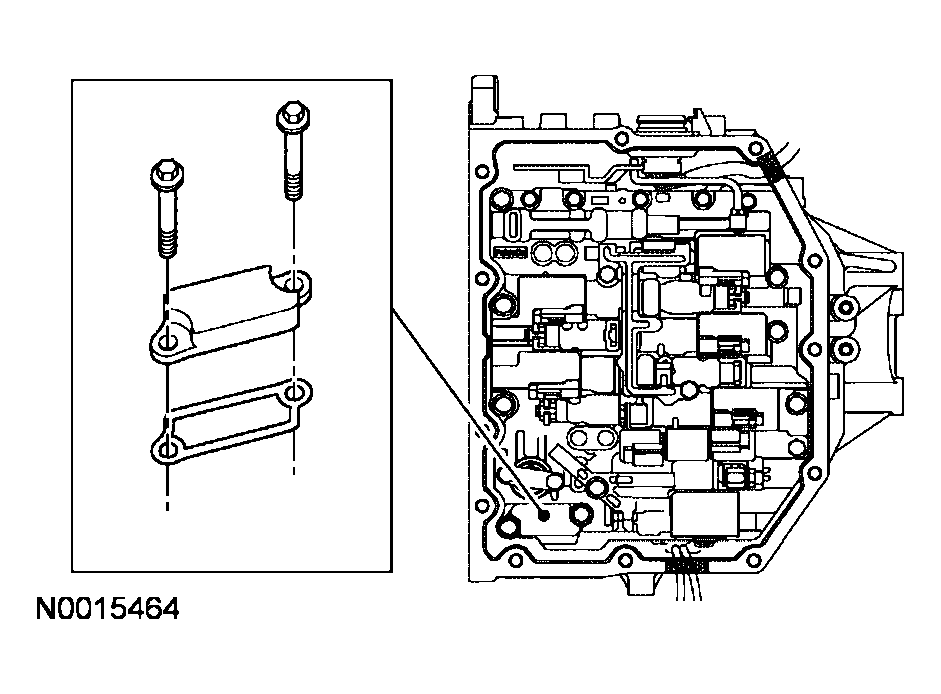

Fig 3: Installing Suction Cover Gasket
Courtesy of FORD MOTOR CO.
Tighten the 8 bolts to 10 Nm (89 lb-in) in the sequence shown.

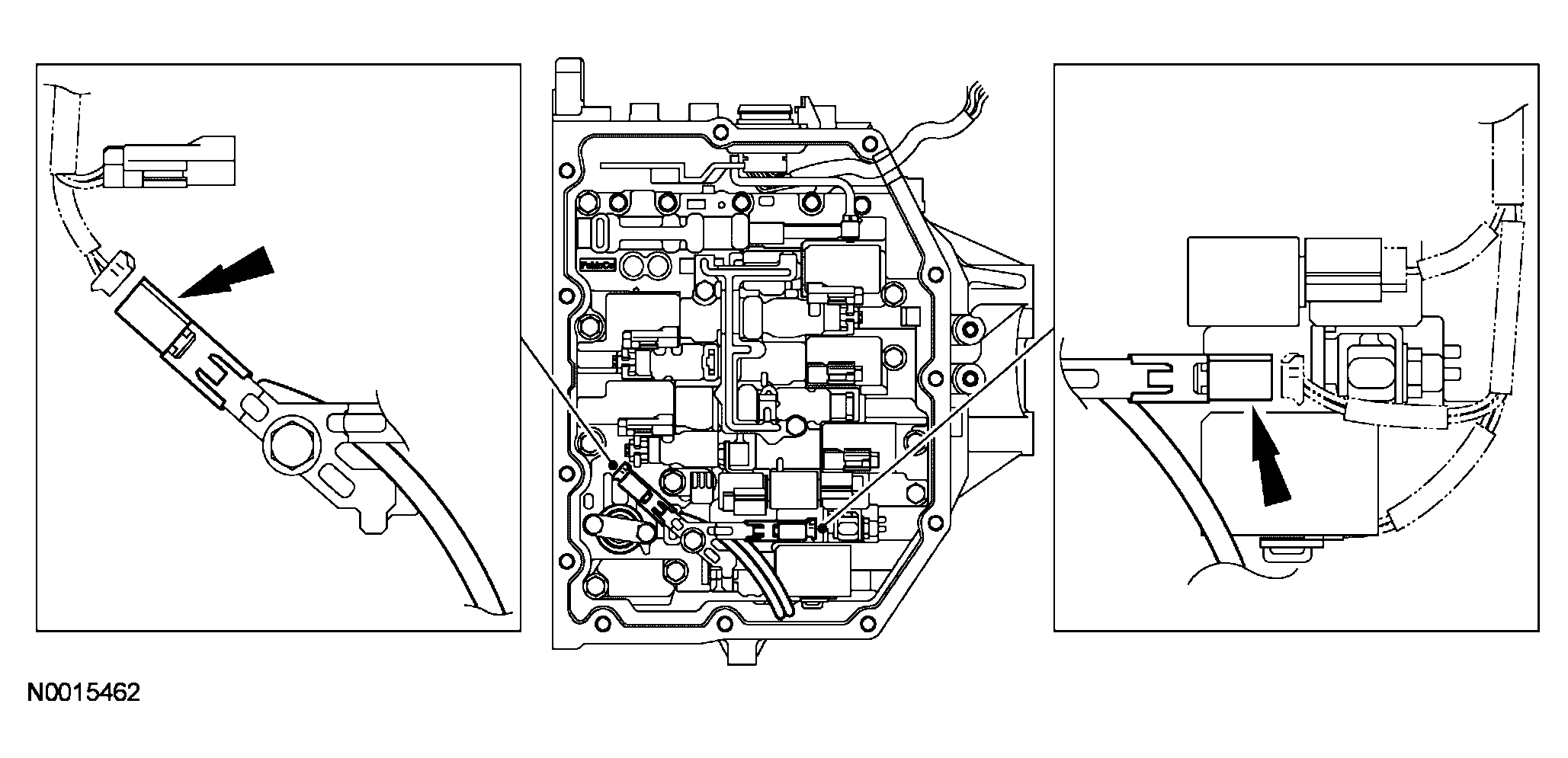

Fig 4: Disconnecting Connector
Courtesy of FORD MOTOR CO.

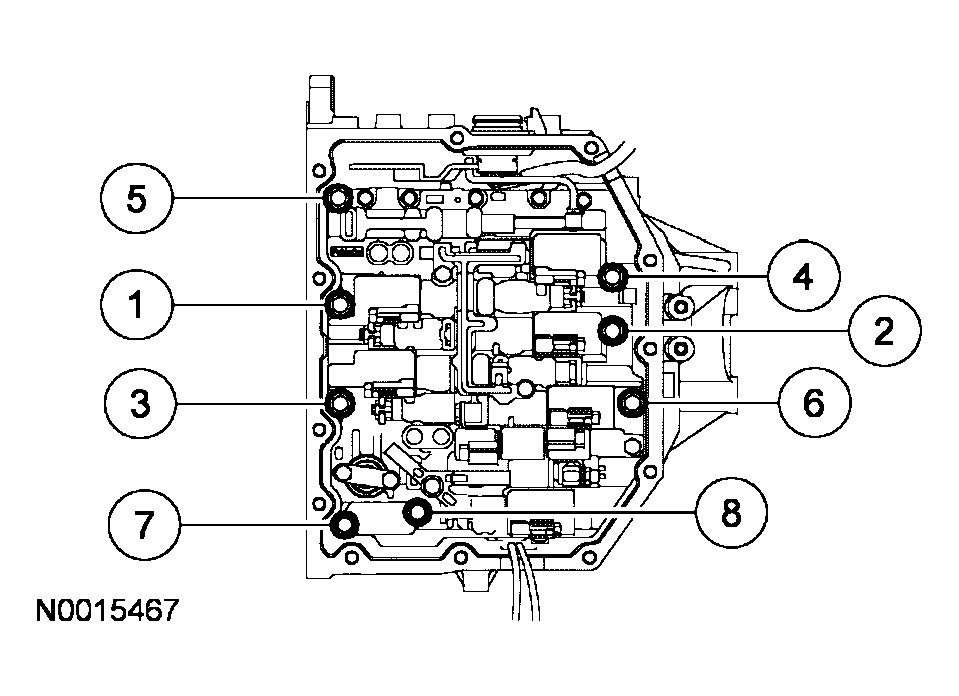

Fig 5: Identifying Bolts Tightening Sequence
Courtesy of FORD MOTOR CO.
Lubricate the O-ring and install the transmission fluid temperature sensor.
- Tighten to 10 Nm (89 lb-in).

  Fig 6: Installing Transmission Fluid Temperature Sensor
  Courtesy of FORD MOTOR CO.
Connect the 2 speed sensor wires.
Connect the wire harness to the solenoids.
1. Install the wire harness into the clamps.

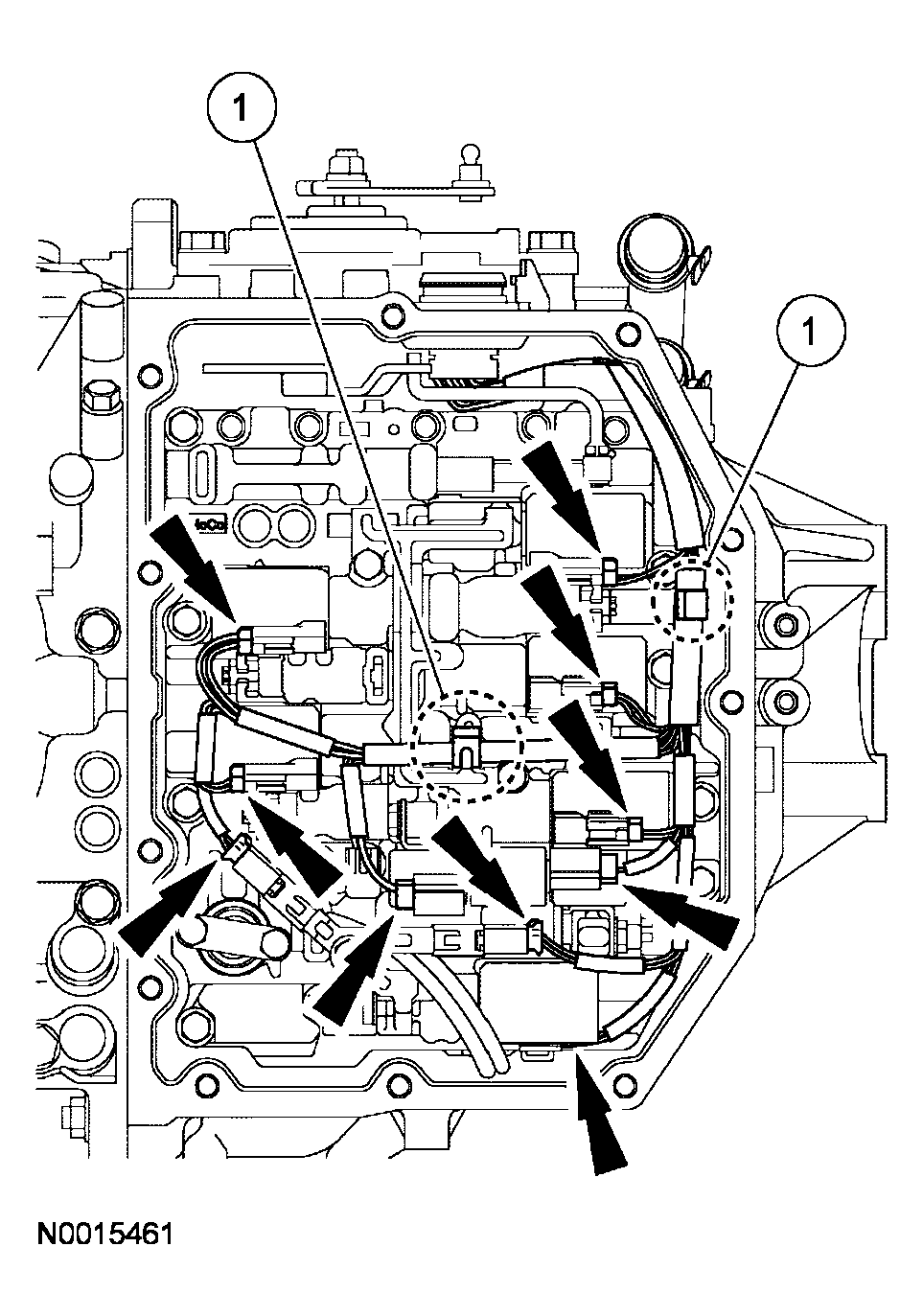

- Connect the 8 solenoid connectors and the 2 speed sensor connectors.

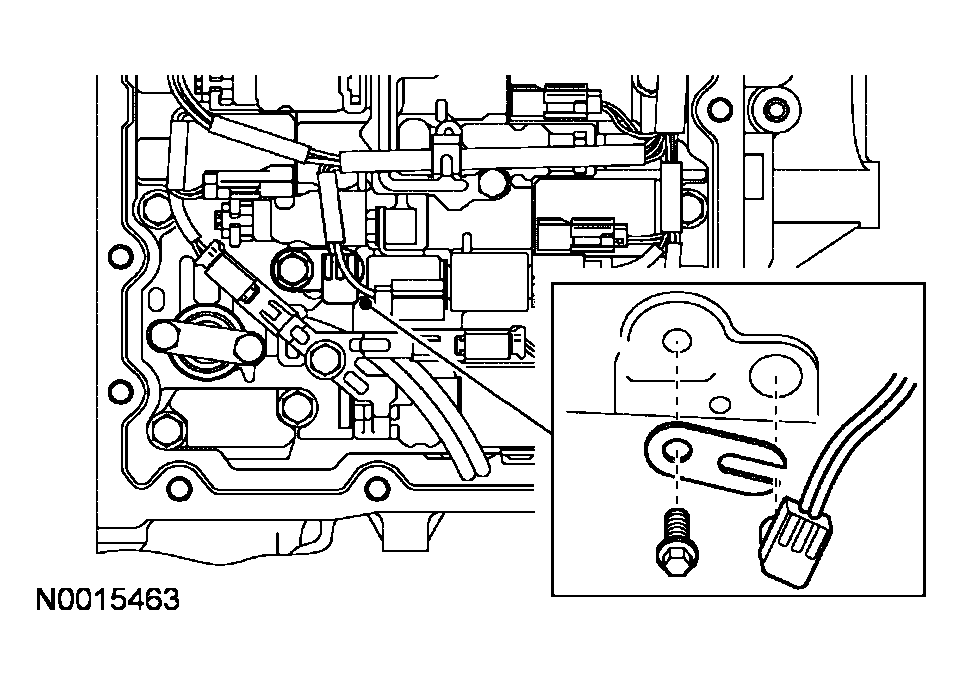

  Fig 7: Connecting Solenoid Connectors And Speed Sensor Connectors
  Courtesy of FORD MOTOR CO.
Install a bead of sealer to the fluid pan.

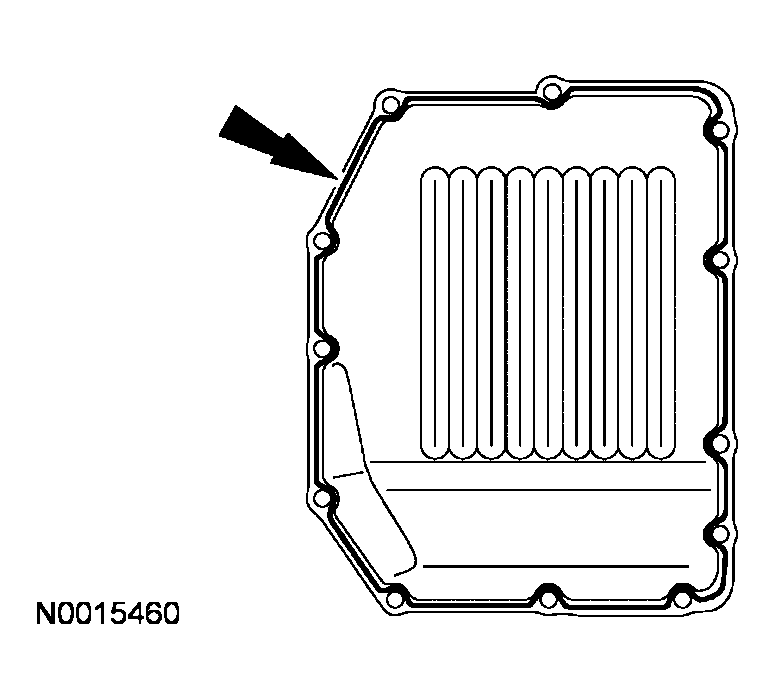

Fig 8: Installing Bead Of Sealer To Fluid Pan
Courtesy of FORD MOTOR CO.
Install the fluid pan.
- Tighten to 13 Nm (10 lb-ft).

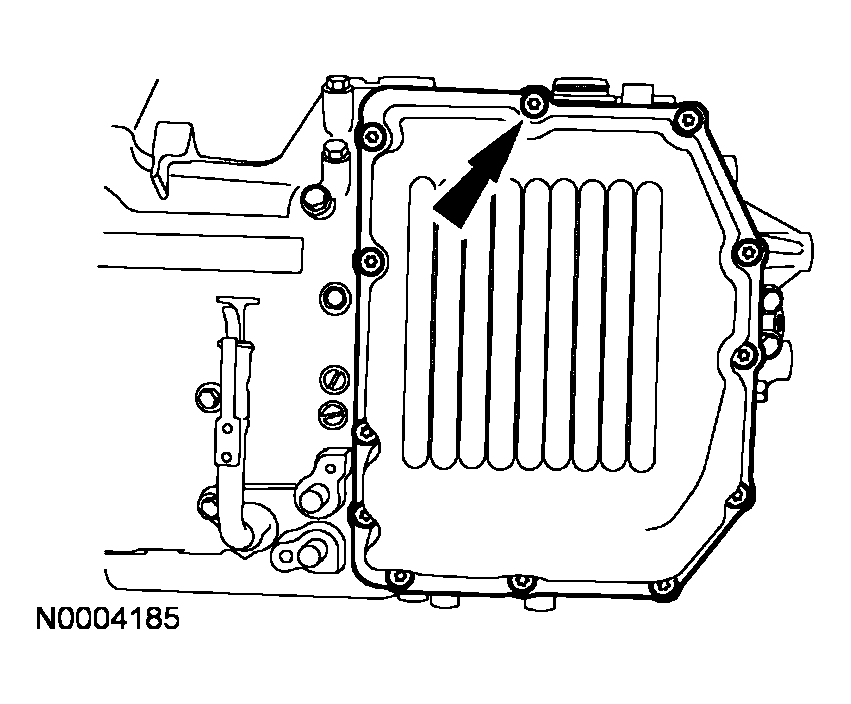

  Fig 9: Installing Fluid Pan
  Courtesy of FORD MOTOR CO.

NOTE: Lubricate the new O-rings with clean automatic transmission fluid and install them onto the fluid cooler tubes.

Connect the transmission fluid cooler tubes to the transaxle.
- Tighten to 10 Nm (89 lb-in).

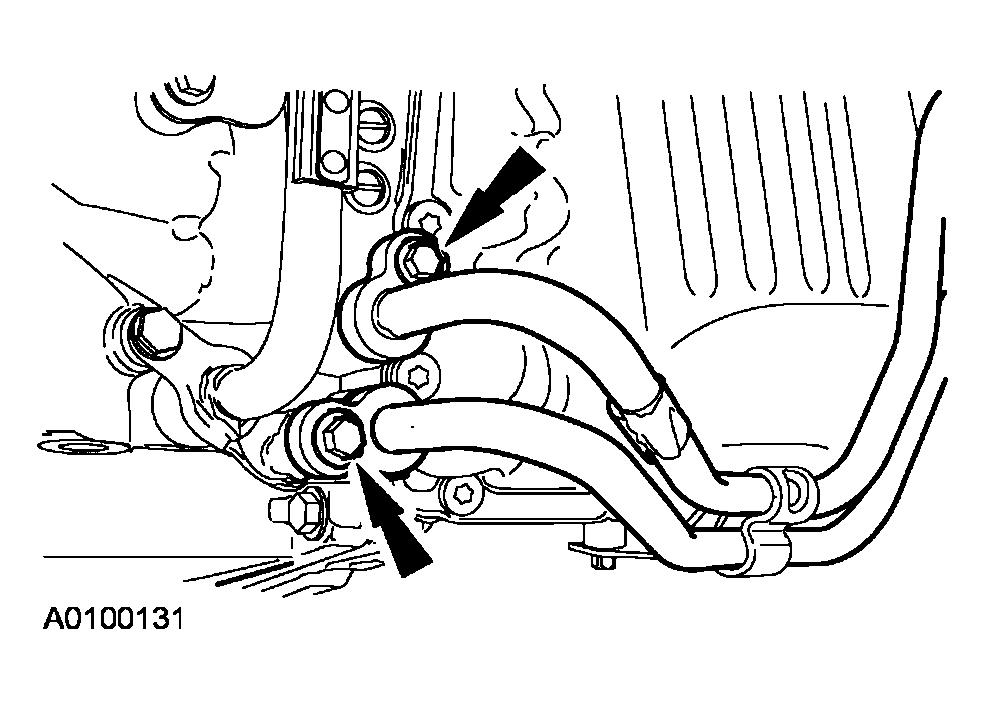

  Fig 10: Connecting Transmission Fluid Cooler Tubes To Transaxle
  Courtesy of FORD MOTOR CO.
Connect the transmission fluid cooler tube bracket to the transaxle.
- Tighten to 10 Nm (89 lb-in).

  Fig 11: Connecting Transmission Fluid Cooler Tube Bracket To Transaxle
  Courtesy of FORD MOTOR CO.
Install the transmission fluid drain plug.
- Tighten to 47 Nm (35 lb-ft).

  Fig 12: Installing Transmission Fluid Drain Plug
  Courtesy of FORD MOTOR CO.
Remove the transmission fluid fill plug.

Fig 13: Locating Fluid Fill Plug
Courtesy of FORD MOTOR CO.
Fill the transaxle with approximately 4.7L (5 quarts) of clean automatic transmission fluid.
Install the fluid fill plug.
- Tighten to 39 Nm (29 lb-ft).

  Fig 14: Locating Fluid Fill Plug
  Courtesy of FORD MOTOR CO.
With the transaxle in (P) PARK, the vehicle should be on a level surface, the engine at idle (680-780 rpm), foot pressed on the brake, move the selector lever through each gear and allow engagement of each gear. Place the selector lever back in the PARK position.
Wipe the fluid level indicator cap and remove the fluid level indicator.
Wipe the fluid level indicator with a clean cloth.

NOTE: In order to get an accurate fluid level reading, the vehicle should be on a level surface, the engine at idle (680-780 rpm) for 5 minutes and the fluid temperature should be at least 70°C-80°C (158°F-176°F) using the scan tool.

Fig 15: Identifying Fluid Fill Plug

Courtesy of FORD MOTOR CO.

If fluid needs to be added, add fluid in 0.25L (1/2 pint) increments through the fluid fill plug located on the top of the transaxle near the fluid level indicator. Do not overfill the fluid. Install the fluid level indicator back in the fluid filler tube until it is fully seated, then remove the indicator. The fluid level should be at the upper-most mark on the fluid level indicator. Only fill to the upper-most mark on the fluid indicator. Do not overfill. Damage to the transaxle will occur.
