Transmission Control Module (TCM): Installation

Verify that the manual lever position markings are aligned. Markings should indicate that the manual lever is in the OVERDRIVE position.

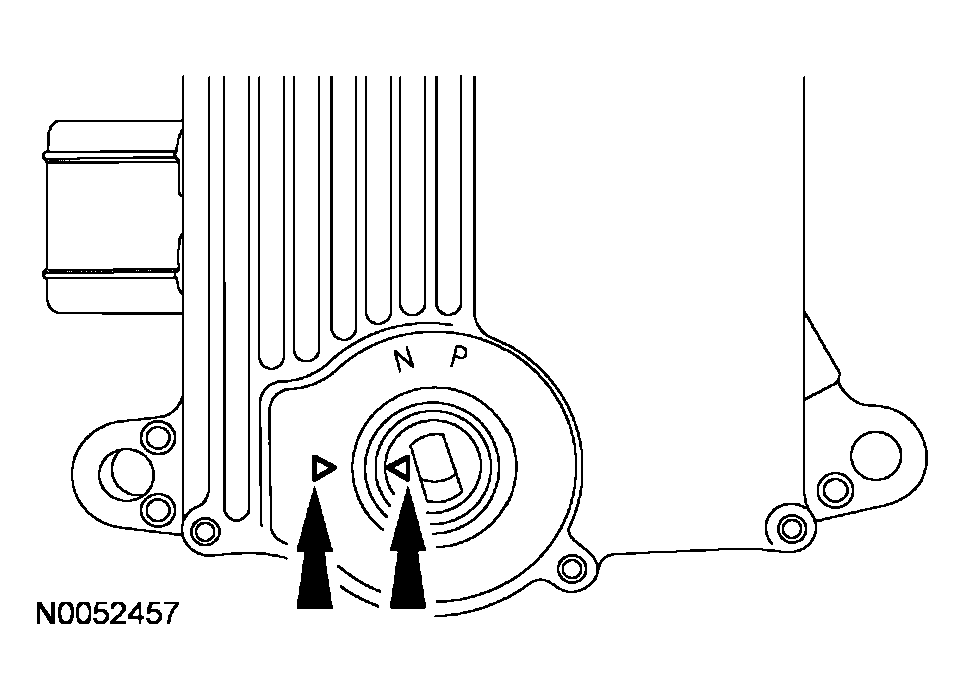

Fig 1: Identifying Manual Lever Position Markings
Courtesy of FORD MOTOR CO.
Install the TCM.
- Tighten to 24 Nm (18 lb-ft).

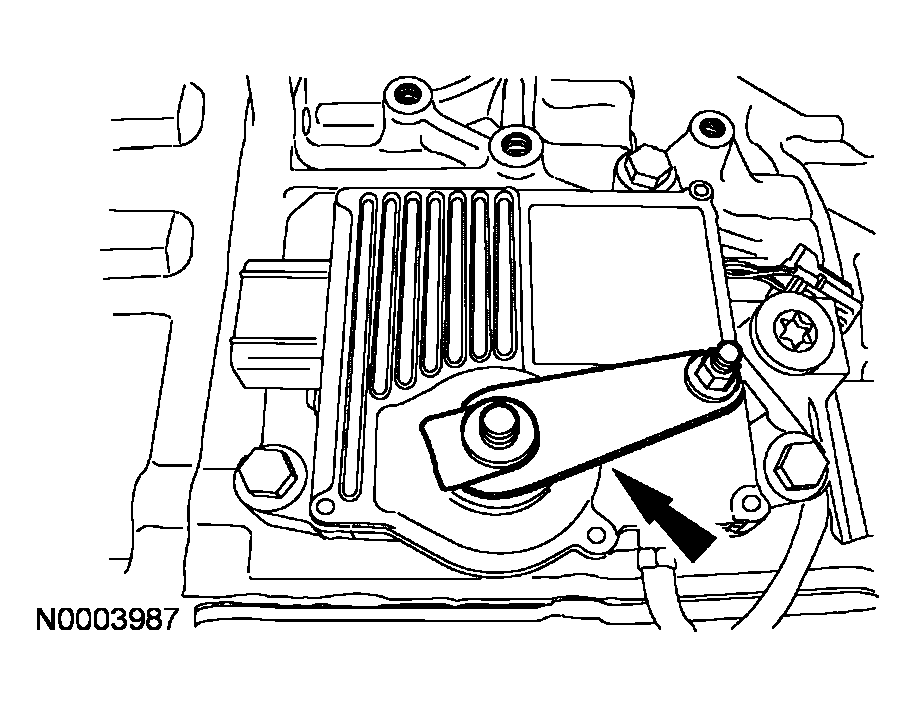

  Fig 2: Installing TCM
  Courtesy of FORD MOTOR CO.
Install the manual control lever.

Fig 3: Installing Manual Control Lever
Courtesy of FORD MOTOR CO.
Install the manual control lever nut.
- Tighten to 12 Nm (9 lb-ft).

  Fig 4: Installing Manual Control Lever Nut
  Courtesy of FORD MOTOR CO.
Connect the TCM electrical connector.

Fig 5: Connecting TCM Electrical Connector
Courtesy of FORD MOTOR CO.

CAUTION: Be careful not to bend the manual control lever when installing the shift cable.

Fig 6: Locating Shift Cable End

Courtesy of FORD MOTOR CO.

Connect the shift cable end.
Install the air cleaner assembly. For additional information, refer to INTAKE AIR DISTRIBUTION & FILTERING .
Connect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
Reflash the TCM module to the latest level calibration available.
Check for correct vehicle operation.
