Connector Views

Fig 1: A/C Clutch Field Coil Connector End View (C100)

G07844881

Courtesy of FORD MOTOR CO.

Fig 2: Crankshaft Position Sensor Connector End View (C101)

G07844882

Courtesy of FORD MOTOR CO.

Fig 3: Generator Connector End View (C102a)

G07844883

Courtesy of FORD MOTOR CO.

Fig 4: Generator Connector End View (C102b)

G07844884

Courtesy of FORD MOTOR CO.

Fig 5: Oil Pressure Switch Connector End View (C103)

G07844885

Courtesy of FORD MOTOR CO.

Fig 6: Knock Sensor Connector End View (C108)

G07844886

Courtesy of FORD MOTOR CO.

Fig 7: Knock Sensor Connector End View (C109)

G07844887

Courtesy of FORD MOTOR CO.

Fig 8: Coil On Plug (COP) 1 Connector End View (C111)

G07844888

Courtesy of FORD MOTOR CO.

Fig 9: Coil On Plug (COP) 2 Connector End View (C112)

G07844889

Courtesy of FORD MOTOR CO.

Fig 10: Coil On Plug (COP) 3 Connector End View (C113)

G07844890

Courtesy of FORD MOTOR CO.

Fig 11: Coil On Plug (COP) 4 Connector End View (C114)

G07844891

Courtesy of FORD MOTOR CO.

Fig 12: Coil On Plug (COP) 6 Connector End View (C116)

G07844892

Courtesy of FORD MOTOR CO.

Fig 13: Inline Connector End View (C110)

G07844893

Courtesy of FORD MOTOR CO.

Fig 14: Speed Control Servo Connector End View (C122)

G07844894

Courtesy of FORD MOTOR CO.

Fig 15: EVAP Canister Purge Valve Connector End View (C123)

G07844895

Courtesy of FORD MOTOR CO.

Fig 16: Brake Fluid Level Switch Connector End View (C124)

G07844896

Courtesy of FORD MOTOR CO.

Fig 17: Windshield Wiper Motor Connector End View (C125)

G07844897

Courtesy of FORD MOTOR CO.

Fig 18: Anti-Theft Hood Switch Connector End View (C127)

G07844898

Courtesy of FORD MOTOR CO.

Fig 19: Mass Air Flow (MAF) Sensor Connector End View (C128)

G07844899

Courtesy of FORD MOTOR CO.

Fig 20: Low Charge Protection Switch Connector End View (C130)

G07844900

Courtesy of FORD MOTOR CO.

Fig 21: Horn Connector End View (C131)

G07844901

Courtesy of FORD MOTOR CO.

Fig 22: Inline Connector End View (C133)

G07844902

Courtesy of FORD MOTOR CO.

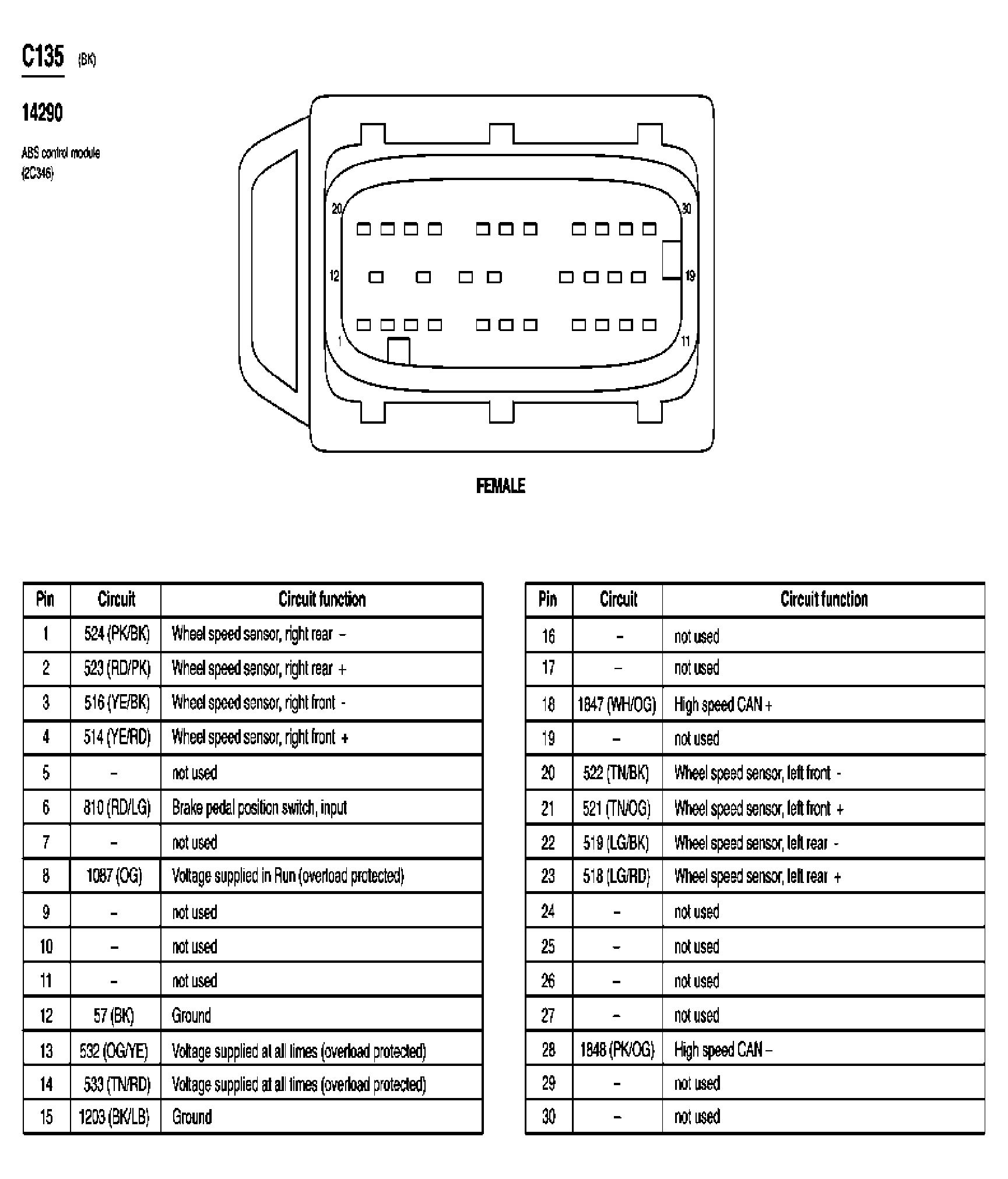

Fig 23: ABS Control Module Connector End View (C135)

G03994433

Courtesy of FORD MOTOR CO.

Fig 24: Windshield Washer Pump Motor Connector End View (C137)

G07844903

Courtesy of FORD MOTOR CO.

Fig 25: Inline Connector End View (C139)

G07844904

Courtesy of FORD MOTOR CO.

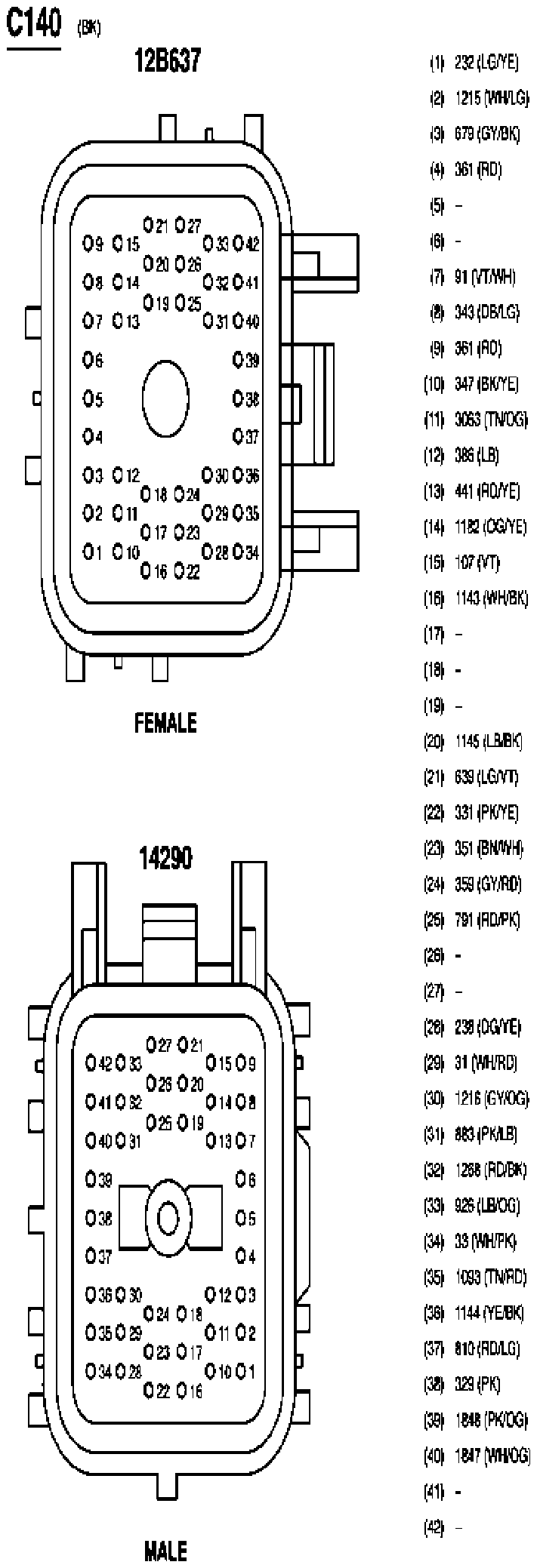

Fig 26: Inline Connector End View (C140)

G07844905

Courtesy of FORD MOTOR CO.

Fig 27: Heated Oxygen Sensor (HO2S) #22 Connector End View (C141)

G07844906

Courtesy of FORD MOTOR CO.

Fig 28: Heated Oxygen Sensor (HO2S) #12 Connector End View (C142)

G07844907

Courtesy of FORD MOTOR CO.

Fig 29: Turbine Shaft Speed (TSS) Sensor Connector End View (C143)

G07844908

Courtesy of FORD MOTOR CO.

Fig 30: Wheel Speed Sensor, Left Front Connector End View (C150)

G07844909

Courtesy of FORD MOTOR CO.

Fig 31: Fog Lamp, Left Front Connector End View (C152)

G07844910

Courtesy of FORD MOTOR CO.

Fig 32: Wheel Speed Sensor, Right Front Connector End View (C160)

G07844911

Courtesy of FORD MOTOR CO.

Fig 33: Fog Lamp, Right Front Connector End View (C162)

G07844912

Courtesy of FORD MOTOR CO.

Fig 34: Digital Transmission Range (DTR) Sensor Connector End View (C167)

G07844913

Courtesy of FORD MOTOR CO.

Fig 35: Heated Oxygen Sensor (HO2S) #11 Connector End View (C171)

G07844914

Courtesy of FORD MOTOR CO.

Fig 36: Heated Oxygen Sensor (HO2S) #21 Connector End View (C172)

G07844915

Courtesy of FORD MOTOR CO.

Fig 37: Ignition Transformer Capacitor 1 Connector End View (C174)

G07844916

Courtesy of FORD MOTOR CO.

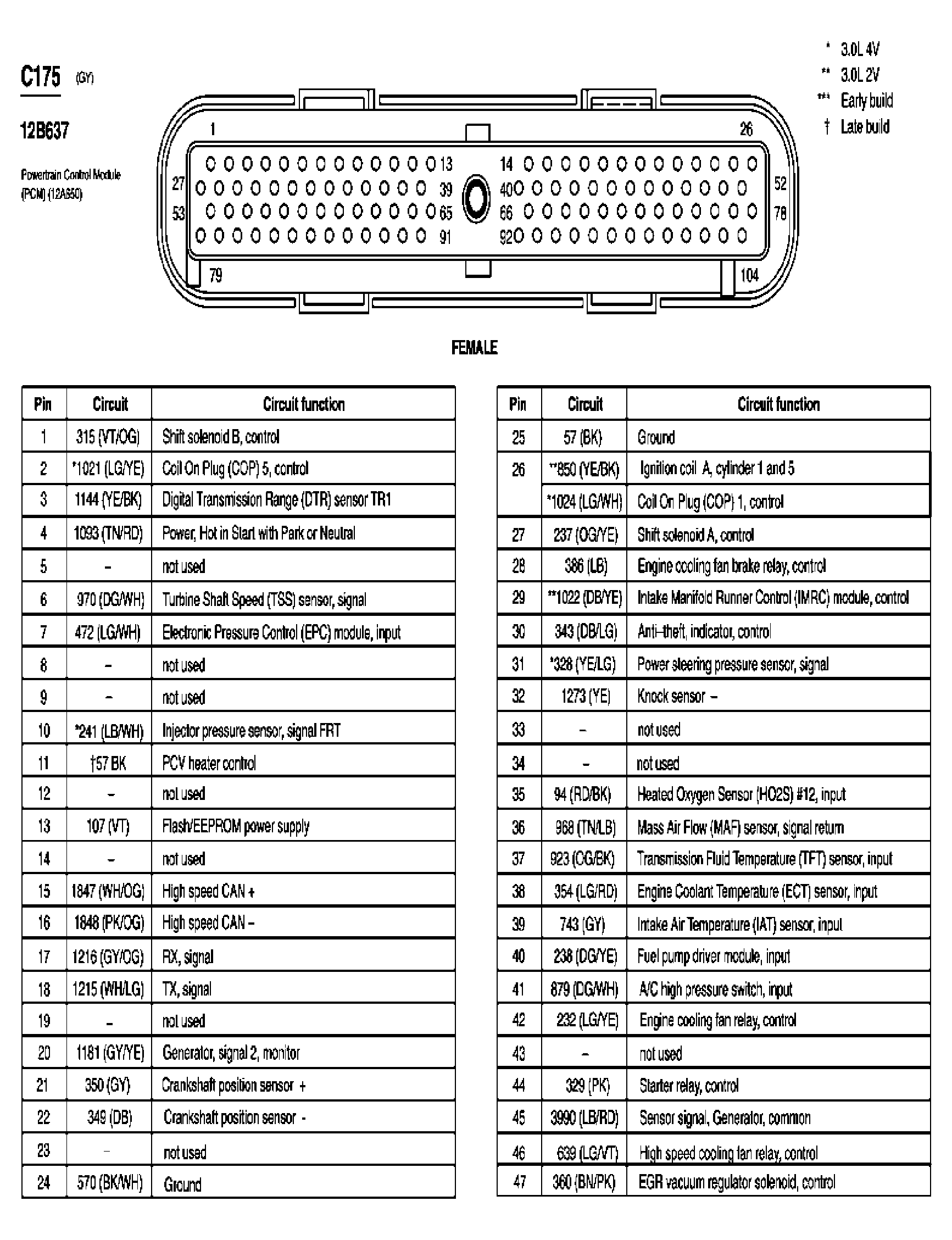

Fig 38: Powertrain Control Module (PCM) Connector End View (C175) (1 Of 2)

G03994438

Courtesy of FORD MOTOR CO.

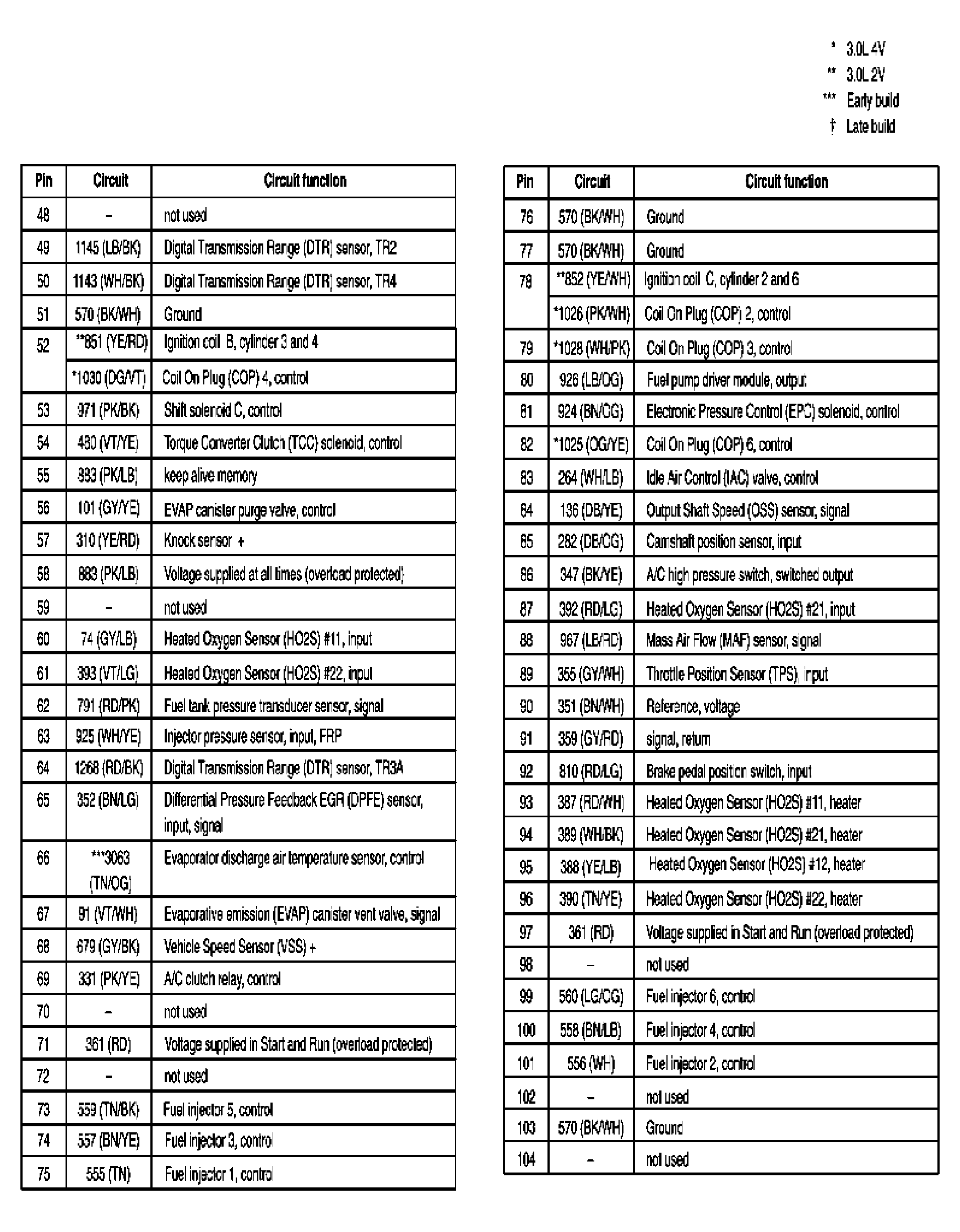

Fig 39: Powertrain Control Module (PCM) Connector End View (C175) (2 Of 2)

G03994439

Courtesy of FORD MOTOR CO.

Fig 40: Forward Crash Sensor Connector End View (C177)

G07844917

Courtesy of FORD MOTOR CO.

Fig 41: Camshaft Position Sensor Connector End View (C180)

G07844918

Courtesy of FORD MOTOR CO.

Fig 42: Fuel Injector 1 Connector End View (C181)

G07844919

Courtesy of FORD MOTOR CO.

Fig 43: Fuel Injector 2 Connector End View (C182)

G07844920

Courtesy of FORD MOTOR CO.

Fig 44: Fuel Injector 3 Connector End View (C183)

G07844921

Courtesy of FORD MOTOR CO.

Fig 45: Fuel Injector 4 Connector End View (C184)

G07844922

Courtesy of FORD MOTOR CO.

Fig 46: Fuel Injector 5 Connector End View (C185)

G07844923

Courtesy of FORD MOTOR CO.

Fig 47: Fuel Injector 6 Connector End View (C186)

G07844924

Courtesy of FORD MOTOR CO.

Fig 48: Throttle Position Sensor (TPS) Connector End View (C189)

G07844925

Courtesy of FORD MOTOR CO.

Fig 49: Heated Positive Crankcase Ventilation (PCV) Valve Connector End View (C190)

G07844926

Courtesy of FORD MOTOR CO.

Fig 50: Output Shaft Speed (OSS) Sensor Connector End View (C193)

G07844927

Courtesy of FORD MOTOR CO.

Fig 51: Starter Motor Connector End View (C197a)

G07844928

Courtesy of FORD MOTOR CO.

Fig 52: Starter Motor Connector End View (C197b)

G07844929

Courtesy of FORD MOTOR CO.

Fig 53: Ambient Air Temperature Sensor Connector End View (C198)

G07844930

Courtesy of FORD MOTOR CO.

Fig 54: Transmission Connector End View (C199)

G07844931

Courtesy of FORD MOTOR CO.

Fig 55: Multifunction Switch Connector End View (C202a)

G07844932

Courtesy of FORD MOTOR CO.

Fig 56: Multifunction Switch Connector End View (C202b)

G07844933

Courtesy of FORD MOTOR CO.

Fig 57: Multifunction Switch Connector End View (C202c)

G07844934

Courtesy of FORD MOTOR CO.

Fig 58: Main Light Switch Connector End View (C205a)

G07844935

Courtesy of FORD MOTOR CO.

Fig 59: Main Light Switch Connector End View (C205b)

G07844936

Courtesy of FORD MOTOR CO.

Fig 60: Luggage Compartment Lid Release Switch Connector End View (C207)

G07844937

Courtesy of FORD MOTOR CO.

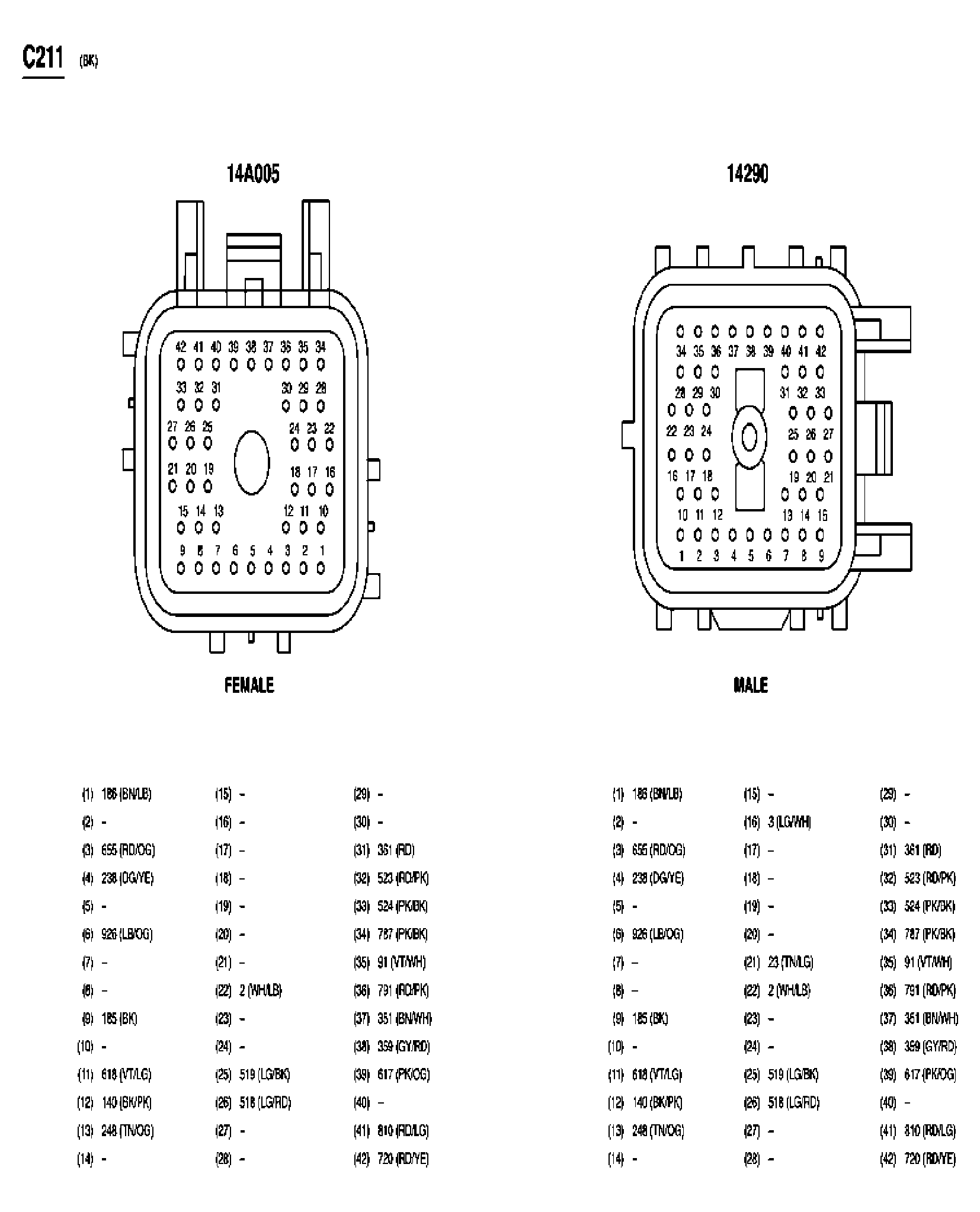

Fig 61: Inline Connector End View (C211)

G03994446

Courtesy of FORD MOTOR CO.

Fig 62: Inline Connector End View (C212)

G07844938

Courtesy of FORD MOTOR CO.

Fig 63: Inline Connector End View (C214)

G07844939

Courtesy of FORD MOTOR CO.

Fig 64: Air Bag Sliding Contact Connector End View (C218a)

G07844940

Courtesy of FORD MOTOR CO.

Fig 65: Air Bag Sliding Contact Connector End View (C218b)

G07844941

Courtesy of FORD MOTOR CO.

Fig 66: Inline Connector End View (C219)

G07844942

Courtesy of FORD MOTOR CO.

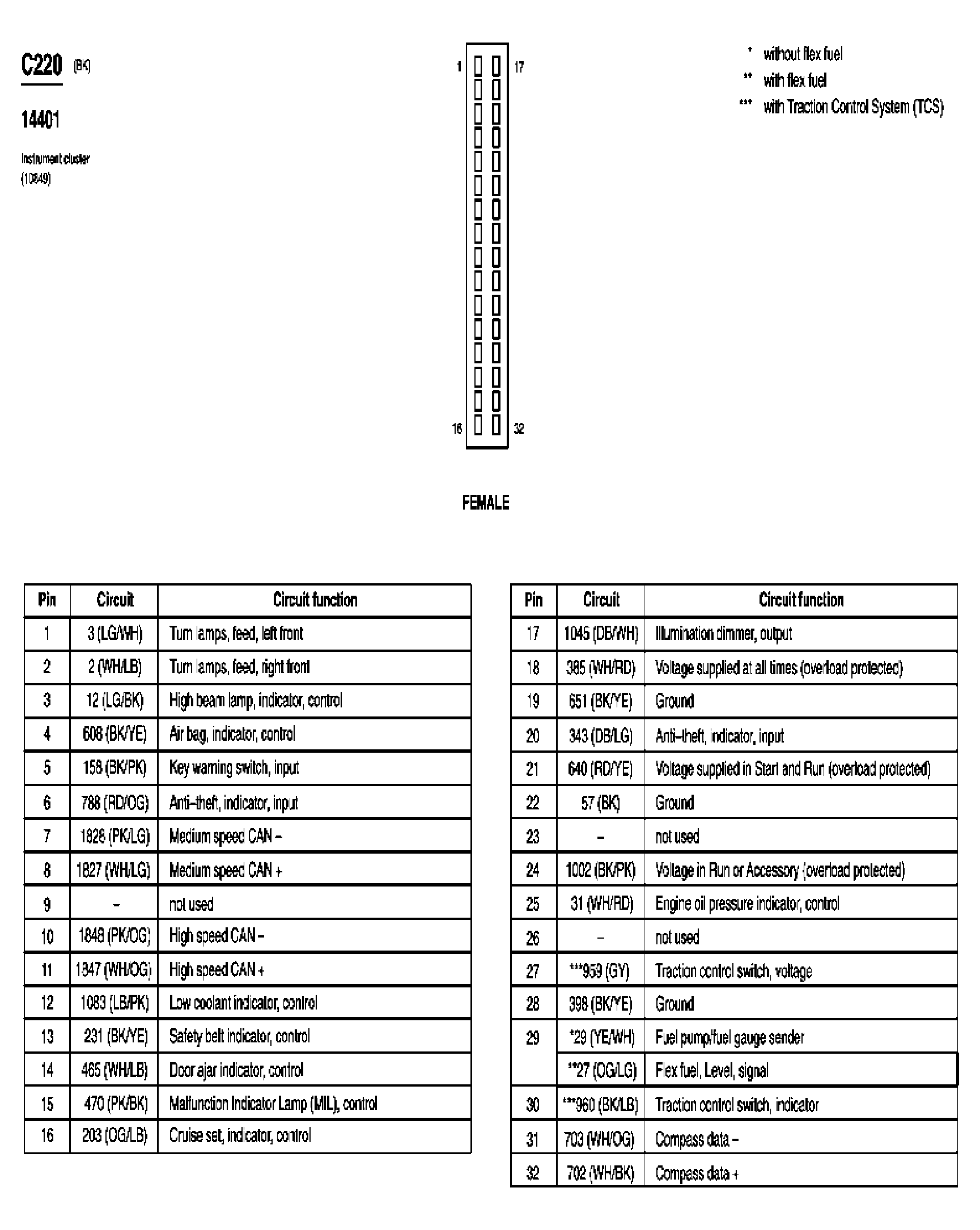

Fig 67: Instrument Cluster Connector End View (C220)

G03994449

Courtesy of FORD MOTOR CO.

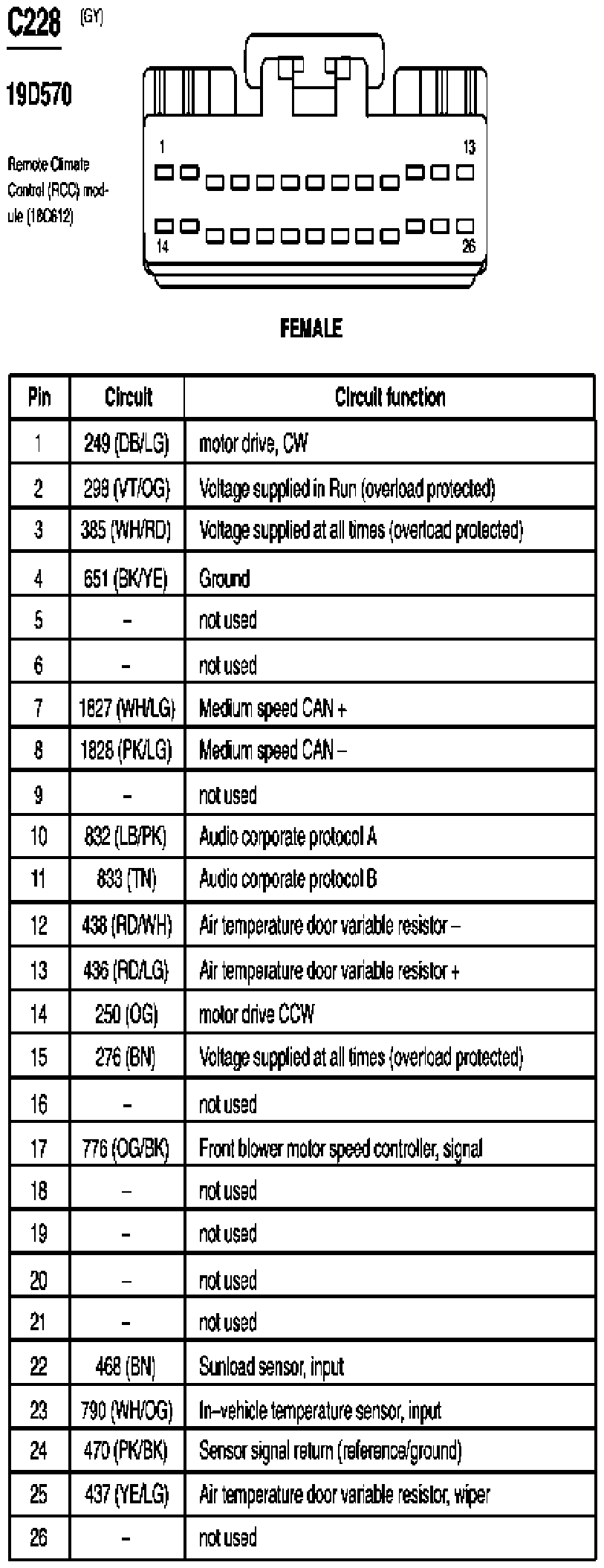

Fig 68: Remote Climate Control (RCC) Module Connector End View (C228)

G07844943

Courtesy of FORD MOTOR CO.

Fig 69: In-Vehicle Temperature Sensor Connector End View (C233)

G07844944

Courtesy of FORD MOTOR CO.

Fig 70: CD Changer Connector End View (C243)

G07844945

Courtesy of FORD MOTOR CO.

Fig 71: Ignition Switch Connector End View (C250)

G07844946

Courtesy of FORD MOTOR CO.

Fig 72: Data Link Connector (DLC) Connector End View (C251)

G07844947

Courtesy of FORD MOTOR CO.

Fig 73: Passive Anti-Theft Transceiver Module Connector End View (C252)

G07844948

Courtesy of FORD MOTOR CO.

Fig 74: Message Center Switch Connector End View (C253)

G07844949

Courtesy of FORD MOTOR CO.

Fig 75: Glove Box Lamp Connector End View (C254)

G07844950

Courtesy of FORD MOTOR CO.

Fig 76: Passenger Air Bag Module Connector End View (C256)

G07844951

Courtesy of FORD MOTOR CO.

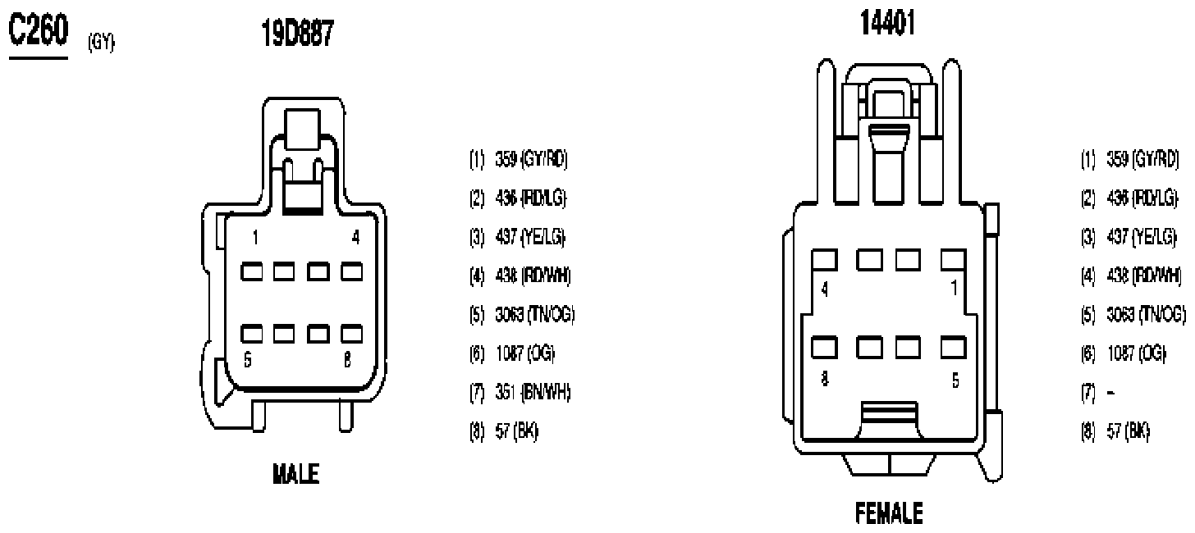

Fig 77: Inline Connector End View (C260)

G03994453

Courtesy of FORD MOTOR CO.

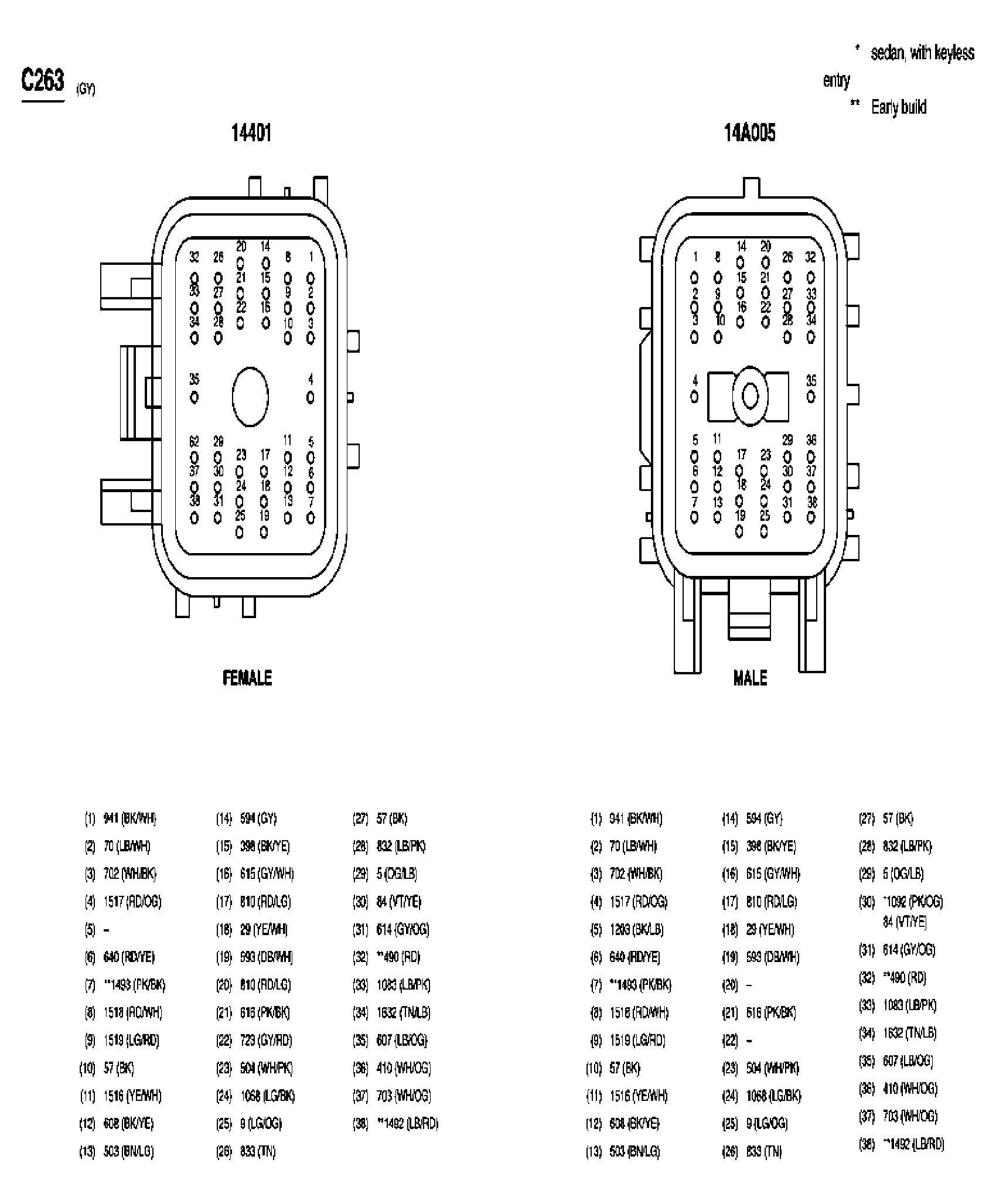

Fig 78: Inline Connector End View (C263)

G03994454

Courtesy of FORD MOTOR CO.

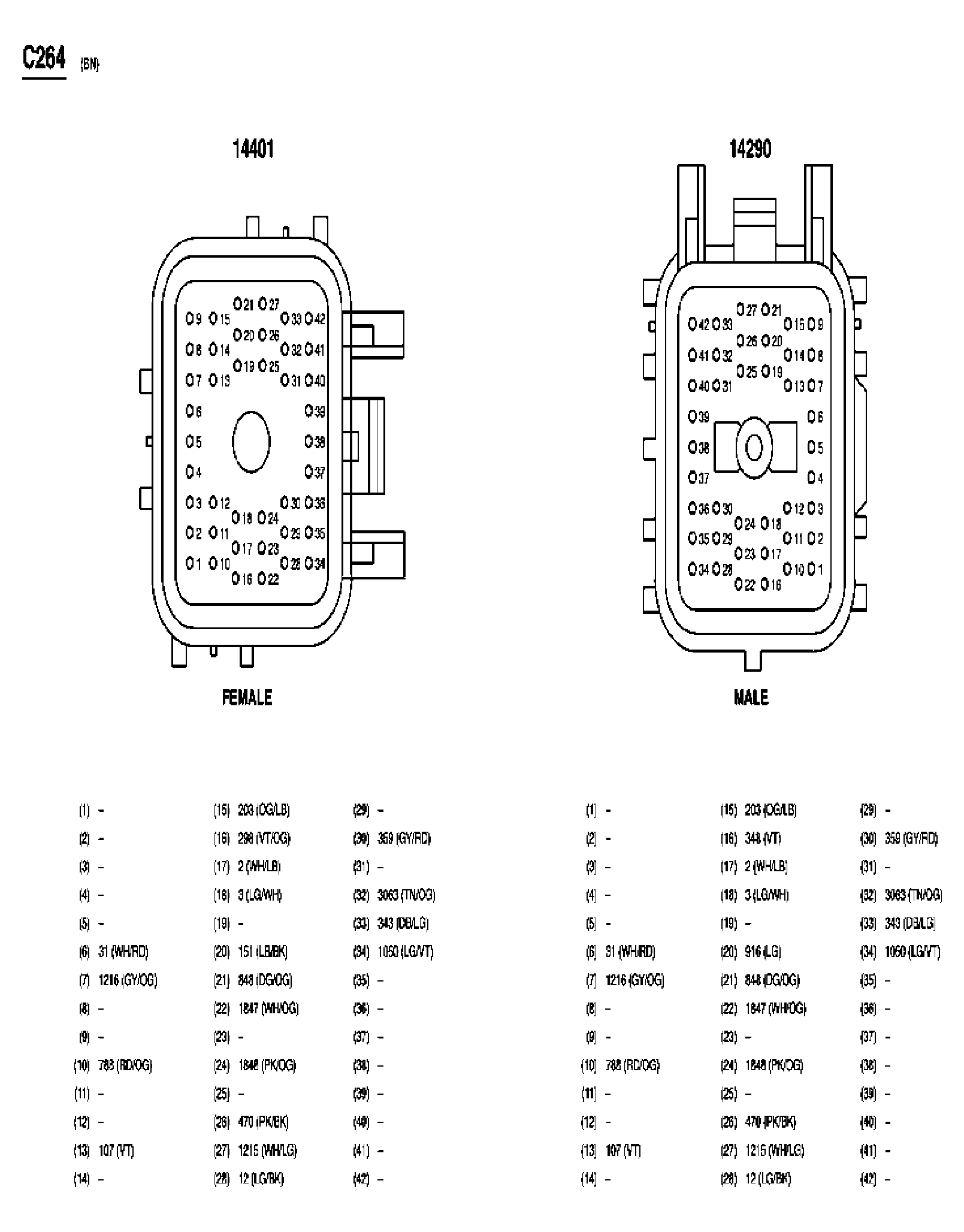

Fig 79: Inline Connector End View (C264)

G03994455

Courtesy of FORD MOTOR CO.

Fig 80: Inline Connector End View (C265)

G07844952

Courtesy of FORD MOTOR CO.

Fig 81: Front Blower Motor Speed Controller Connector End View (C271a)

G07844953

Courtesy of FORD MOTOR CO.

Fig 82: Inline Connector End View (C276)

G07844954

Courtesy of FORD MOTOR CO.

Fig 83: Deactivator Switch Connector End View (C277)

G07844955

Courtesy of FORD MOTOR CO.

Fig 84: Brake Pedal Position Switch Connector End View (C278)

G07844956

Courtesy of FORD MOTOR CO.

Fig 85: Traction Control Switch Connector End View (C280)

G07844957

Courtesy of FORD MOTOR CO.

Fig 86: Autolamp/Sunload Sensor Connector End View (C287)

G07844958

Courtesy of FORD MOTOR CO.

Fig 87: Temperature Blend Door Actuator Connector End View (C289)

G07844959

Courtesy of FORD MOTOR CO.

Fig 88: Inline Connector End View (C291)

G07844960

Courtesy of FORD MOTOR CO.

Fig 89: Front Blower Motor Resistor Assembly Connector End View (C293)

G07844961

Courtesy of FORD MOTOR CO.

Fig 90: Function Selector Switch Assembly Connector End View (C294a)

G07844962

Courtesy of FORD MOTOR CO.

Fig 91: Function Selector Switch Assembly Connector End View (C294b)

G07844963

Courtesy of FORD MOTOR CO.

Fig 92: Function Selector Switch Assembly Connector End View (C294c)

G07844964

Courtesy of FORD MOTOR CO.

Fig 93: Evaporator Discharge Air Temperature Sensor Connector End View (C296)

G07844965

Courtesy of FORD MOTOR CO.

Fig 94: High Mounted Stoplamp Connector End View (C302a)

G07844966

Courtesy of FORD MOTOR CO.

Fig 95: High Mounted Stoplamp Connector End View (C302b)

G07844967

Courtesy of FORD MOTOR CO.

Fig 96: Side Impact Sensor, Right Connector End View (C304)

G07844968

Courtesy of FORD MOTOR CO.

Fig 97: Side Impact Sensor, Left Connector End View (C305)

G07844969

Courtesy of FORD MOTOR CO.

Fig 98: Parking Brake Switch Connector End View (C306)

G07844970

Courtesy of FORD MOTOR CO.

Fig 99: Restraints Control Module Connector End View (C310a)

G07844971

Courtesy of FORD MOTOR CO.

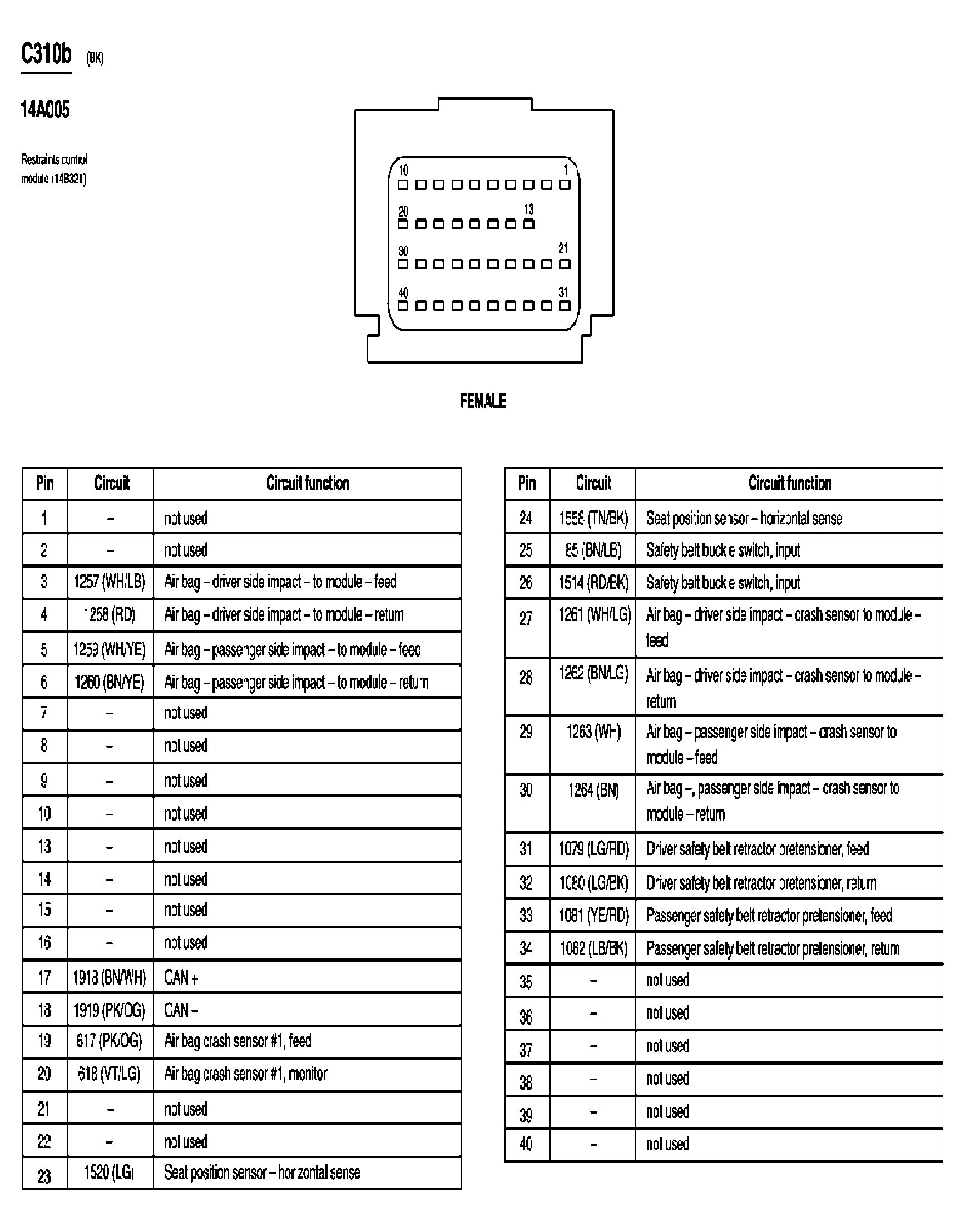

Fig 100: Restraints Control Module Connector End View (C310b)

G03994462

Courtesy of FORD MOTOR CO.

Fig 101: Inline Connector End View (C313)

G07844972

Courtesy of FORD MOTOR CO.

Fig 102: Inline Connector End View (C314)

G07844973

Courtesy of FORD MOTOR CO.

Fig 103: Inline Connector End View (C315)

G07844974

Courtesy of FORD MOTOR CO.

Fig 104: Inline Connector End View (C316)

G07844975

Courtesy of FORD MOTOR CO.

Fig 105: Cigar Lighter, Front Connector End View (C319)

G07844976

Courtesy of FORD MOTOR CO.

Fig 106: Inline Connector End View (C327)

G07844977

Courtesy of FORD MOTOR CO.

Fig 107: Seat Adjust Switch, Driver Side Front Connector End View (C330)

G07844978

Courtesy of FORD MOTOR CO.

Fig 108: Power Seat Motor Assembly, Right Connector End View (C332)

G07844979

Courtesy of FORD MOTOR CO.

Fig 109: Side Air Bag Module, Right Connector End View (C337)

G07844980

Courtesy of FORD MOTOR CO.

Fig 110: Seat Track Position Sensor, Left Connector End View (C356)

G07844981

Courtesy of FORD MOTOR CO.

Fig 111: Power Seat Motor Assembly, Left Connector End View (C357)

G07844982

Courtesy of FORD MOTOR CO.

Fig 112: Seat Track Position Sensor, Left Connector End View (C358)

G07844983

Courtesy of FORD MOTOR CO.

Fig 113: Seat Adjust Switch, Driver Side Front Connector End View (C360)

G07844984

Courtesy of FORD MOTOR CO.

Fig 114: Side Air Bag Module, Left Connector End View (C367)

G07844985

Courtesy of FORD MOTOR CO.

Fig 115: Ashtray Illumination Lamp Connector End View (C370)

G07844986

Courtesy of FORD MOTOR CO.

Fig 116: Power Point Connector End View (C380)

G07844987

Courtesy of FORD MOTOR CO.

Fig 117: Safety Belt Assembly, Left Connector End View (C381)

G07844988

Courtesy of FORD MOTOR CO.

Fig 118: Power Antenna Module Connector End View (C387)

G07844989

Courtesy of FORD MOTOR CO.

Fig 119: Rear Control Unit (RCU) Connector End View (C388a)

G07844990

Courtesy of FORD MOTOR CO.

Fig 120: Rear Control Unit (RCU) Connector End View (C388b)

G07844991

Courtesy of FORD MOTOR CO.

Fig 121: Rear Control Unit (RCU) Connector End View (C388c)

G07844992

Courtesy of FORD MOTOR CO.

Fig 122: Safety Belt Assembly, Right Connector End View (C389)

G07844993

Courtesy of FORD MOTOR CO.

Fig 123: Inertia Fuel Shutoff (IFS) Switch Connector End View (C392)

G07844994

Courtesy of FORD MOTOR CO.

Fig 124: Rear Window Defrost Grid Connector End View (C402a)

G07844995

Courtesy of FORD MOTOR CO.

Fig 125: Rear Window Defrost Grid Connector End View (C402b)

G07844996

Courtesy of FORD MOTOR CO.

Fig 126: Inline Connector End View (C406)

G07844997

Courtesy of FORD MOTOR CO.

Fig 127: Inline Connector End View (C408)

G07844998

Courtesy of FORD MOTOR CO.

Fig 128: Inline Connector End View (C410)

G07844999

Courtesy of FORD MOTOR CO.

Fig 129: Inline Connector End View (C411)

G07845000

Courtesy of FORD MOTOR CO.

Fig 130: Park/Turn Lamp, Left Rear Connector End View (C412)

G07845001

Courtesy of FORD MOTOR CO.

Fig 131: Turn Lamp, Left Rear Connector End View (C413)

G07845002

Courtesy of FORD MOTOR CO.

Fig 132: Park/Turn Lamp, Right Rear Connector End View (C415)

G07845003

Courtesy of FORD MOTOR CO.

Fig 133: Turn Lamp, Right Rear Connector End View (C416)

G07845004

Courtesy of FORD MOTOR CO.

Fig 134: Tail Lamp, Right Connector End View (C418)

G07845005

Courtesy of FORD MOTOR CO.

Fig 135: Tail Lamp, Left Connector End View (C419)

G07845006

Courtesy of FORD MOTOR CO.

Fig 136: Inline Connector End View (C423)

G07845007

Courtesy of FORD MOTOR CO.

Fig 137: Wheel Speed Sensor, Right Rear Connector End View (C426)

G07845008

Courtesy of FORD MOTOR CO.

Fig 138: Luggage Compartment Lamp Connector End View (C428)

G07845009

Courtesy of FORD MOTOR CO.

Fig 139: Luggage Compartment Lid Release Solenoid Connector End View (C430)

G07845010

Courtesy of FORD MOTOR CO.

Fig 140: Inline Connector End View (C431)

G07845011

Courtesy of FORD MOTOR CO.

Fig 141: Inline Connector End View (C432)

G07845012

Courtesy of FORD MOTOR CO.

Fig 142: Fuel Pump Driver Module Connector End View (C433)

G07845013

Courtesy of FORD MOTOR CO.

Fig 143: Fuel Sender Connector End View (C434)

G07845014

Courtesy of FORD MOTOR CO.

Fig 144: Fuel Tank Pressure Transducer Sensor Connector End View (C435)

G07845015

Courtesy of FORD MOTOR CO.

Fig 145: Inline Connector End View (C438)

G07845016

Courtesy of FORD MOTOR CO.

Fig 146: Wheel Speed Sensor, Left Rear Connector End View (C440)

G07845017

Courtesy of FORD MOTOR CO.

Fig 147: Evaporative Emission (EVAP) Canister Vent Valve Connector End View (C450)

G07845018

Courtesy of FORD MOTOR CO.

Fig 148: Reversing Lamp, Left Connector End View (C451)

G07845019

Courtesy of FORD MOTOR CO.

Fig 149: License Plate Lamp, Left Connector End View (C452)

G07845020

Courtesy of FORD MOTOR CO.

Fig 150: Reversing Lamp, Right Connector End View (C461)

G07845021

Courtesy of FORD MOTOR CO.

Fig 151: License Plate Lamp, Right Connector End View (C462)

G07845022

Courtesy of FORD MOTOR CO.

Fig 152: Inline Connector End View (C465)

G07845023

Courtesy of FORD MOTOR CO.

Fig 153: High Mounted Stoplamp Connector End View (C475)

G07845024

Courtesy of FORD MOTOR CO.

Fig 154: Rear Wiper Motor Assembly Connector End View (C476)

G07845025

Courtesy of FORD MOTOR CO.

Fig 155: Rear Window Washer Pump Motor Connector End View (C477)

G07845026

Courtesy of FORD MOTOR CO.

Fig 156: Liftgate Glass Ajar Switch Connector End View (C478)

G07845027

Courtesy of FORD MOTOR CO.

Fig 157: Liftgate Ajar Switch Connector End View (C479)

G07845028

Courtesy of FORD MOTOR CO.

Fig 158: Liftgate Lock Actuator Connector End View (C480)

G07845029

Courtesy of FORD MOTOR CO.

Fig 159: Side Lamp, Left Rear Connector End View (C481)

G07845030

Courtesy of FORD MOTOR CO.

Fig 160: Side Lamp, Right Rear Connector End View (C482)

G07845031

Courtesy of FORD MOTOR CO.

Fig 161: Anti-Theft Luggage Compartment Switch Connector End View (C483)

G07845032

Courtesy of FORD MOTOR CO.

Fig 162: Speaker, Left Rear Connector End View (C484)

G07845033

Courtesy of FORD MOTOR CO.

Fig 163: Speaker, Right Rear Connector End View (C485)

G07845034

Courtesy of FORD MOTOR CO.

Fig 164: Reversing Lamp, Left Connector End View (C487)

G07845035

Courtesy of FORD MOTOR CO.

Fig 165: Reversing Lamp, Right Connector End View (C488)

G07845036

Courtesy of FORD MOTOR CO.

Fig 166: Cargo Space Lamp Connector End View (C489)

G07845037

Courtesy of FORD MOTOR CO.

Fig 167: License Lamps Connector End View (C490)

G07845038

Courtesy of FORD MOTOR CO.

Fig 168: Pulse Stretcher Module Connector End View (C491)

G07845039

Courtesy of FORD MOTOR CO.

Fig 169: Key Pad Switch Assembly Connector End View (C500)

G07845040

Courtesy of FORD MOTOR CO.

Fig 170: Lock Cylinder Switch, Left Connector End View (C502)

G07845041

Courtesy of FORD MOTOR CO.

Fig 171: Master Window Adjust Switch Connector End View (C504a)

G07845042

Courtesy of FORD MOTOR CO.

Fig 172: Master Window Adjust Switch Connector End View (C504b)

G07845043

Courtesy of FORD MOTOR CO.

Fig 173: Door Lock Switch, Driver Side Connector End View (C505)

G07845044

Courtesy of FORD MOTOR CO.

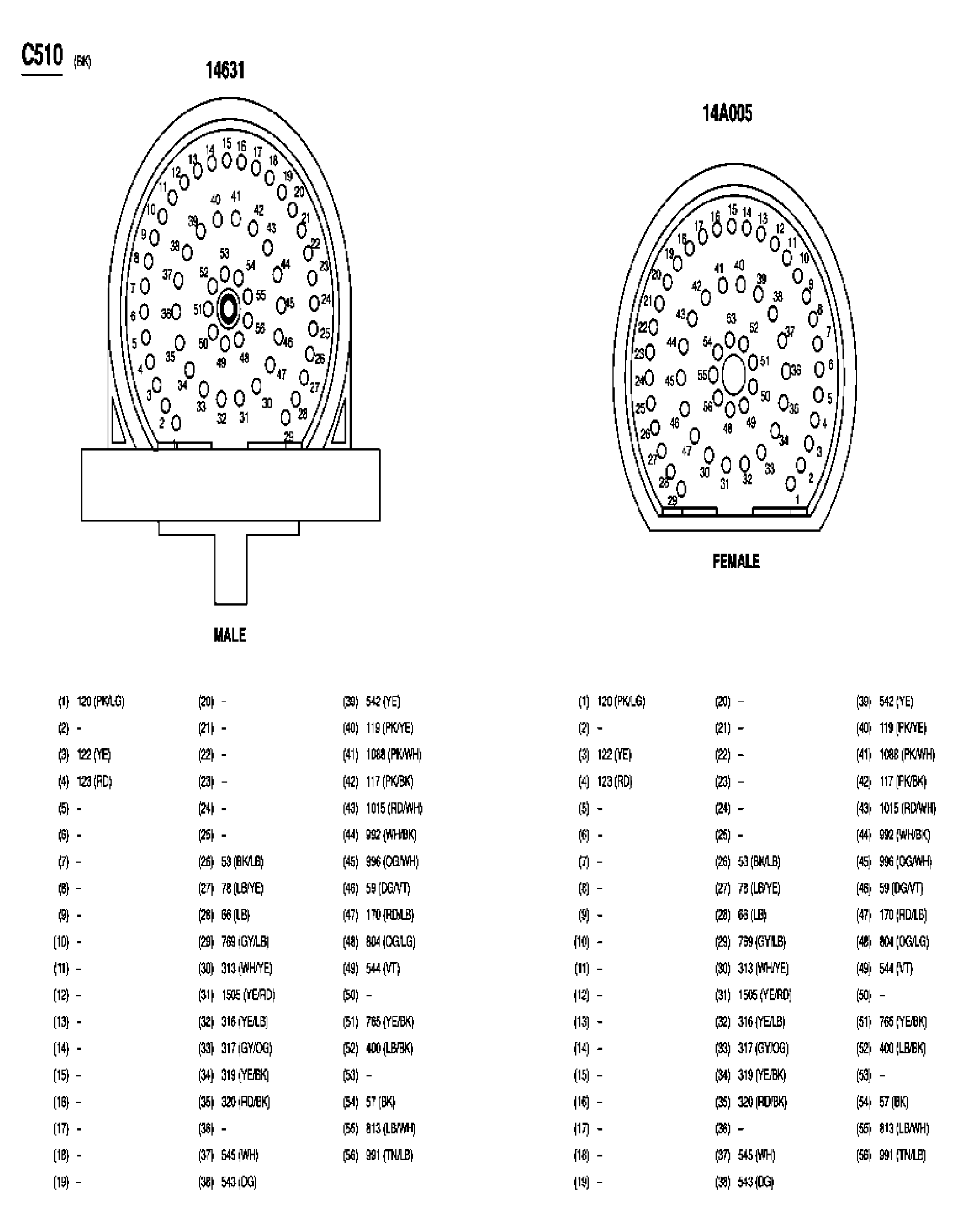

Fig 174: Inline Connector End View (C510)

G03994482

Courtesy of FORD MOTOR CO.

Fig 175: Tweeter, Left Front Connector End View (C513)

G07845045

Courtesy of FORD MOTOR CO.

Fig 176: Exterior Rear View Mirror, Driver Side Connector End View (C520)

G07845046

Courtesy of FORD MOTOR CO.

Fig 177: Speaker, Left Front Connector End View (C523)

G07845047

Courtesy of FORD MOTOR CO.

Fig 178: Power Window Motor, Driver Side Front Connector End View (C524)

G07845048

Courtesy of FORD MOTOR CO.

Fig 179: Door Lock Actuator, Left Front Connector End View (C525)

G07845049

Courtesy of FORD MOTOR CO.

Fig 180: Door Ajar Switch, Left Front Connector End View (C526)

G07845050

Courtesy of FORD MOTOR CO.

Fig 181: Exterior Rear View Mirror Switch Connector End View (C527)

G07845051

Courtesy of FORD MOTOR CO.

Fig 182: Exterior Rear View Mirror, Passenger Side Connector End View (C601)

G07845052

Courtesy of FORD MOTOR CO.

Fig 183: Door Ajar Switch, Right Front Connector End View (C602)

G07845053

Courtesy of FORD MOTOR CO.

Fig 184: Door Lock Actuator, Right Front Connector End View (C603)

G07845054

Courtesy of FORD MOTOR CO.

Fig 185: Window Adjust Switch, Passenger Side Connector End View (C604)

G07845055

Courtesy of FORD MOTOR CO.

Fig 186: Door Lock Switch, Passenger Side Connector End View (C605)

G07845056

Courtesy of FORD MOTOR CO.

Fig 187: Power Window Motor, Passenger Side Front Connector End View (C608)

G07845057

Courtesy of FORD MOTOR CO.

Fig 188: Speaker, Right Front Connector End View (C612)

G07845058

Courtesy of FORD MOTOR CO.

Fig 189: Tweeter, Right Front Connector End View (C613)

G07845059

Courtesy of FORD MOTOR CO.

Fig 190: Window Adjust Switch, Left Rear Connector End View (C701)

G07845060

Courtesy of FORD MOTOR CO.

Fig 191: Power Window Motor, Left Rear Connector End View (C703)

G07845061

Courtesy of FORD MOTOR CO.

Fig 192: Door Lock Actuator, Left Rear Connector End View (C704)

G07845062

Courtesy of FORD MOTOR CO.

Fig 193: Inline Connector End View (C710)

G07845063

Courtesy of FORD MOTOR CO.

Fig 194: Door Ajar Switch, Left Rear Connector End View (C715)

G07845064

Courtesy of FORD MOTOR CO.

Fig 195: Window Adjust Switch, Right Rear Connector End View (C801)

G07845065

Courtesy of FORD MOTOR CO.

Fig 196: Power Window Motor, Right Rear Connector End View (C803)

G07845066

Courtesy of FORD MOTOR CO.

Fig 197: Door Lock Actuator, Right Rear Connector End View (C804)

G07845067

Courtesy of FORD MOTOR CO.

Fig 198: Inline Connector End View (C810)

G07845068

Courtesy of FORD MOTOR CO.

Fig 199: Door Ajar Switch, Right Rear Connector End View (C820)

G07845069

Courtesy of FORD MOTOR CO.

Fig 200: Map Reading Lamps Connector End View (C901)

G07845070

Courtesy of FORD MOTOR CO.

Fig 201: Vanity Mirror Lamp, Right Connector End View (C906)

G07845071

Courtesy of FORD MOTOR CO.

Fig 202: Vanity Mirror Lamp, Left Connector End View (C907)

G07845072

Courtesy of FORD MOTOR CO.

Fig 203: Electronic Compass Connector End View (C909)

G07845073

Courtesy of FORD MOTOR CO.

Fig 204: Electrochromatic Inside Mirror Unit Connector End View (C911)

G07845074

Courtesy of FORD MOTOR CO.

Fig 205: Roof Opening Panel Switch Connector End View (C912)

G07845075

Courtesy of FORD MOTOR CO.

Fig 206: Inline Connector End View (C913)

G07845076

Courtesy of FORD MOTOR CO.

Fig 207: Interior Lamps, Front Connector End View (C918)

G07845077

Courtesy of FORD MOTOR CO.

Fig 208: Inline Connector End View (C919)

G07845078

Courtesy of FORD MOTOR CO.

Fig 209: Roof Opening Panel Module Connector End View (C921)

G07845079

Courtesy of FORD MOTOR CO.

Fig 210: Inline Connector End View (C922)

G07845080

Courtesy of FORD MOTOR CO.

Fig 211: Wiper High/Low Relay Connector End View (C1001)

G07845081

Courtesy of FORD MOTOR CO.

Fig 212: Wiper Run/Park Relay Connector End View (C1002)

G07845082

Courtesy of FORD MOTOR CO.

Fig 213: Fog Lamp Relay Connector End View (C1007)

G07845083

Courtesy of FORD MOTOR CO.

Fig 214: A/C Clutch Relay Connector End View (C1008)

G07845084

Courtesy of FORD MOTOR CO.

Fig 215: PCM Power Relay Connector End View (C1016)

G07845085

Courtesy of FORD MOTOR CO.

Fig 216: Starter Relay Connector End View (C1017)

G07845086

Courtesy of FORD MOTOR CO.

Fig 217: Headlamp, Left Connector End View (C1021)

G07845087

Courtesy of FORD MOTOR CO.

Fig 218: Park/Turn Lamp, Left Front Connector End View (C1023)

G07845088

Courtesy of FORD MOTOR CO.

Fig 219: Engine Cooling Fan Resistor Connector End View (C1027)

G07845089

Courtesy of FORD MOTOR CO.

Fig 220: Engine Cooling Fan Brake Relay Connector End View (C1028)

G07845090

Courtesy of FORD MOTOR CO.

Fig 221: Battery Junction Box (BJB) Connector End View (C1035a)

G07845091

Courtesy of FORD MOTOR CO.

Fig 222: Battery Junction Box (BJB) Connector End View (C1035b)

G07845092

Courtesy of FORD MOTOR CO.

Fig 223: Headlamp, Right Connector End View (C1041)

G07845093

Courtesy of FORD MOTOR CO.

Fig 224: Park/Turn Lamp, Right Front Connector End View (C1043)

G07845094

Courtesy of FORD MOTOR CO.

Fig 225: Fuel Pump Relay Connector End View (C1051)

G07845095

Courtesy of FORD MOTOR CO.

Fig 226: Engine Cooling Fan Relay Connector End View (C1055)

G07845096

Courtesy of FORD MOTOR CO.

Fig 227: High Speed Fan Control Relay Connector End View (C1056)

G07845097

Courtesy of FORD MOTOR CO.

Fig 228: Low Speed Fan Control Relay Connector End View (C1058)

G07845098

Courtesy of FORD MOTOR CO.

Fig 229: Dual Pressure Switch Connector End View (C1062)

G07845099

Courtesy of FORD MOTOR CO.

Fig 230: Engine Coolant Temperature (ECT) Sensor Connector End View (C1064)

G07845100

Courtesy of FORD MOTOR CO.

Fig 231: Ignition Coil Connector End View (C1065)

G07845101

Courtesy of FORD MOTOR CO.

Fig 232: Idle Air Control (IAC) Valve Connector End View (C1066)

G07845102

Courtesy of FORD MOTOR CO.

Fig 233: Differential Pressure Feedback EGR (DPFE) Sensor Connector End View (C1068)

G07845103

Courtesy of FORD MOTOR CO.

Fig 234: EGR Vacuum Regulator Solenoid Connector End View (C1072)

G07845104

Courtesy of FORD MOTOR CO.

Fig 235: Injector Pressure Sensor Connector End View (C1073)

G07845105

Courtesy of FORD MOTOR CO.

Fig 236: Engine Cooling Fan Motor 1 Connector End View (C1074)

G07845106

Courtesy of FORD MOTOR CO.

Fig 237: Engine Cooling Fan Motor 2 Connector End View (C1077)

G07845107

Courtesy of FORD MOTOR CO.

Fig 238: Rear Window Defrost Relay 2 Connector End View (C1099)

G07845108

Courtesy of FORD MOTOR CO.

Fig 239: Battery Connector End View (C1100a)

G07845109

Courtesy of FORD MOTOR CO.

Fig 240: Battery Connector End View (C1100b)

G07845110

Courtesy of FORD MOTOR CO.

Fig 241: Generator Connector End View (C1104)

G07845111

Courtesy of FORD MOTOR CO.

Fig 242: Intake Manifold Runner Control (IMRC) Module Connector End View (C1286)

G07845112

Courtesy of FORD MOTOR CO.

Fig 243: Power Steering Pressure Sensor Connector End View (C1311)

G07845113

Courtesy of FORD MOTOR CO.

Fig 244: A/C Clutch Cycling Pressure Switch Connector End View (C1525)

G07845114

Courtesy of FORD MOTOR CO.

Fig 245: Rear Window Wiper/Washer Switch Connector End View (C2000)

G07845115

Courtesy of FORD MOTOR CO.

Fig 246: PRNDL Illumination Lamp Connector End View (C2002)

G07845116

Courtesy of FORD MOTOR CO.

Fig 247: Adjustable Pedal Motor Connector End View (C2003)

G07845117

Courtesy of FORD MOTOR CO.

Fig 248: Front Blower Motor Connector End View (C2004)

G07845118

Courtesy of FORD MOTOR CO.

Fig 249: Flexible Fuel Sensor Module Connector End View (C2005)

G07845119

Courtesy of FORD MOTOR CO.

Fig 250: Brake Shift Interlock Connector End View (C2008)

G07845120

Courtesy of FORD MOTOR CO.

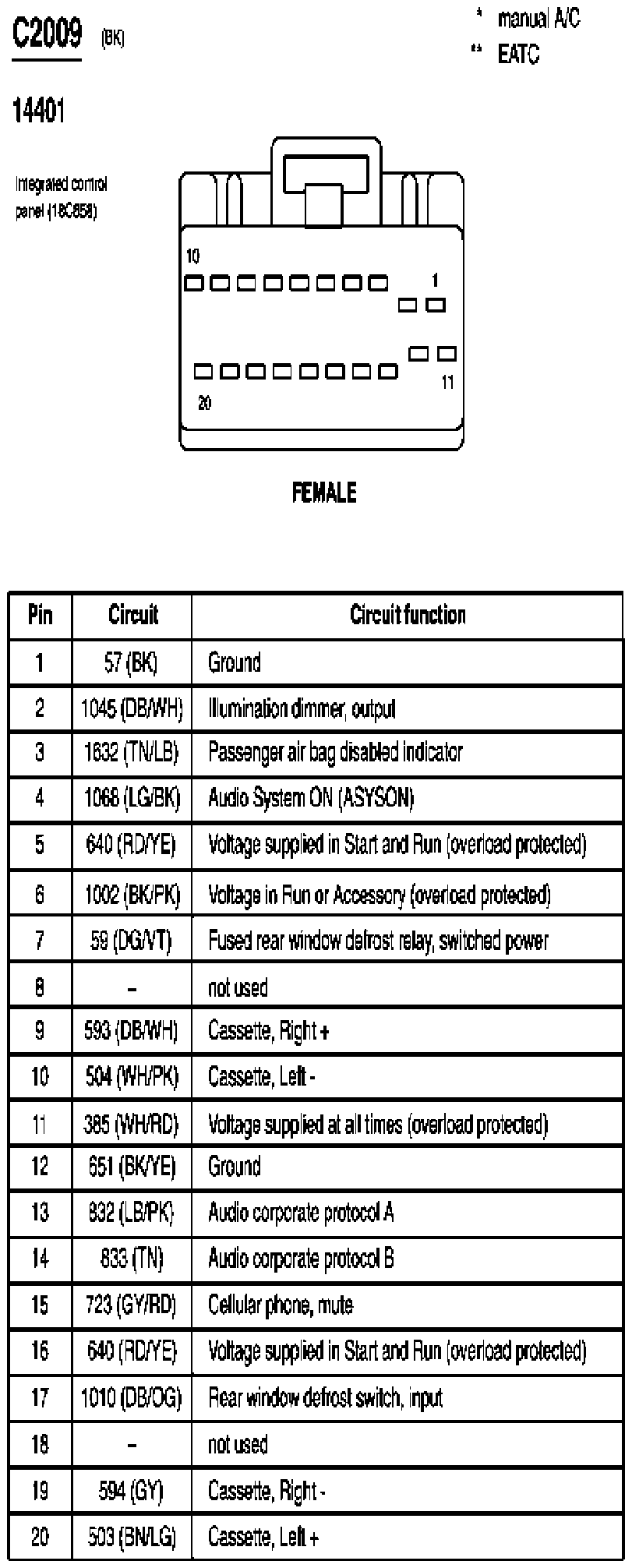

Fig 251: Integrated Control Panel Connector End View (C2009)

G07845121

Courtesy of FORD MOTOR CO.

Fig 252: Blower Motor Relay Connector End View (C2017)

G07845122

Courtesy of FORD MOTOR CO.

Fig 253: Rear Window Defrost Relay 1 Connector End View (C2021)

G07845123

Courtesy of FORD MOTOR CO.

Fig 254: Electronic Flasher Module Connector End View (C2027)

G07845124

Courtesy of FORD MOTOR CO.

Fig 255: Accessory Relay Connector End View (C2050)

G07845125

Courtesy of FORD MOTOR CO.

Fig 256: One-Touch Window Relay Connector End View (C2051)

G07845126

Courtesy of FORD MOTOR CO.

Fig 257: Adjustable Pedal Switch Connector End View (C2089)

G03994505

Courtesy of FORD MOTOR CO.

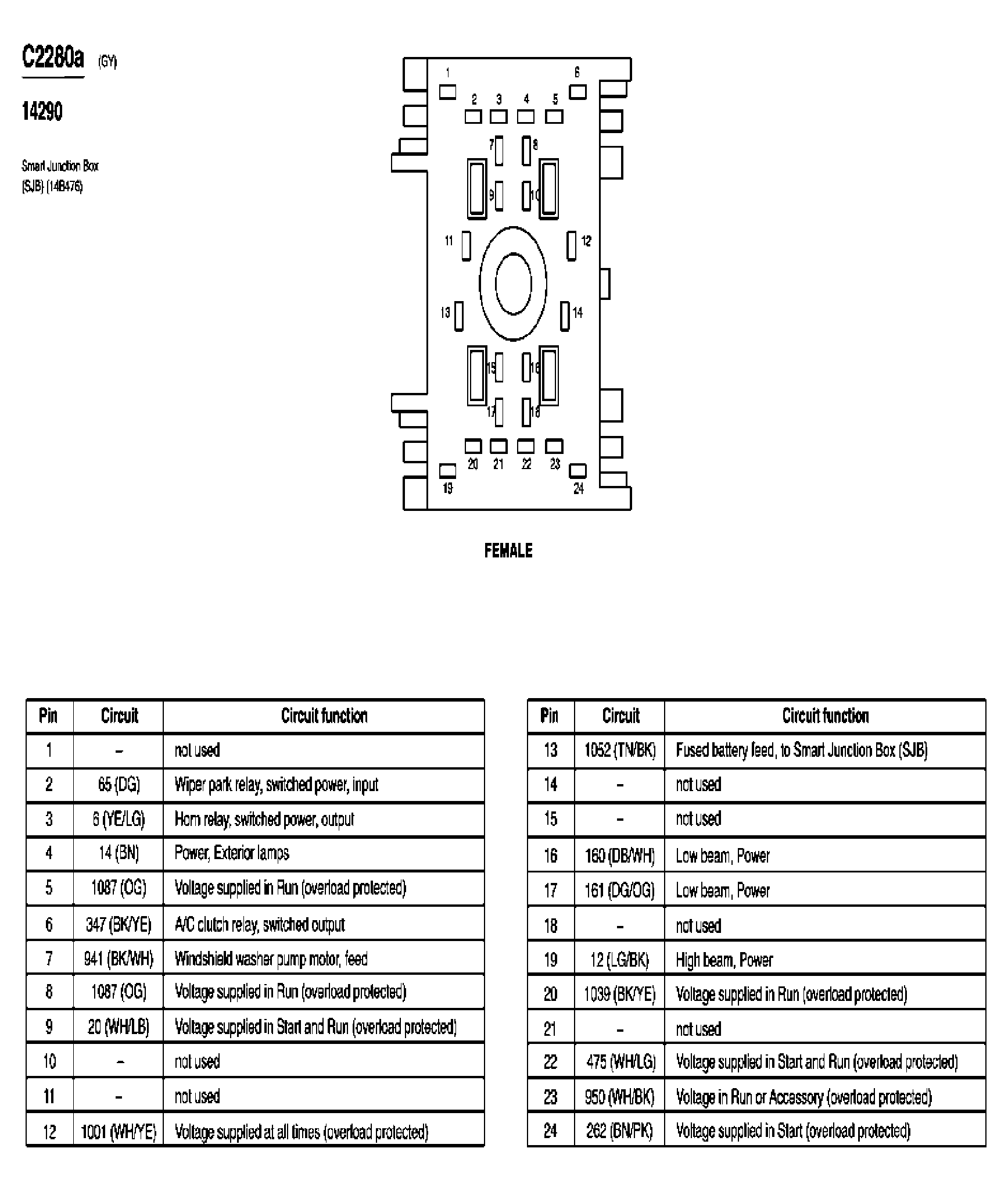

Fig 258: Smart Junction Box (SJB) Connector End View (C2280a)

G03994506

Courtesy of FORD MOTOR CO.

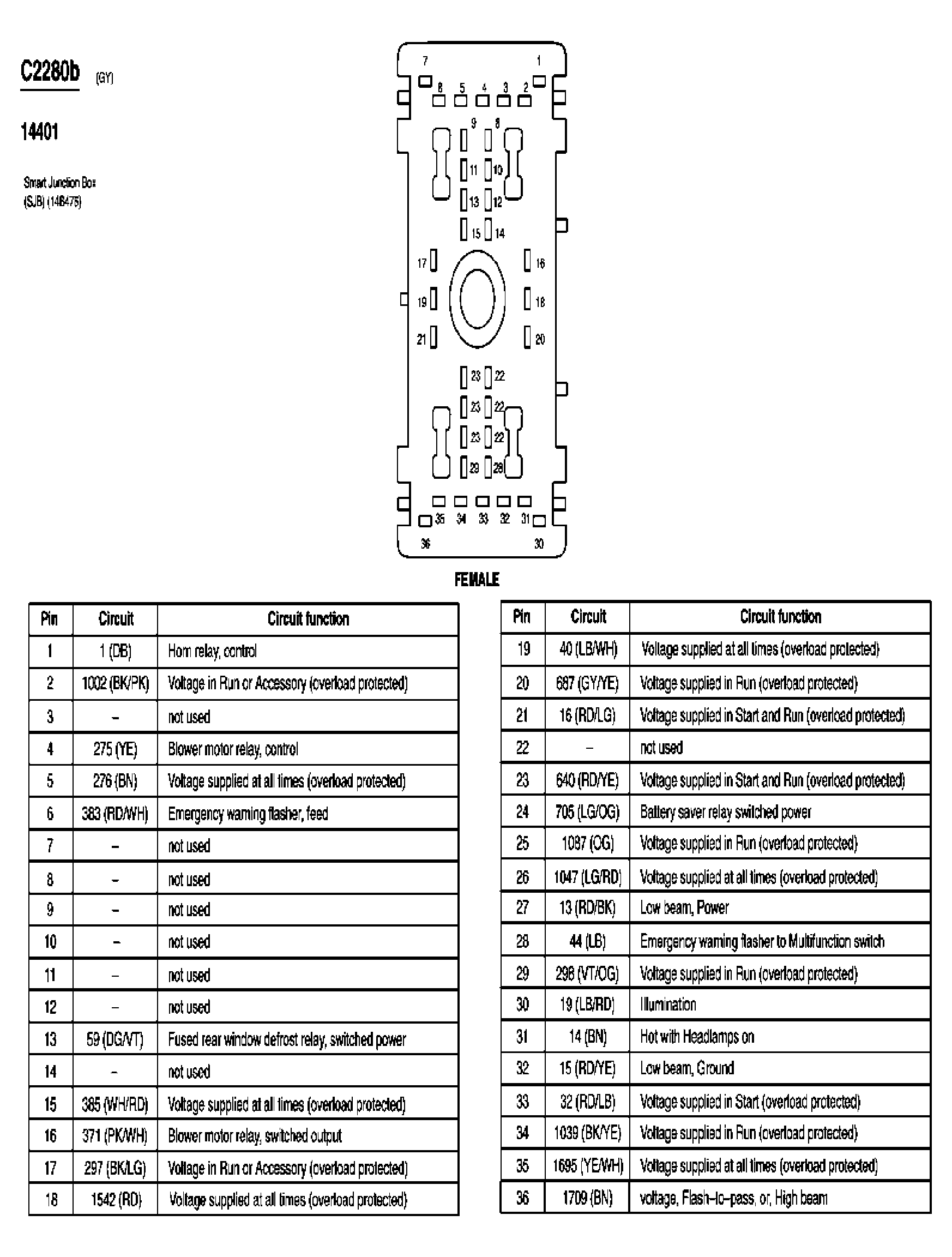

Fig 259: Smart Junction Box (SJB) Connector End View (C2280b)

G03994507

Courtesy of FORD MOTOR CO.

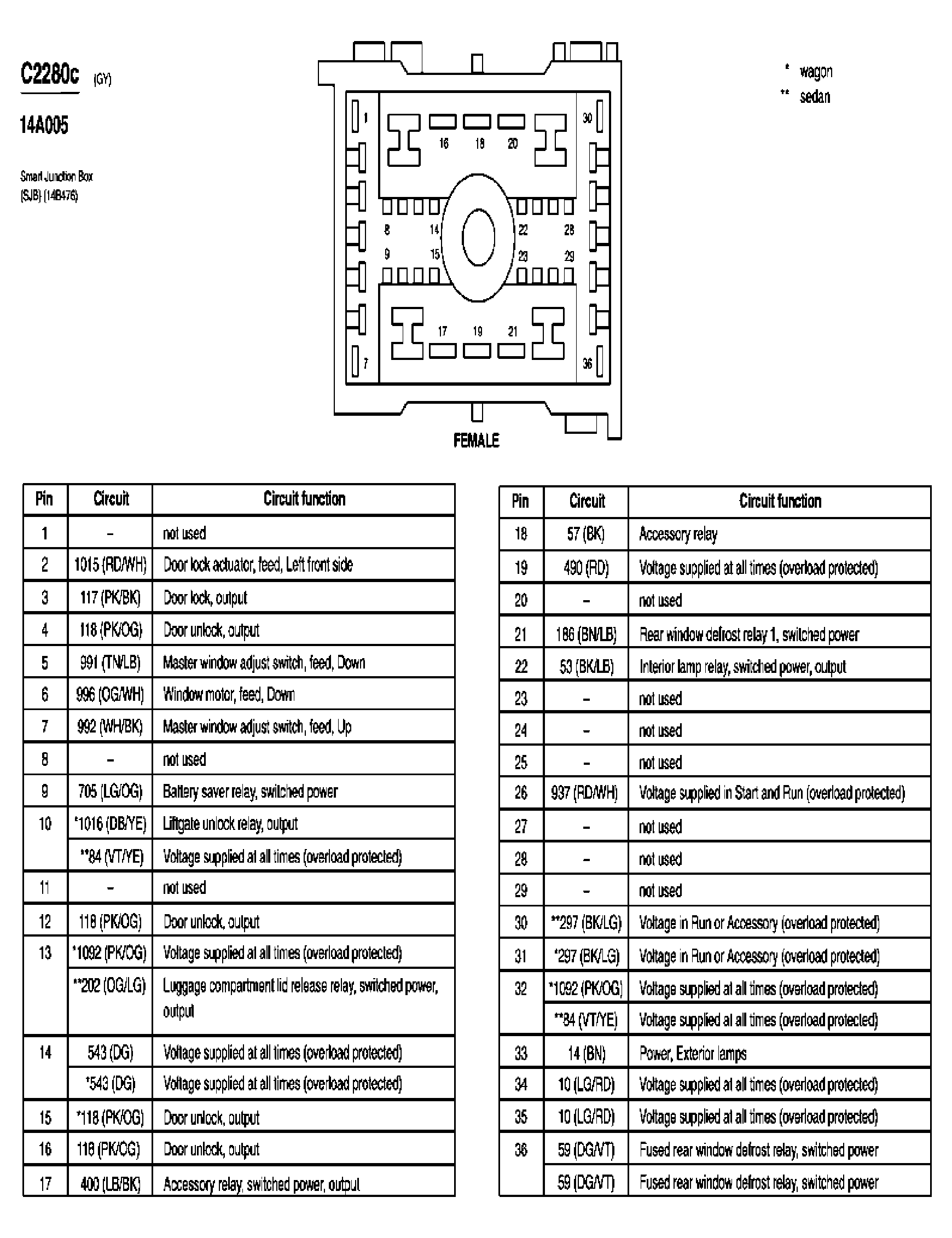

Fig 260: Smart Junction Box (SJB) Connector End View (C2280c)

G03994508

Courtesy of FORD MOTOR CO.

Fig 261: Smart Junction Box (SJB) Connector End View (C2280d)

G07845127

Courtesy of FORD MOTOR CO.

Fig 262: Smart Junction Box (SJB) Connector End View (C2280e)

G07845128

Courtesy of FORD MOTOR CO.

Fig 263: Smart Junction Box (SJB) Connector End View (C2280f)

G07845129

Courtesy of FORD MOTOR CO.

Fig 264: Ignition Switch Connector End View (C2331)

G07845130

Courtesy of FORD MOTOR CO.

Fig 265: Seat Pressure Sensor Connector End View (C3042)

G07845131

Courtesy of FORD MOTOR CO.

Fig 266: Seat Weight Sensor Module Connector End View (C3043)

G07845132

Courtesy of FORD MOTOR CO.

Fig 267: High Mounted Stoplamp Connector End View (C3175)

G07845133

Courtesy of FORD MOTOR CO.

Fig 268: Safety Belt Tension Sensor Connector End View (C3251)

G07845134

Courtesy of FORD MOTOR CO.

Fig 269: Turn Lamp, Left Rear Connector End View (C4139)

G07845135

Courtesy of FORD MOTOR CO.

Fig 270: Turn Lamp, Right Rear Connector End View (C4140)

G07845136

Courtesy of FORD MOTOR CO.
