Accelerator Cable - 2.3L: Notes

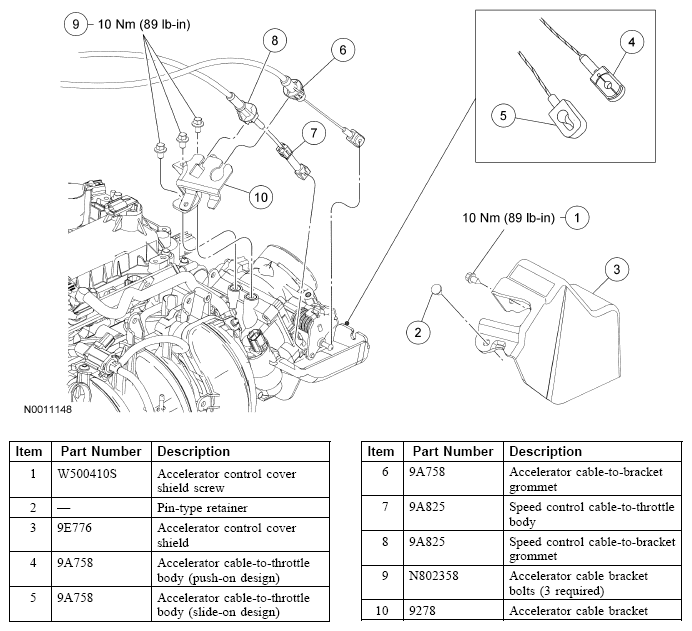

Fig 1: Exploded View Of Accelerator Cable - 2.3L (1 Of 2) With Torque Specifications
G04621274Courtesy of FORD MOTOR CO.

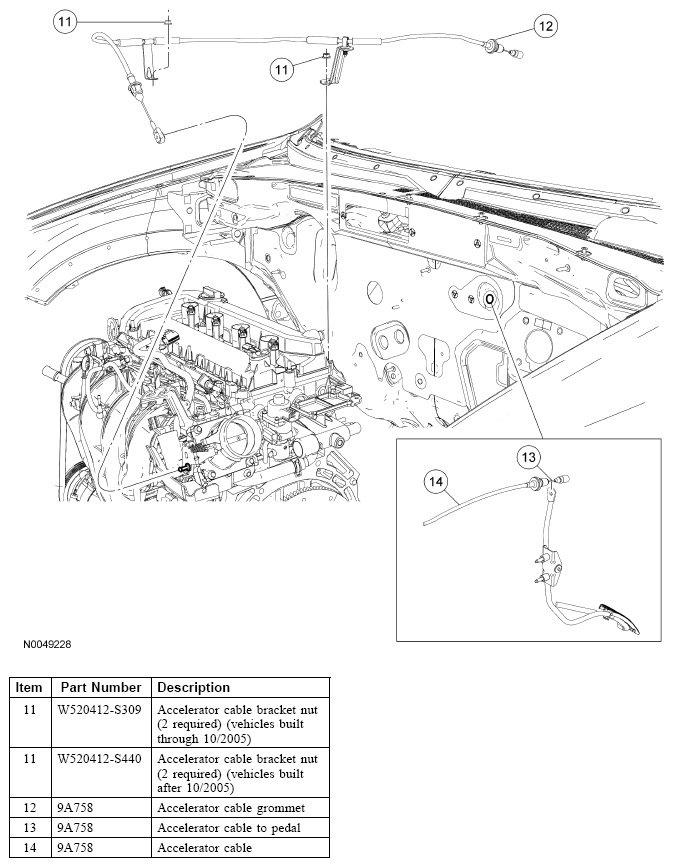

Fig 2: Exploded View Of Accelerator Cable - 2.3L (2 Of 2)
G04621275Courtesy of FORD MOTOR CO.
