Accelerator Pedal and Shaft: Notes

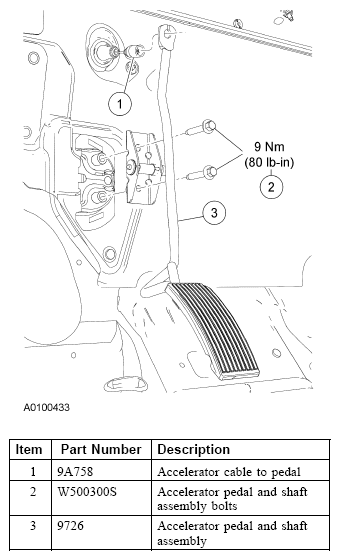

Fig 1: Exploded View Of Accelerator Pedal And Shaft With Torque Specifications
G04621283Courtesy of FORD MOTOR CO.
