Fuel Level Sensor: Notes

SPECIAL TOOL DESCRIPTION

G04657712Courtesy of FORD MOTOR CO.
 Lock Ring Wrench 310-123
G04657713Courtesy of FORD MOTOR CO.
 Fuel Storage Tanker 164-R3202 or equivalent
MATERIAL SPECIFICATION

Item Specification
Motorcraft SAE 5W-20 Premium Synthetic Blend Motor Oil XO-5W20-QSP (US); Motorcraft SAE 5W-20 Super Premium Motor Oil CXO-5W20-LSP12 (Canada); or equivalent WSS-M2C930-A

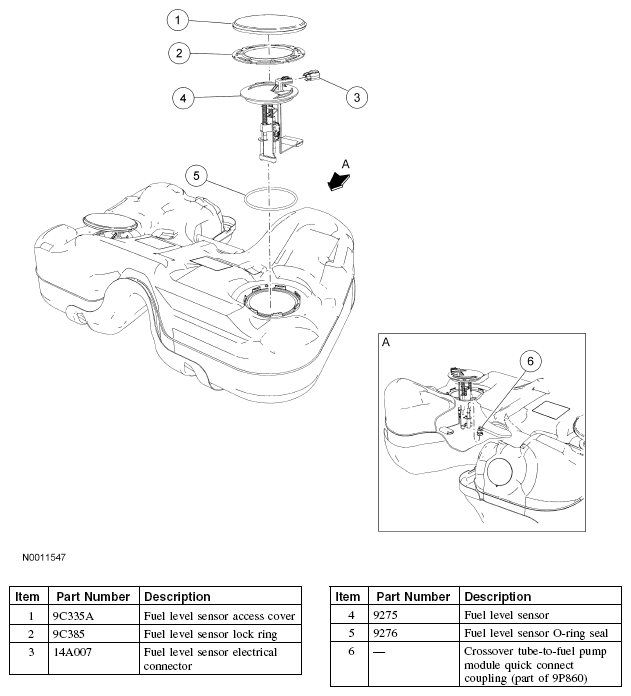

Fig 1: Identifying Fuel Level Sensor Components
G04657714Courtesy of FORD MOTOR CO.
