Toe Adjustment - Front
- Using alignment equipment and the manufacturer's instructions, measure the front toe.
- Start the engine and center the steering wheel.
- Turn the engine OFF and, using a suitable steering wheel holding device, lock the steering wheel in the straight-ahead position.

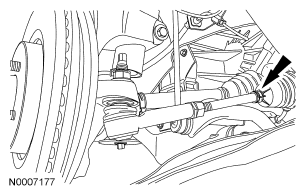

- Remove the steering gear bellows clamps.
- Loosen the nuts.
- Rotate the tie rods as necessary to adjust the toe setting.
- Tighten the nuts to 80 N.m (59 lb-ft).
- Install the steering gear bellows clamps.
- Recheck the toe settings and adjust as necessary.
NOTE:
Do not allow the steering gear bellows to twist when the tie rod is rotated.
