Transaxle Support Insulator: Removal

  1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING .
  2. Remove the 2 bolts for the rear transaxle mount.

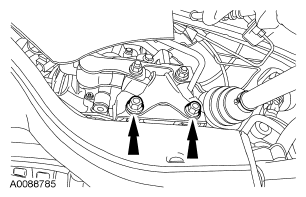

    Fig 1: Locating Rear Transaxle Mount Bolts
    G04656282Courtesy of FORD MOTOR CO.
  3. Install a suitable transmission jack to support the transaxle.
  4. Remove the upper transaxle mount bolts and remove the mount.
    Fig 2: Locating Upper Transaxle Mount Bolts (1 Of 2)
    G04656283Courtesy of FORD MOTOR CO.
