Knock Sensor (KS): Notes

Fig 1: Knock Sensor (KS) Replacement Components (1 Of 2) With Torque Specification's
G04660903Courtesy of FORD MOTOR CO.

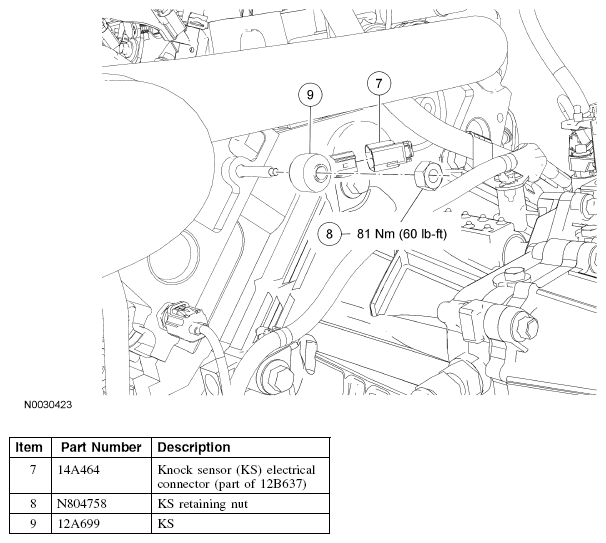

Fig 2: Knock Sensor (KS) Replacement Components (2 Of 2) With Torque Specification
G04660904Courtesy of FORD MOTOR CO.
