Door lock switch, driver side: Schematic

WARNING: This page is about a different car, the 2006 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.

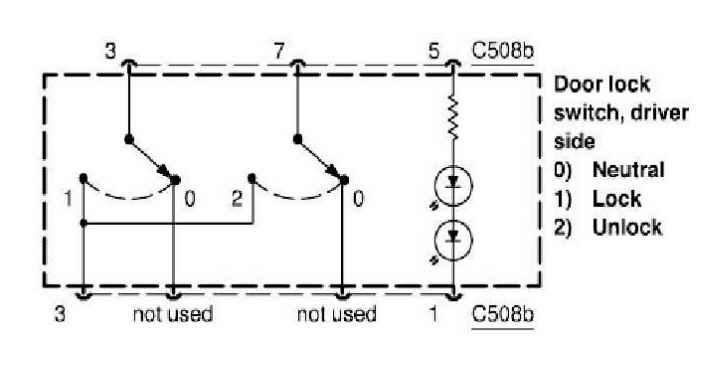

Fig 1: Door Lock Switch - Circuit Diagram (Driver Side)
G04597223Courtesy of FORD MOTOR CO.

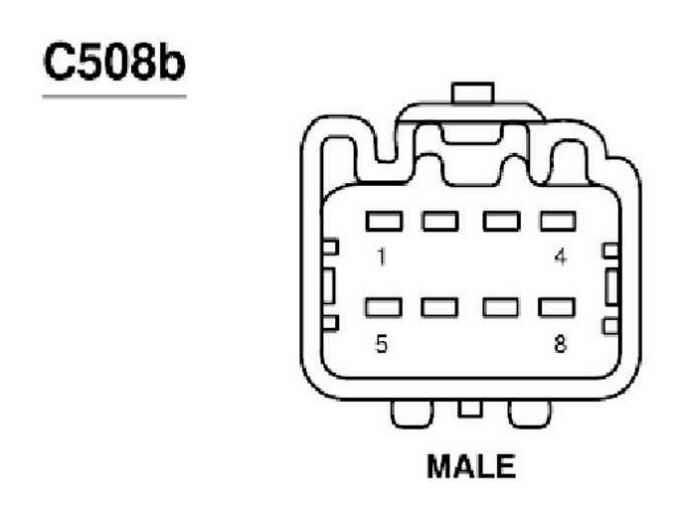

Fig 2: Identifying C508b Connector Terminals
G04597224Courtesy of FORD MOTOR CO.
