Window switch - Schematic

WARNING: This page is about a different car, the 2006 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.

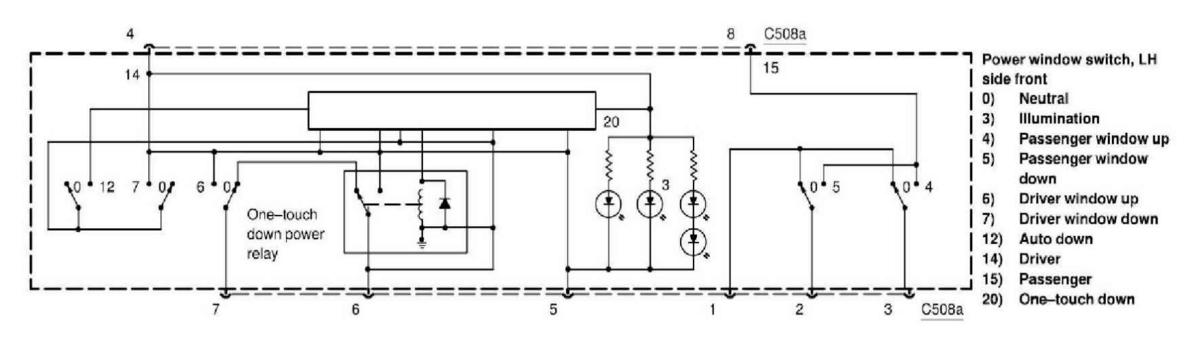

Fig 1: Power Window Switch - Circuit Diagram (LH Side Front)
G04597221Courtesy of FORD MOTOR CO.
