Accelerator Pedal - Fixed: Notes

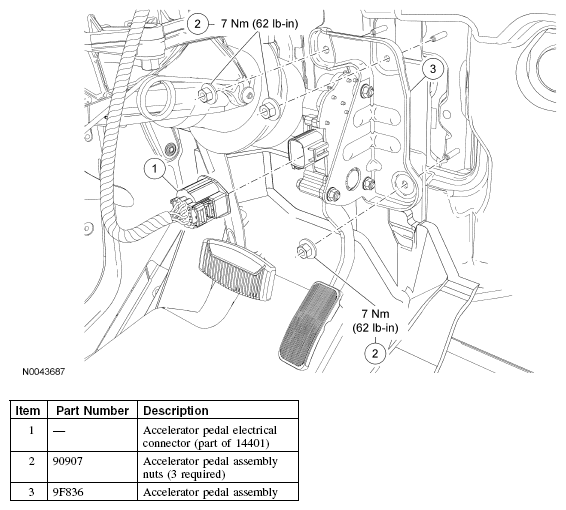

Fig 1: Identifying Accelerator Pedal - Fixed Components
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
