Mariner 4WD L4-2.3L VIN Z
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Engine Control Module
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Engine Control Module

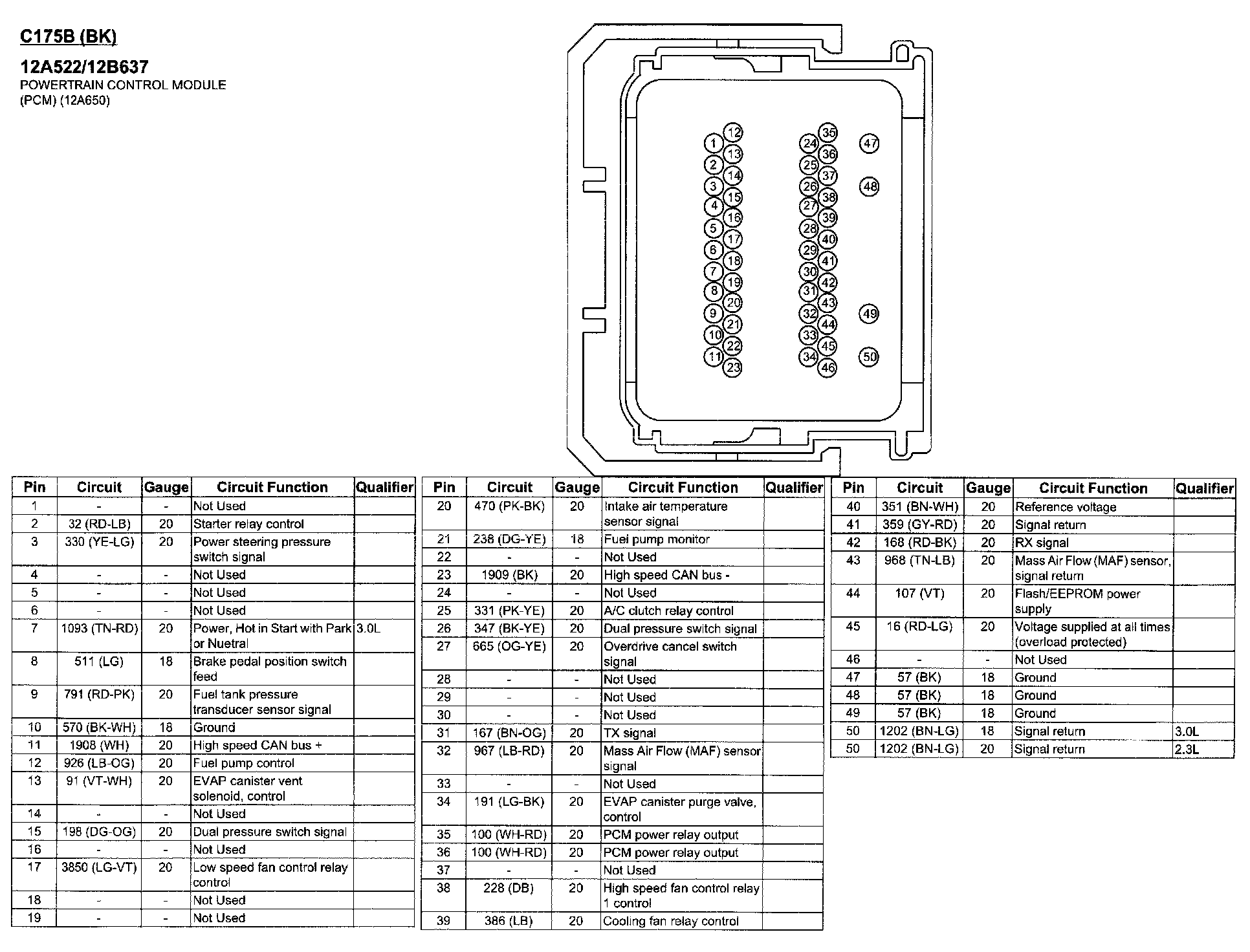

C175B:

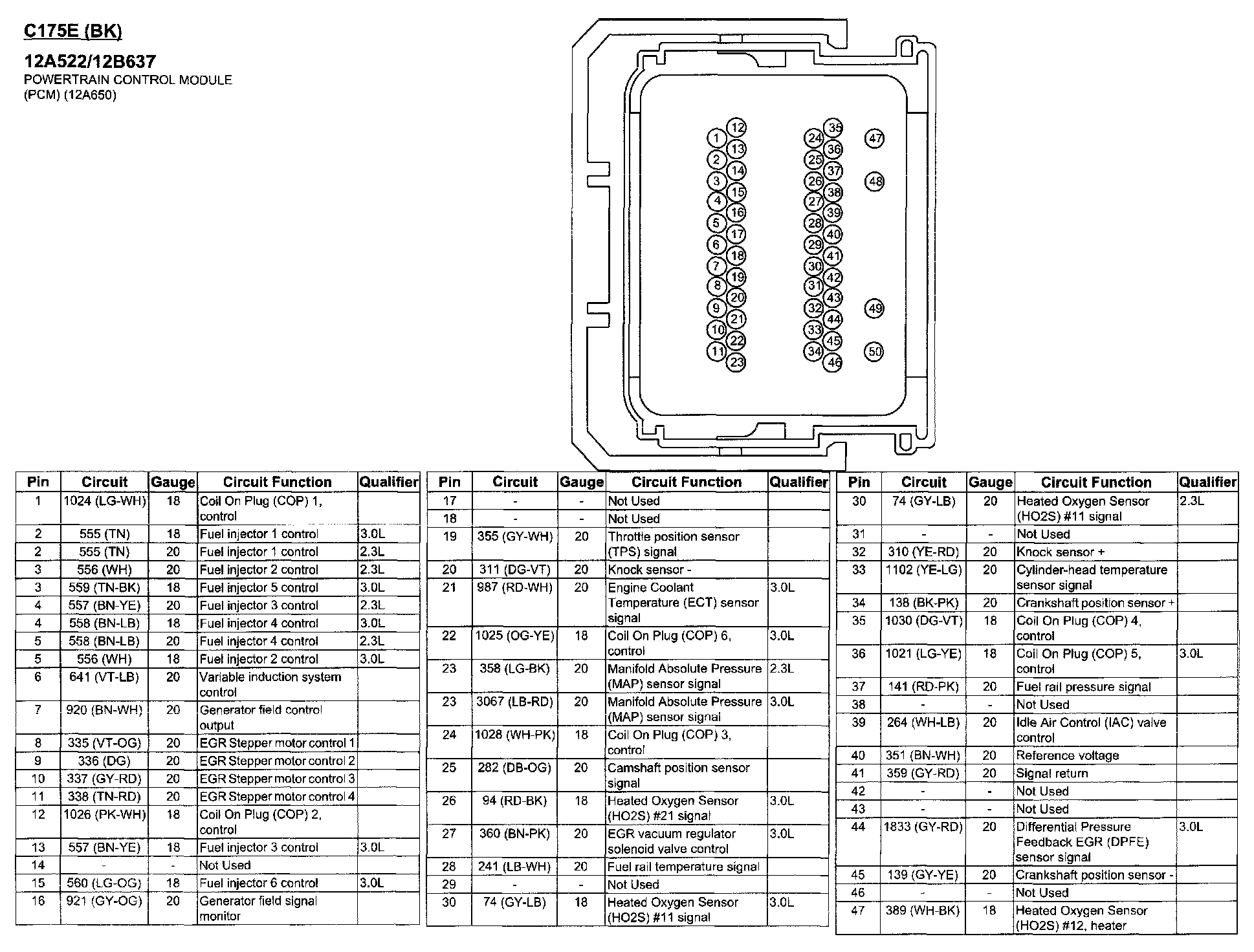

C175E (Part 1):
C175E (Part 2):

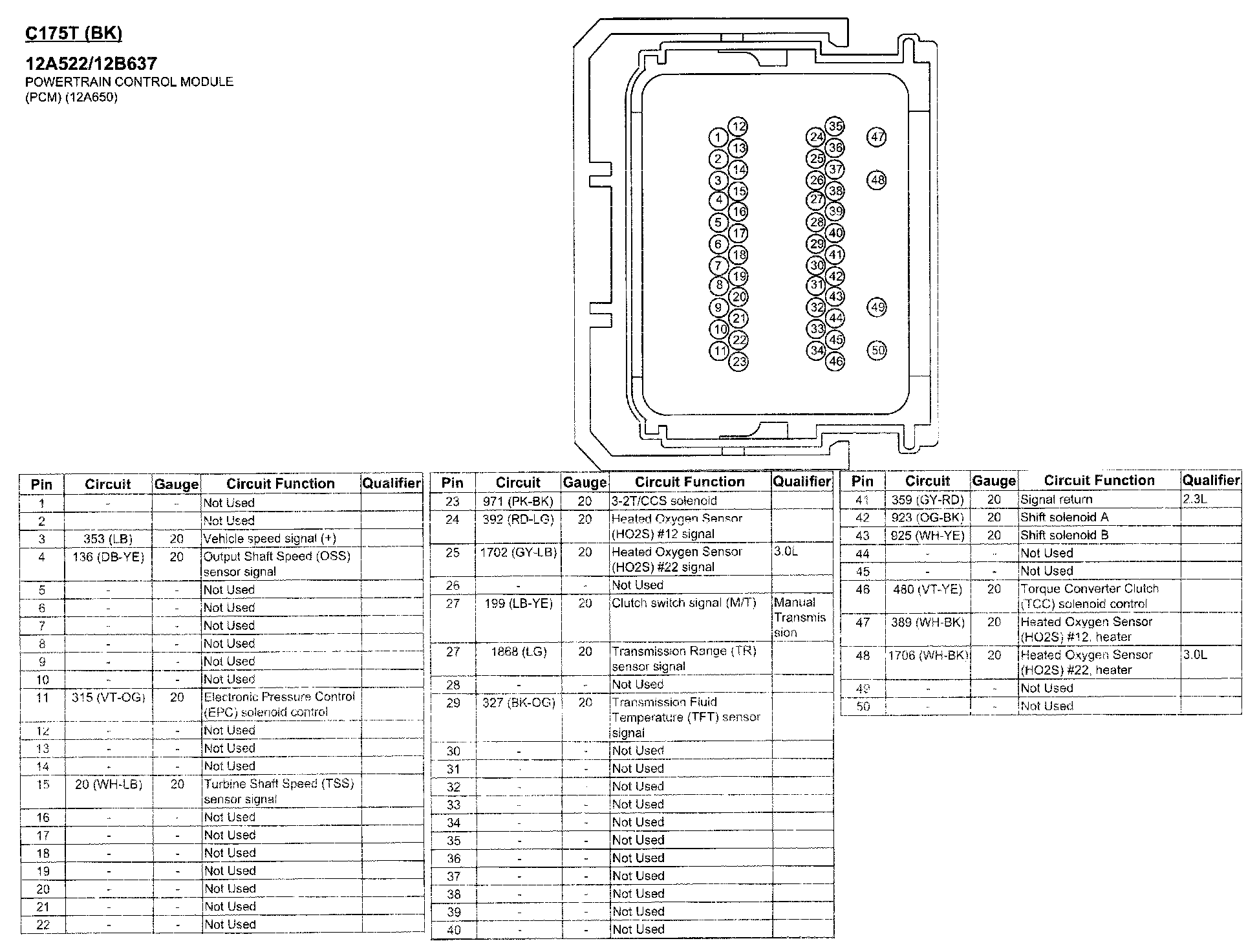

C175T:
