Accelerator Cable - 2.3L: Notes

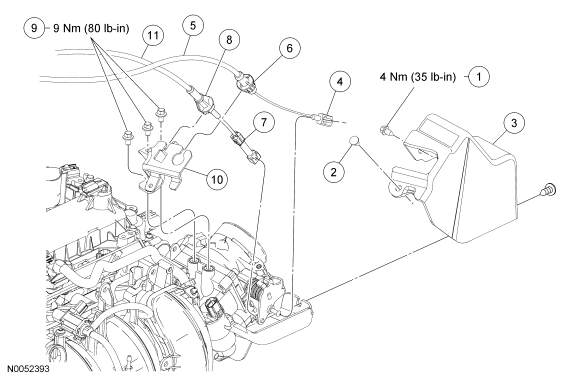

Fig 1: Exploded View Of Accelerator Cable - 2.3L (1 Of 2 - With Torque Specifications)
GF0025527Courtesy of FORD MOTOR CO.
Item Part Number Description
1 W702251 Accelerator control cover shield screw
2 - Pin-type retainer (part of 9E766) (2 required)
3 9E766 Accelerator control cover shield
4 - Accelerator cable-to-throttle body (part of 9A758)
5 9A758 Accelerator cable
6 - Accelerator cable-to-bracket grommet (part of 9A758)
7 - Speed control cable-to-throttle body (part of 9A825)
8 - Speed control cable-to-bracket grommet (part of 9A825)
9 W500210 Accelerator cable bracket bolts (3 required)
10 9677 Accelerator cable bracket
11 9A825 Speed control cable

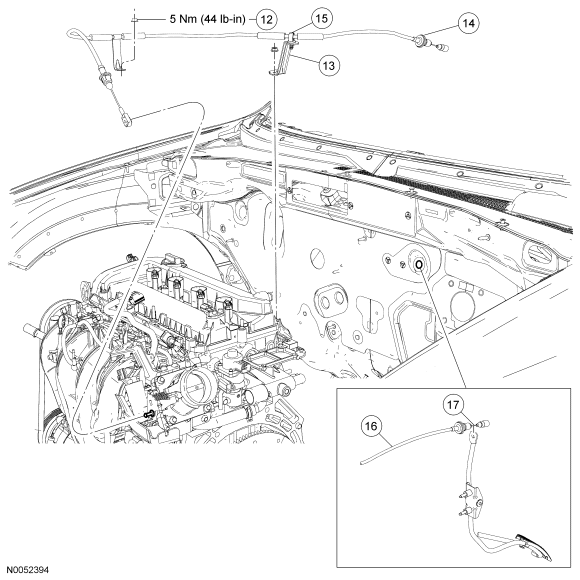

Fig 2: Exploded View Of Accelerator Cable - 2.3L (2 Of 2 - With Torque Specifications)
GF0025528Courtesy of FORD MOTOR CO.
Item Part Number Description
12 W520412 Accelerator cable bracket nut (2 required)
13 9E728 Accelerator cable bracket
14 - Accelerator cable grommet (part of 9A758)
15 - Accelerator cable pushpin retainer (part of 9A758)
16 9A758 Accelerator cable
17 - Accelerator cable to pedal (part of 9A758)
