Driver Seat Module Connector

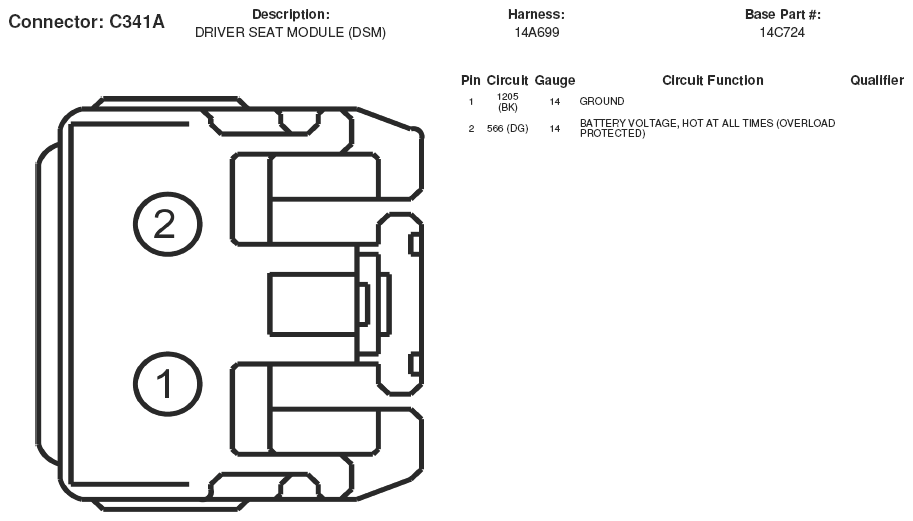

Fig 1: Driver Seat Module Connector End View (C341A)
G05168755Courtesy of FORD MOTOR CO.

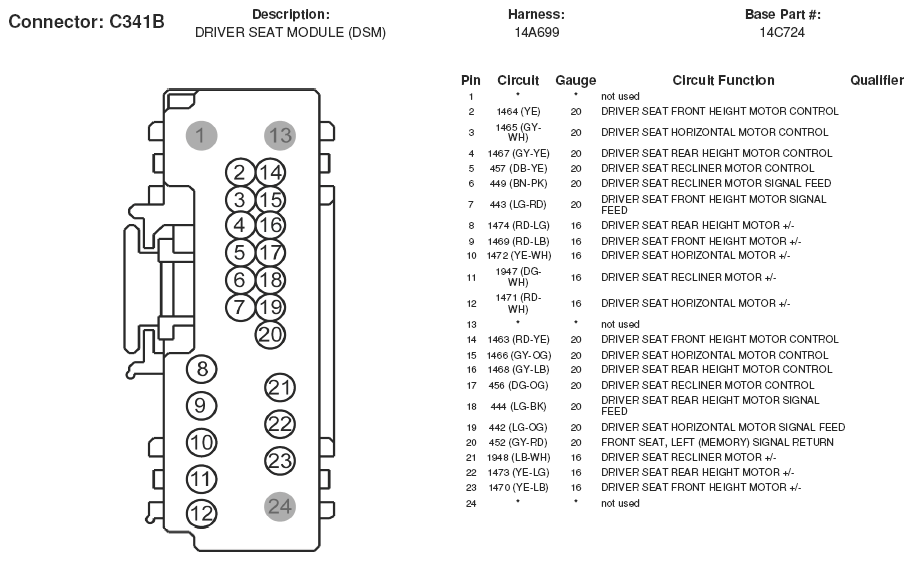

Fig 2: Driver Seat Module Connector End View (C341B)
G05168756Courtesy of FORD MOTOR CO.

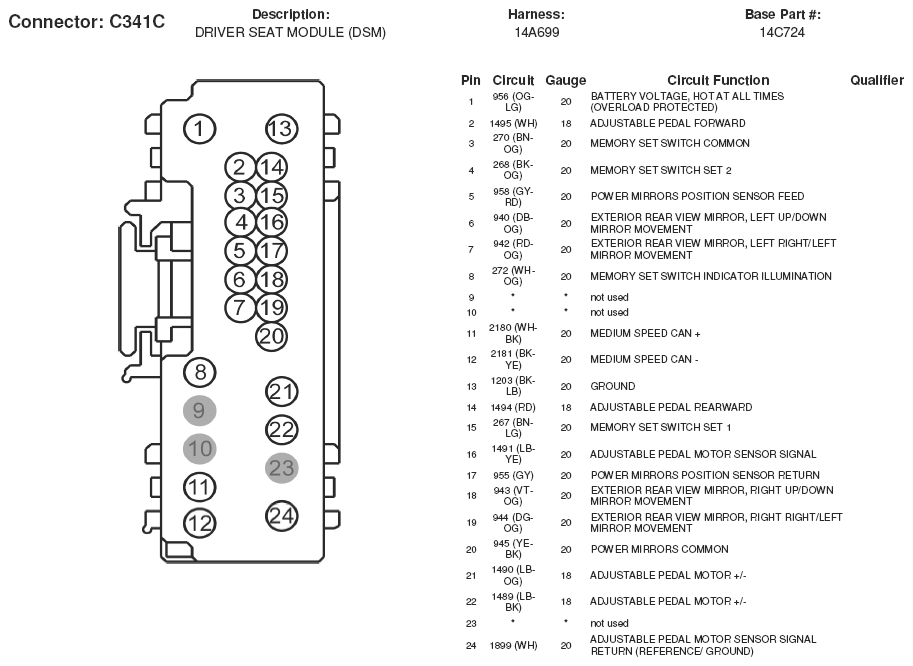

Fig 3: Driver Seat Module Connector End View (C341C)
G05168757Courtesy of FORD MOTOR CO.

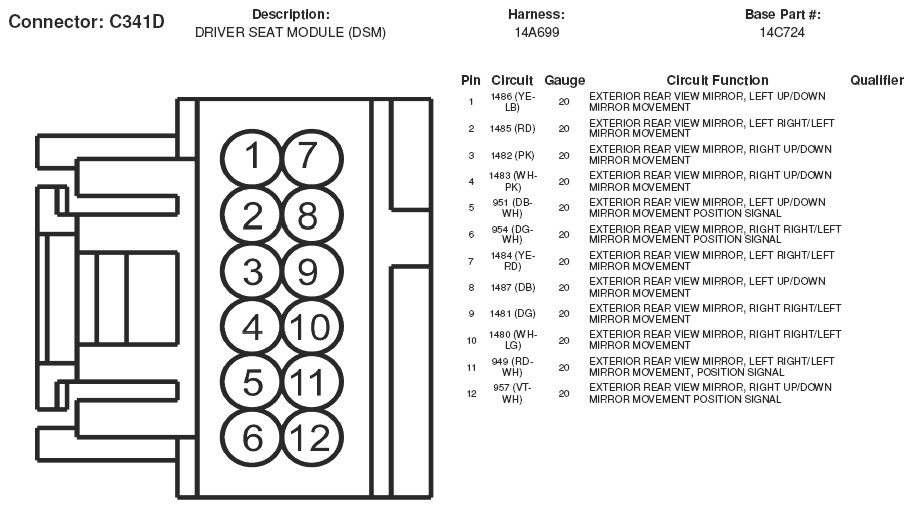

Fig 4: Driver Seat Module Connector End View (C341D)
G05168758Courtesy of FORD MOTOR CO.
