Digital Versatile Disc (DVD) Player: Notes

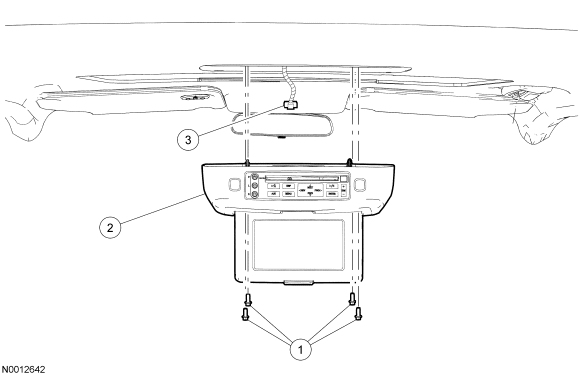

Fig 1: Exploded View Of Digital Versatile Disc (DVD) Player
GF0018200Courtesy of FORD MOTOR CO.
Item Part Number Description
1 W807122 DVD player screws (4 required)
2 10E947 DVD player
3 - DVD player electrical connector
