Exhaust Gas Recirculation (EGR) System Components - Exploded View

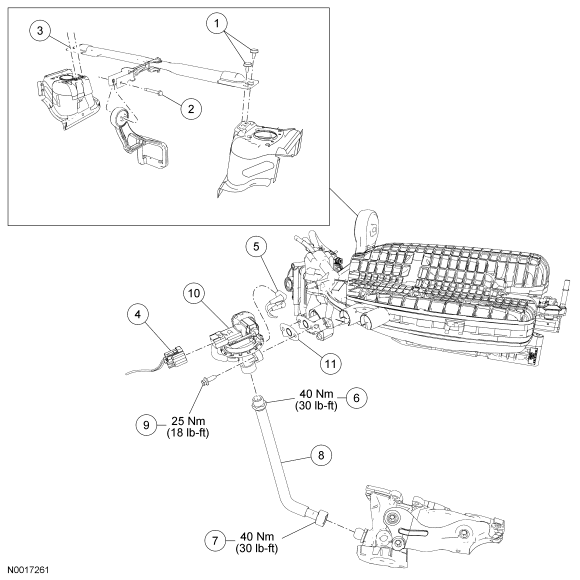

Fig 1: Exploded View Of Exhaust Gas Recirculation EGR System Components With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W705985	Transaxle roll restrictor brace bolts (4 required)
2	W506525	Transaxle roll restrictor bolt
3	6G053	Transaxle roll restrictor brace
4	14A464	Exhaust gas recirculation (EGR) system module electrical connector (part of 12B637)
5	-	EGR system module vacuum tube fitting (part of 9E498)
6	-	EGR system module tube upper fitting (part of 9D477)
7	-	EGR system module tube lower fitting (part of 9D477)
8	9D477	EGR system module tube
9	W701232	EGR system module bolt (2 required)
10	9D475	EGR system module
11	9D476	EGR system module gasket

1. For additional information, refer to the following procedures.
