Engine Mount - Anti-Roll: Notes
Material
| Item | Specification |
|---|---|
| Threadlock and Sealer TA-25 |
WSK-M2G351-A5 |
NOTE:

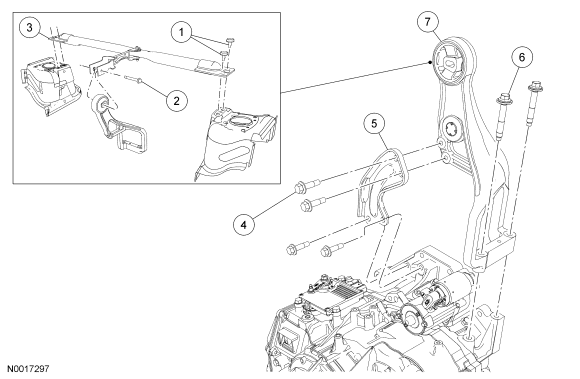

6 speed transaxle shown, CVT similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | W705985 | Roll restrictor cross brace-to-strut tower bolts (4 required) |
| 2 | W506525 | Roll restrictor cross brace-to-roll restrictor bolt |
| 3 | 6G053 | Roll restrictor cross brace |
| 4 | W711311 | Roll restrictor support bracket bolt (4 required) |
| 5 | 6G087 | Roll restrictor support bracket |
| 6 | W710524 | Roll restrictor bolt (2 required) |
| 7 | 6F055 | Roll restrictor |
