Valve Cover - LH: Notes
Material
| Item | Specification |
|---|---|
| Silicone Gasket and Sealant TA-30 |
WSE-M4G323-A4 |

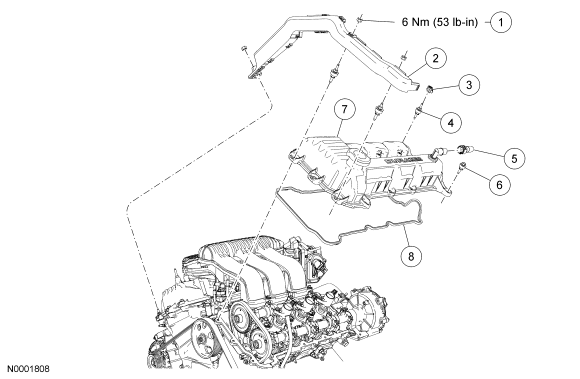

| Item | Part Number | Description |
|---|---|---|
| 1 | - | Wiring conduit-to-valve cover stud bolt nut (3 required) |
| 2 | 14A099 | Wiring conduit (part of 12B637) |
| 3 | - | Wiring retainer (3 required) (part of 9H589) |
| 4 | 6C519 | Valve cover stud bolt (8 required) |
| 5 | 6578 | Crankcase ventilation tube |
| 6 | 6C519 | Valve cover bolt (6 required) |
| 7 | 6A505 | Valve cover |
| 8 | 6A559 | Valve cover gasket |
