Valve Cover - RH: Notes

Material

Item Specification
Silicone Gasket and Sealant
TA-30		 WSE-M4G323-A4
Fig 1: Exploded View Of Right Valve Cover Components With Torque Specifications
GF0017012Courtesy of FORD MOTOR CO.
Item Part Number Description
1 W520111 Power steering reservoir nuts (2 required)
2 3R700 Power steering fluid reservoir
3 W505251 Power steering pressure (PSP) tube retainer bracket bolt
4 - PSP tube retainer bracket (part of 3F524)
5 W520111 Power steering fluid reservoir bracket nut
6 3490 Power steering fluid reservoir bracket
7 - Power steering fluid reservoir bracket stud bolt (3 required) (part of 6582)
8 - Wiring conduit nut (3 required)
9 - Wiring conduit (part of 12B637)
10 W655891 PSP tube retainer bracket bolt
11 - PSP tube retainer bracket (part of 3F524)
12 14A464 Positive crankcase ventilation (PCV) valve electrical connector (part of 12B637)
13 6K817 PCV tube

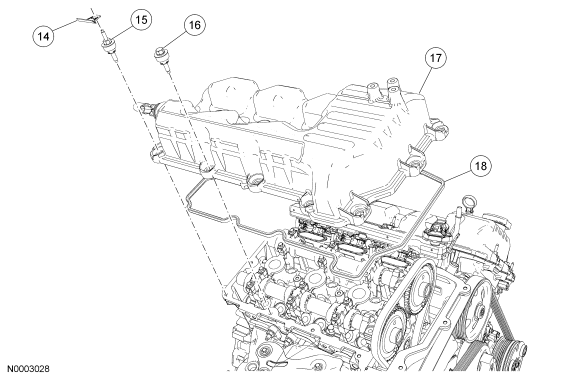

Fig 2: Exploded View Of Right Valve Cover With Torque Specifications
GF0017013Courtesy of FORD MOTOR CO.
Item Part Number Description
14 - Wiring retainer (2 required) (part of 12B637)
15 6C519 Valve cover stud bolt (5 required)
16 6C519 Valve cover bolt (9 required)
17 6582 Valve cover
18 6584 Valve cover gasket
