Receiver Drier: Notes

Material

Item Specification
PAG Refrigerant Compressor Oil (R-134a Systems)
YN-12-D		 WSH-M1C231-B

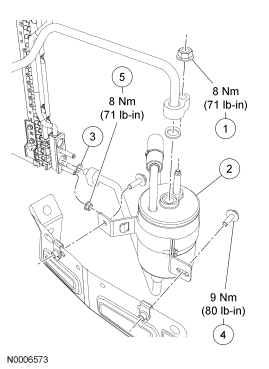

Fig 1: Exploded View Of Receiver Drier With Torque Specifications
GF0018082Courtesy of FORD MOTOR CO.
Item Part Number Description
1 W520413 Receiver/drier outlet fitting nut
2 19959 Receiver/drier
3 19E889 O-ring seal
4 W702434 Receiver/drier bracket bolt (2 required)
5 W520413 Condenser outlet fitting nut
