Deployable Steering Column Connector

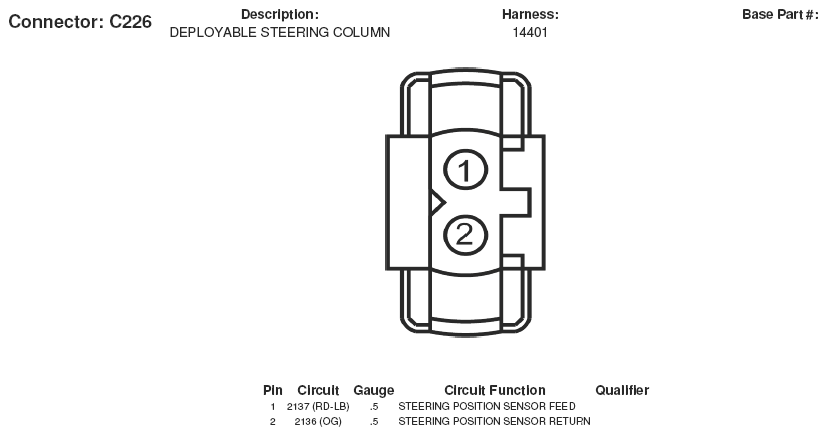

Fig 1: Deployable Steering Column Connector End View (C226)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
