Master Window Adjust Switch Connector

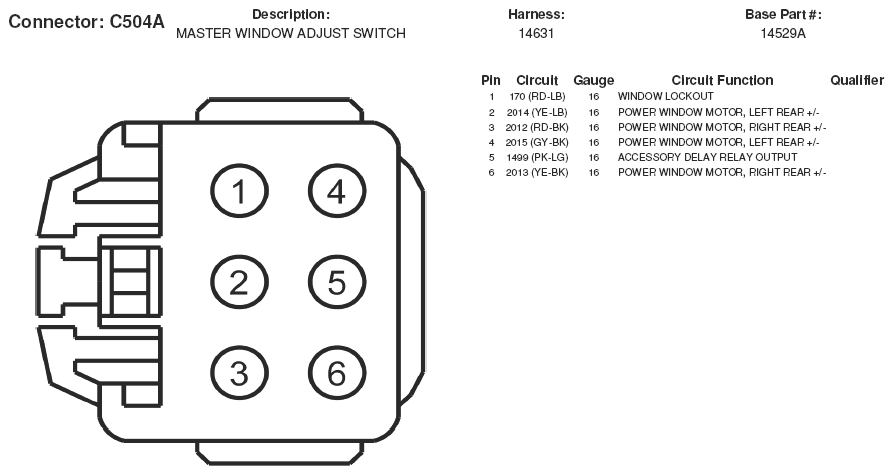

Fig 1: Master Window Adjust Switch Connector End View (C504A)
Courtesy of FORD MOTOR CO.

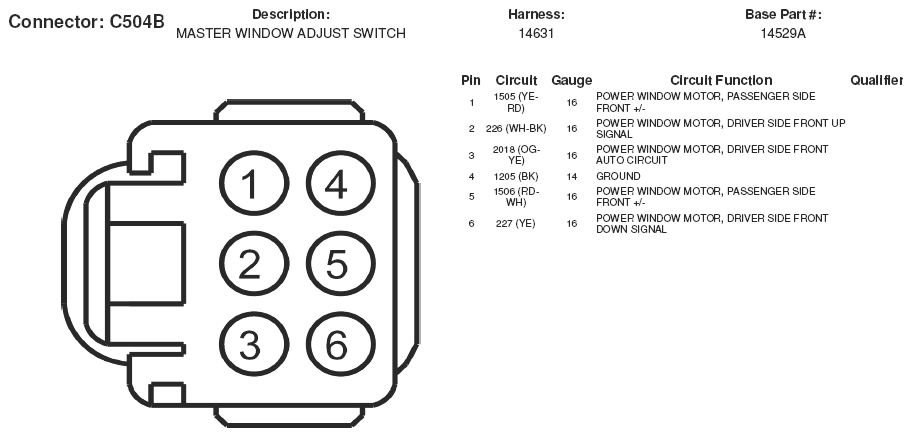

Fig 2: Master Window Adjust Switch Connector End View (C504B)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
