EGR System Module Connector

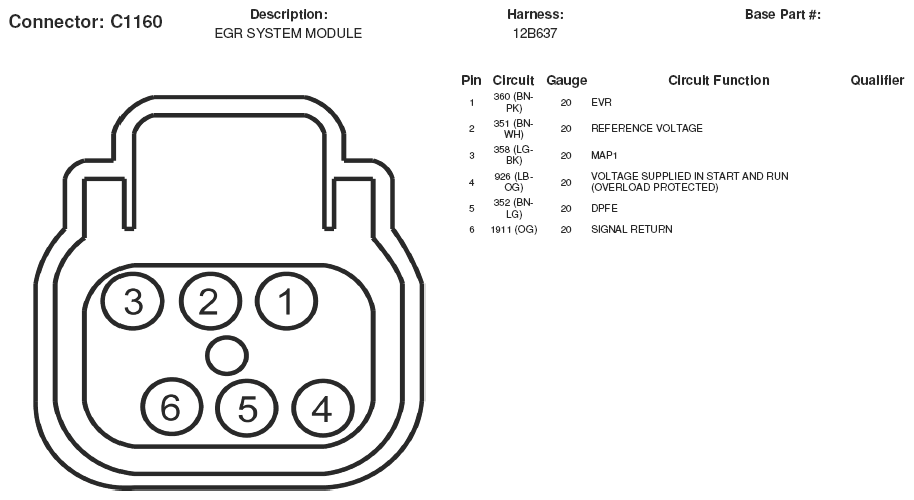

Fig 1: EGR System Module Connector End View (C1160)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
