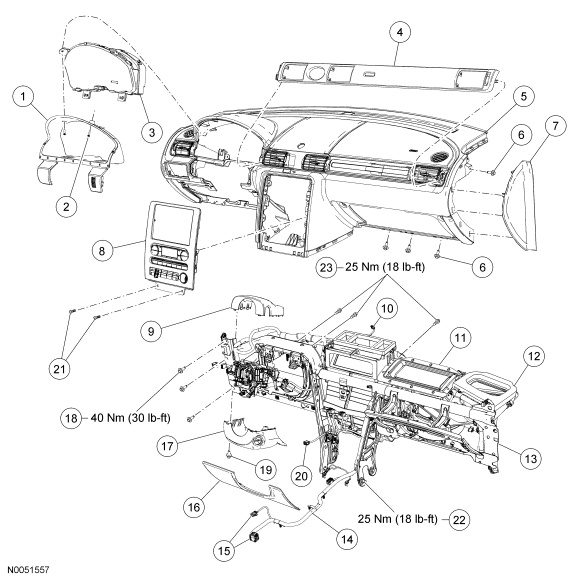

Instrument Panel - Exploded View
| Item | Part Number | Description |
|---|---|---|
| 1 | 54044D70-A | Instrument cluster finish panel |
| 2 | W706998 | Instrument cluster finish panel screw (2 required) |
| 3 | 10849 | Instrument cluster |
| 4 | 5404268 | Cross-vehicle panel |
| 5 | 7404304 | Instrument panel upper section |
| 6 | - | Instrument panel upper section screws (8 required) |
| 7 | 5404334 | Instrument panel end panel |
| 8 | - | Instrument panel center finish panel (part of 5404302) |
| 9 | 3530 | Upper steering column shroud |
| 10 | 14401 | PAD indicator electrical connector |
| 11 | - | Passenger side air bag |
| 12 | - | Heater core evaporator core housing |
| 13 | - | Cross-vehicle beam |
| 14 | 14401 | Main wiring harness |
| 15 | 14401 | Restraints control module (RCM) electrical connectors |
| 16 | 74044F08 | Steering column cover |
| 17 | 3K512 | Lower steering column shroud |
| 18 | W710259 | Cowl side bolt (6 required) |
| 19 | - | Steering column shroud screw (3 required) |
| 20 | 14401 | Powerpoint electrical connector |
| 21 | W704831 | Instrument panel center finish panel screws (2 required) |
| 22 | W709268 | Instrument panel tunnel brace bolt (4 required) |
| 23 | W709178 | Instrument panel cowl top bolts (3 required) |

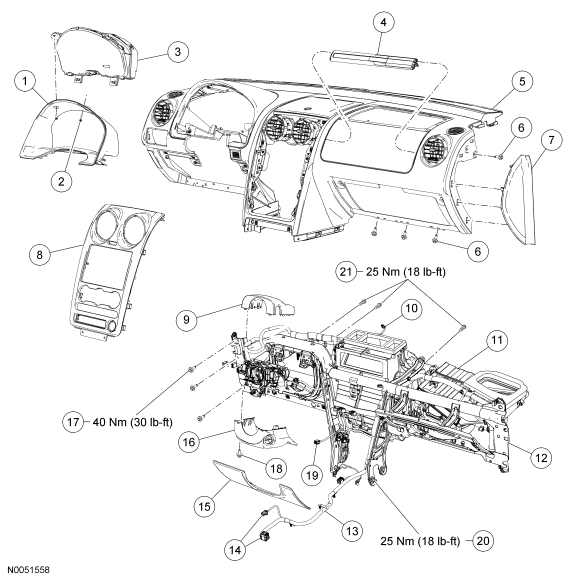

| Item | Part Number | Description |
|---|---|---|
| 1 | 74044D70-A | Instrument cluster finish panel |
| 2 | W706998 | Instrument cluster finish panel screw (2 required) |
| 3 | 10849 | Instrument cluster |
| 4 | - | Passenger assist handle |
| 5 | 7404304 | Instrument panel upper section |
| 6 | - | Instrument panel upper section screws (8 required) |
| 7 | 7404334 | Instrument panel end panel |
| 8 | - | Instrument panel center finish panel (part of 5404302) |
| 9 | 3530 | Upper steering column shroud |
| 10 | 14401 | PAD indicator electrical connector |
| 11 | - | Heater core evaporator core housing |
| 12 | - | Cross-vehicle beam |
| 13 | 14401 | Main wiring harness |
| 14 | 14401 | Restraints control module (RCM) electrical connectors |
| 15 | 74044F08 | Steering column cover |
| 16 | 3K512 | Lower steering column shroud |
| 17 | W710259 | Cowl side bolt (6 required) |
| 18 | - | Steering column shroud screw (3 required) |
| 19 | 14401 | Powerpoint electrical connector |
| 20 | W709268 | Instrument panel tunnel brace bolt (4 required) |
| 21 | W709178 | Instrument panel cowl top bolts (3 required) |
- For additional information, refer to the following procedures.
