Engine Support Insulators - LH: Notes

Special Tools

Illustration Tool Name Tool Number
GF0000161
 3-Bar Engine Support Kit 303-F072
GF0016982
 Lifting Brackets, Engine 134-00243 or equivalent

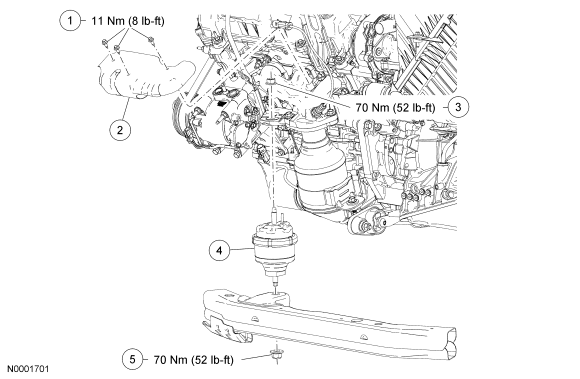

Fig 1: Exploded View Of Left Engine Support Insulators With Torque Specifications
GF0017075Courtesy of FORD MOTOR CO.
Item Part Number Description
1 W707130 LH exhaust manifold heat shield bolts (3 required)
2 9A462 LH exhaust manifold heat shield
3 W711311 LH engine support insulator upper nut
4 6038 LH engine support insulator
5 N802978 LH engine support insulator lower nut
