Speed Control Actuator: Notes

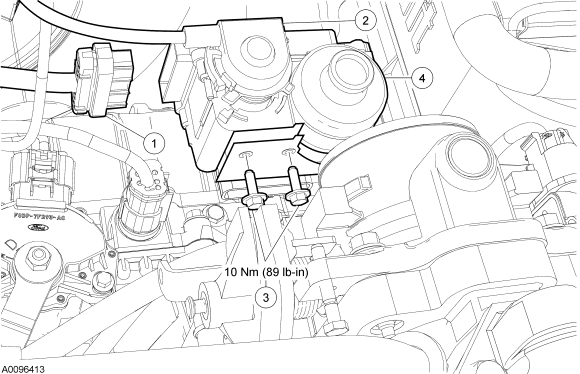

Fig 1: Exploded View Of Speed Control Actuator With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Speed control actuator electrical connector (part of 14398)
2	9A825	Speed control cable (actuator end)
3	W800531-S424	Speed control actuator bolts (2 required)
4	9C735	Speed control actuator
