Antenna Isolator Module: Notes

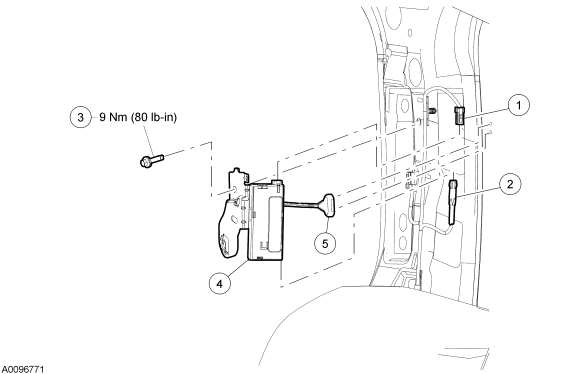

Fig 1: Exploded View Of Antenna Isolator Module With Torque Specifications
GF0033865Courtesy of FORD MOTOR CO.
Item Part Number Description
1 14A005 Electrical connector
2 14A005 Antenna lead-in cable connector
3 W705572 Antenna isolator module bolt
4 150200 Antenna isolator module
5 - Antenna isolator module connector (part of 150200)
