Oil Cooler: Notes
Material
| Item | Specification |
|---|---|
| Motorcraft SAE 5W-20 Premium Synthetic Blend Motor Oil XO-5W20-QSP (US); Motorcraft SAE 5W-20 Super Premium Motor Oil CXO-5W20-LSP12 (Canada); or equivalent |
WSS-M2C930-A |

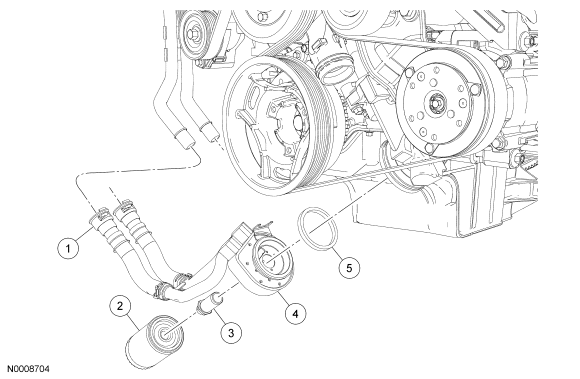

| Item | Part Number | Description |
|---|---|---|
| 1 | 6K834 | Quick disconnect oil cooler coolant tube (2 required) |
| 2 | 6714 | Oil filter |
| 3 | - | Oil cooler mounting bolt (part of 6A642) |
| 4 | 6A642 | Oil cooler and tube assembly |
| 5 | - | Oil cooler seal (part of 6A642) |
