Mass Air Flow (MAF) Sensor: Notes

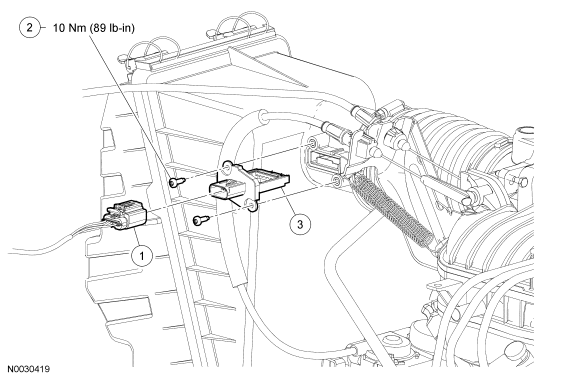

Fig 1: Exploded View Of Mass Air Flow MAF Sensor With Torque Specifications
GF0033271Courtesy of FORD MOTOR CO.
Item Part Number Description
1 14A464 Mass air flow (MAF) sensor electrical connector (part of 12B637)
2 W709287-S MAF sensor screw (2 required)
3 12B605 MAF sensor
