Throttle Position (TP) Sensor: Notes

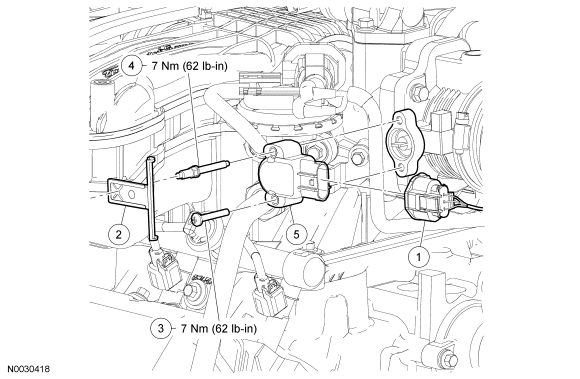

Fig 1: Exploded View Of Throttle Position TP Sensor With Torque Specifications
GF0033269Courtesy of FORD MOTOR CO.
Item Part Number Description
1 14A464 Throttle position (TP) sensor electrical connector (part of 12B637)
2 13A506 Harness retainer (part of 12B637)
3 N603257-S TP sensor bolt
4 N709705-S TP sensor stud bolt
5 9B989 TP sensor
