Accelerator Pedal - Fixed: Notes

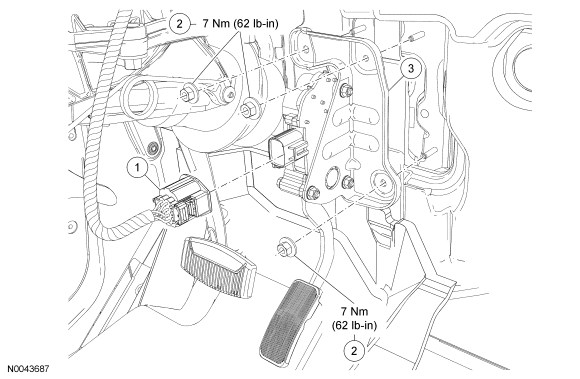

Fig 1: Exploded View Of Accelerator Pedal - Fixed With Torque Specifications
GF0027716Courtesy of FORD MOTOR CO.
Item Part Number Description
1 - Accelerator pedal electrical connector (part of 14401)
2 90907 Accelerator pedal assembly nuts (3 required)
3 9F836 Accelerator pedal assembly
