Left Front Side Lamp Connector

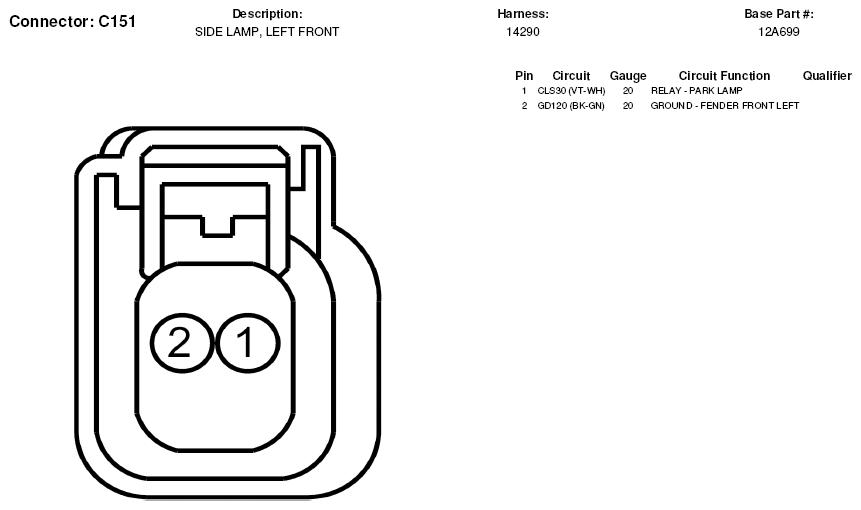

Fig 1: Left Front Side Lamp Connector End View (C151)
G05603261

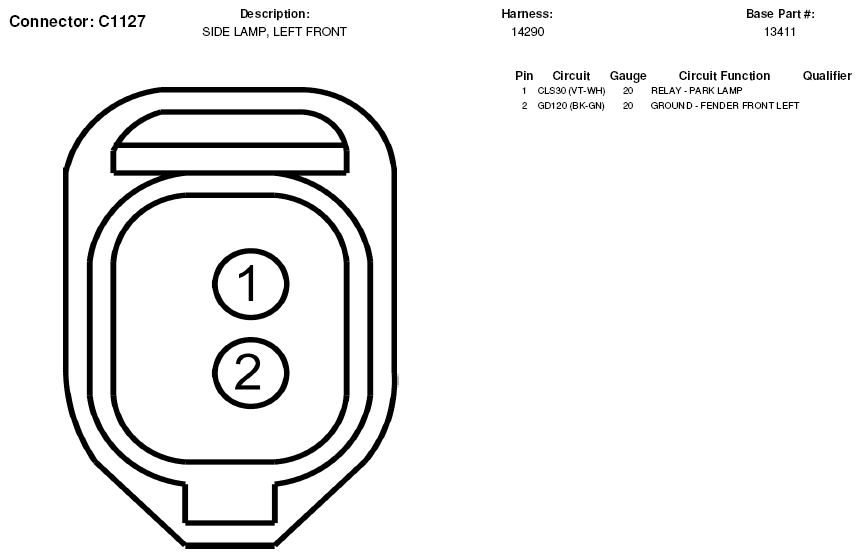

Fig 2: Left Front Side Lamp Connector End View (C1127)
G05603437
