Oil Pressure Switch Connector
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Oil Pressure Switch Connector

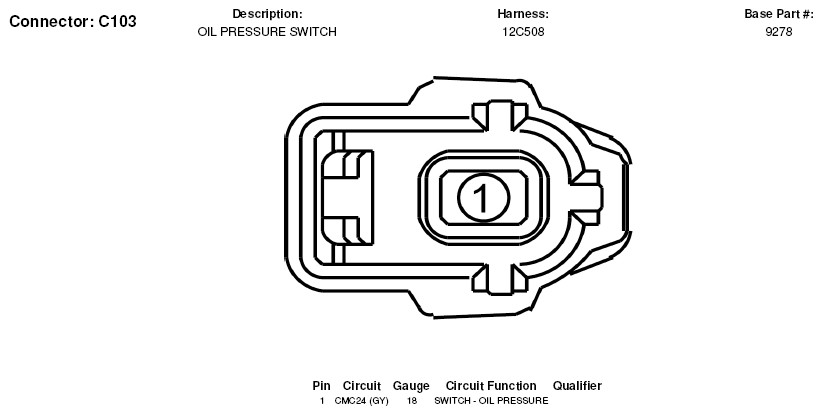

Fig 1: Oil Pressure Switch Connector End View (C103)
