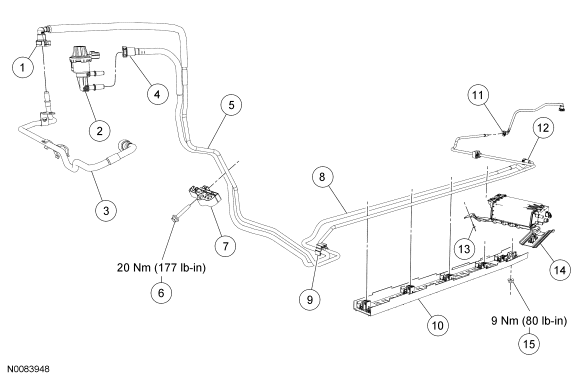

| 1 |
- |
Fuel supply tube-to-fuel rail jumper tube quick connect coupling (part of 9J279) |
| 2 |
9G641 |
Evaporative Emission (EVAP) canister purge valve |
| 3 |
9J280 |
Fuel rail jumper tube |
| 4 |
- |
Fuel vapor tube-to-EVAP canister purge valve quick connect coupling (part of 9J279) |
| 5 |
9J279 |
Fuel supply tube |
| 6 |
W711320 |
Fuel tube bundle retainer bolt |
| 7 |
- |
Fuel tube bundle retainer (part of 9J279) |
| 8 |
9J279 |
Fuel vapor tube |
| 9 |
- |
Fuel tube bundle separator (2 required) (part of 9J279) |
| 10 |
9G700 |
Fuel tube bundle shield |
| 11 |
- |
Fuel tank jumper tube-to-fuel tube quick connect coupling (part of 9J337) |
| 12 |
- |
Fuel vapor tube-to-EVAP canister quick connect coupling (part of 9J279) |
| 13 |
W703545 |
EVAP canister rivet |
| 14 |
- |
EVAP canister shield (part of 9E857) |
| 15 |
W711059 |
Fuel tube bundle shield nut |
