Generator Connectors

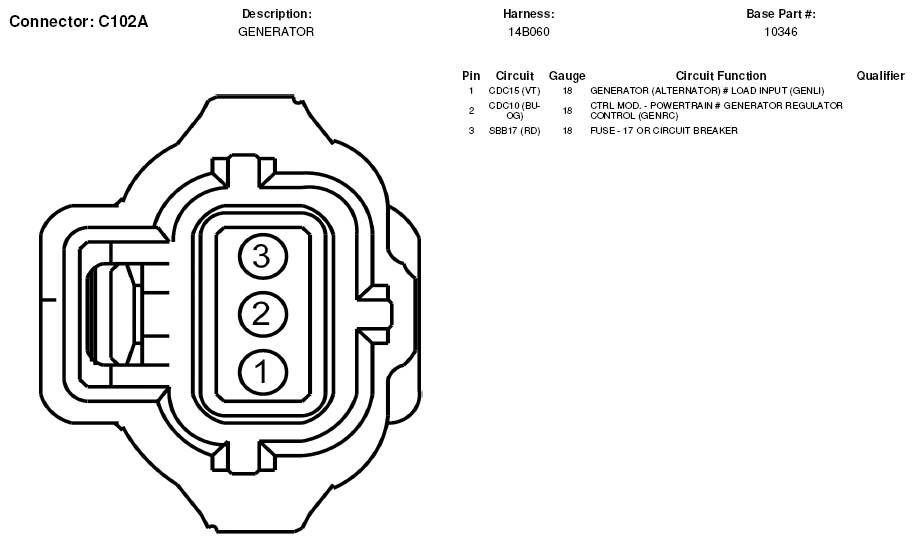

Fig 1: Generator Connector End View (C102A)

G05603234

Fig 2: Generator Connector End View (C102B)

G05603235
