Overhead Console Connectors

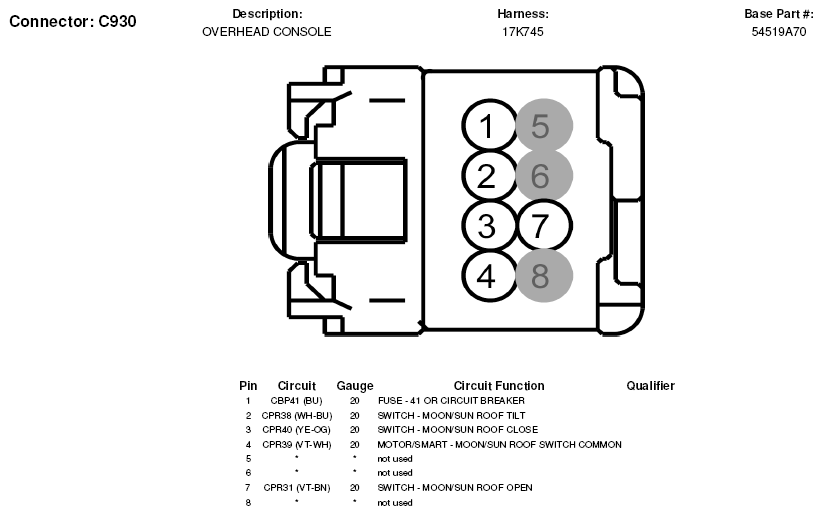

Fig 1: Overhead Console Connector End View (C930)

G05603412

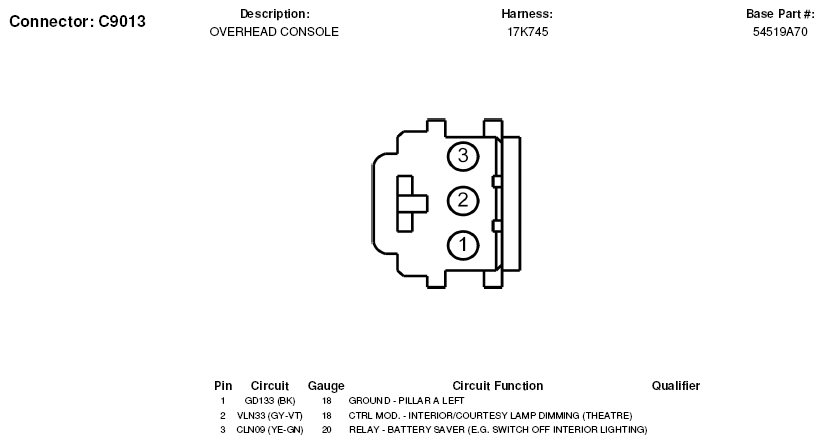

Fig 2: Overhead Console Connector End View (C9013)

G05603554
